67D-R3 Series
YDS
Features
15 watt package.
2:1 wide input voltage.
100% burned in.
High efficiency to 86%.
Customized solutions available.
Remote control:on/off.
UL94V-0 package material.
Operating temperature:-40°C to +85°C.
3 years warranty.
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | Capacitor Load | |
|---|---|---|---|---|---|---|---|
| Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | uF Max | |
| 67D-12S03R3 | 9-18 | 70 | 1310 | 3.3 | 4000 | 84 | 1500 |
| 67D-12S05R3 | 9-18 | 70 | 1453 | 5 | 3000 | 86 | 1500 |
| 67D-12S12R3 | 9-18 | 30 | 1453 | 12 | 1250 | 86 | 120 |
| 67D-12S15R3 | 9-18 | 30 | 1453 | 15 | 1000 | 86 | 120 |
| 67D-12D05R3 | 9-18 | 70 | 1488 | ±5 | ±1500 | 84 | ±1000 |
| 67D-12D12R3 | 9-18 | 30 | 1454 | ±12 | ±625 | 86 | ±120 |
| 67D-12D15R3 | 9-18 | 30 | 1454 | ±15 | ±500 | 86 | ±120 |
| 67D-24S03R3 | 18-36 | 70 | 655 | 3.3 | 4000 | 84 | 3300 |
| 67D-24S05R3 | 18-36 | 70 | 727 | 5 | 3000 | 86 | 3300 |
| 67D-24S12R3 | 18-36 | 30 | 727 | 12 | 1250 | 86 | 330 |
| 67D-24S15R3 | 18-36 | 30 | 727 | 15 | 1000 | 86 | 330 |
| 67D-24D05R3 | 18-36 | 70 | 744 | ±5 | ±1500 | 84 | ±2000 |
| 67D-24D12R3 | 18-36 | 30 | 727 | ±12 | ± 625 | 86 | ±330 |
| 67D-24D15R3 | 18-36 | 30 | 727 | ±15 | ± 500 | 86 | ±330 |
| 67D-48S03R3 | 36-75 | 40 | 327 | 3.3 | 4000 | 84 | 5600 |
| 67D-48S05R3 | 36-75 | 40 | 363 | 5 | 3000 | 86 | 5600 |
| 67D-48S12R3 | 36-75 | 30 | 363 | 12 | 1250 | 86 | 680 |
| 67D-48S15R3 | 36-75 | 30 | 363 | 15 | 1000 | 86 | 680 |
| 67D-48D05R3 | 36-75 | 40 | 372 | ± 5 | ±1500 | 84 | ±3300 |
| 67D-48D12R3 | 36-75 | 30 | 368 | ±12 | ±625 | 85 | ±220 |
| 67D-48D15R3 | 36-75 | 30 | 368 | ±15 | ±500 | 85 | ± 220 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | Pi TYPE |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ± 2 | % | ||
| Short Circuit Protection | Hiccup, automatic recovery | ||||
| Line Regulation | ± 0.5 | % | |||
| Load Regulation | Single Dual (Balance Load) | ±0.5 ±1.0 | % | ||
| Cross Regulation | Dual (25% to 100% Load) | ±5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Output >15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 300 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1500 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 300 | KHz | |||
| Operating Temperature | With derating | -40 | +85 | ℃ | |
| Storage Temperature | -55 | +125 | ℃ | ||
| Humidity | Non Condensing | 5 | 95 | % | |
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel coated copper with no-conductive base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 2.318x106 | Hours | ||
| Weight | 32.6 | g | |||

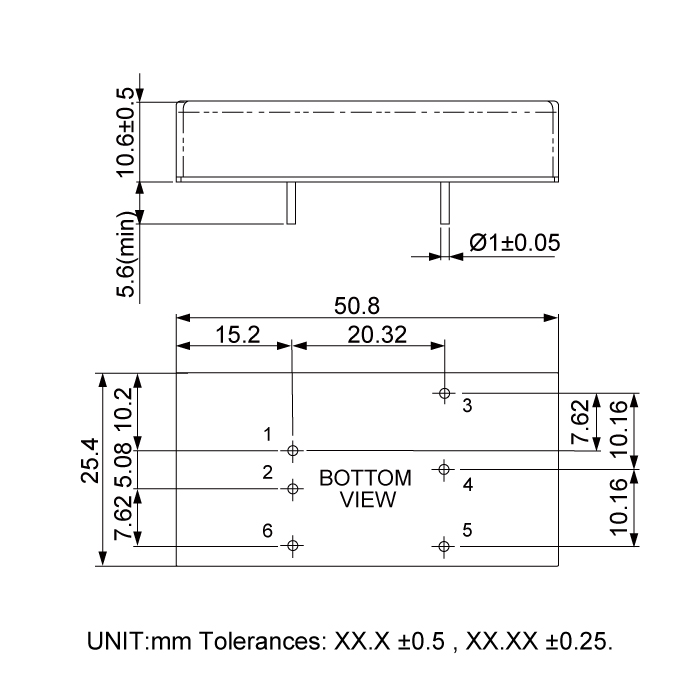

| Dimensions | 50.8 x 25.4 x 10.6 | mm | |||
Files Download
67D-R3-Series.pdf
