66D Series
YDS

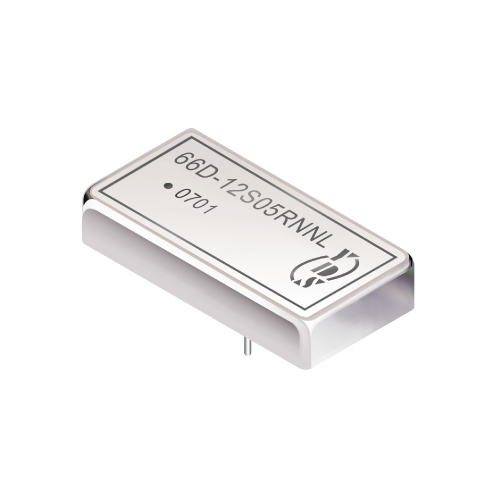

5W 2'' x 1'' Size 1.5KV Isolation 2:1 Wide Input Range DC/DC Power Conversion
2:1 wide input voltage.
Efficiency to 80%.
1500Vdc isolation.
MTBF:>1,500,000 hrs.
Operating temperature:-40°C to +85°C.
| Part Number | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %TYP | |
| 66D-12S05RNNL | 9-18 | 5 | 1000 | 75 |
| 66D-12S12RNNL | 9-18 | 12 | 470 | 80 |
| 66D-12S15RNNL | 9-18 | 15 | 400 | 80 |
| 66D-12D12RNNL | 9-18 | ±12 | ±230 | 80 |
| 66D-12D15RNNL | 9-18 | ±15 | ±190 | 80 |
| 66D-24S05RNNL | 18-36 | 5 | 1000 | 75 |
| 66D-24S12RNNL | 18-36 | 12 | 470 | 80 |
| 66D-24S15RNNL | 18-36 | 15 | 400 | 80 |
| 66D-24D12RNNL | 18-36 | ±12 | ±230 | 80 |
| 66D-24D15RNNL | 18-36 | ±15 | ±190 | 80 |
| 66D-48S05RNNL | 36-72 | 5 | 1000 | 80 |
| 66D-48S12RNNL | 36-72 | 12 | 470 | 80 |
| 66D-48S15RNNL | 36-72 | 15 | 400 | 80 |
| 66D-48D12RNNL | 36-72 | ±12 | ±230 | 80 |
| 66D-48D15RNNL | 36-72 | ±15 | ±190 | 80 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ±2 | % | |||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | ±0.5 | % | |||
| Load Regulation | Single | ±0.5 | % | ||
| Load Regulation | Dual | ±2.0 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 200 | KHz | |||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | Nickel Coated With Non-Conductive Base | ||||
| Weight | 36.5 | g | |||

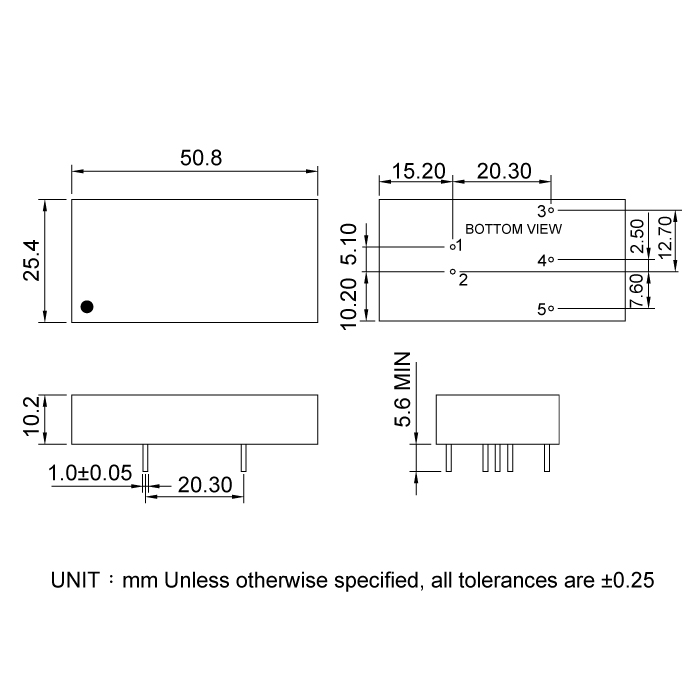

| Dimensions | 50.8 x 25.4 x 10.2 | mm | |||
Files Download
66D-Series.pdf
