61DW-R3 Series
YDS
10W 2'' x 1'' 1.5KV Isolation Wide Input 4:1 Voltage Range DC/DC Converter
10 watt package.
4:1 wide input voltage.
100% burned in.
High efficiency to 88%.
Customized solutions available.
Remote control:on/off.
UL94V-0 package material.
Operating temperature:-40°C to +87°C.
3 years warranty.
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | Capacitor Load | |
|---|---|---|---|---|---|---|---|
| Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | uF Max | |
| 61DW-24S03R3 | 9-36 | 60 | 497 | 3.3 | 3000 | 83 | 3300 |
| 61DW-24S05R3 | 9-36 | 60 | 484 | 5 | 2000 | 86 | 3300 |
| 61DW-24S12R3 | 9-36 | 40 | 474 | 12 | 835 | 88 | 330 |
| 61DW-24S15R3 | 9-36 | 20 | 483 | 15 | 665 | 86 | 330 |
| 61DW-24D05R3 | 9-36 | 70 | 502 | ±5 | ±1000 | 83 | ±2000 |
| 61DW-24D12R3 | 9-36 | 40 | 486 | ±12 | ±418 | 86 | ±330 |
| 61DW-24D15R3 | 9-36 | 40 | 484 | ±15 | ±333 | 86 | ±330 |
| 61DW-48S03R3 | 18-75 | 30 | 248 | 3.3 | 3000 | 83 | 5600 |
| 61DW-48S05R3 | 18-75 | 30 | 245 | 5 | 2000 | 85 | 5600 |
| 61DW-48S12R3 | 18-75 | 30 | 243 | 12 | 835 | 86 | 680 |
| 61DW-48S15R3 | 18-75 | 30 | 242 | 15 | 665 | 86 | 680 |
| 61DW-48D05R3 | 18-75 | 30 | 251 | ±5 | ±1000 | 83 | ±3300 |
| 61DW-48D12R3 | 18-75 | 30 | 243 | ±12 | ±418 | 86 | ±220 |
| 61DW-48D15R3 | 18-75 | 30 | 242 | ±15 | ±333 | 86 | ±220 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 4:1 | ||||
| Filter | Pi TYPE |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Full load@Vin(nom.) | ±2 | % | ||
| Short Circuit Protection | Hiccup, automatic recovery | ||||
| Line Regulation | ±0.5 | % | |||
| Load Regulation | Single Dual (Balance Load) | ±0.5 ±1.0 | % | ||
| Cross Regulation | Dual (25% to 100% Load) | ±5 | % | ||
| Ripple & Noise | Output:3-15V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Output >15V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | |||
| Transient response setting time | 25% load step change | 300 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Voltage | 1500 | Vdc | |||
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 300 | KHz | |||
| Operating Temperature | With derating | -40 | +87 | ℃ | |
| Storage Temperature | -55 | +125 | ℃ | ||
| Humidity | Non Condensing | 5 | 95 | % | |
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Nickel coated copper with no-conductive base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 3.342x106 | Hours | ||
| Weight | 32.6 | g | |||

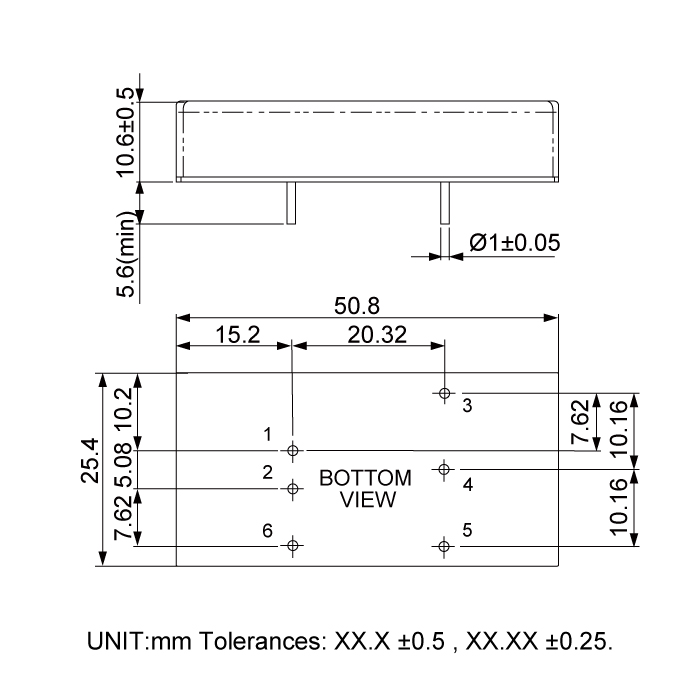

| Dimensions | 50.8 x 25.4 x 10.6 | mm | |||
Files Download
61DW-R3-Series.pdf
