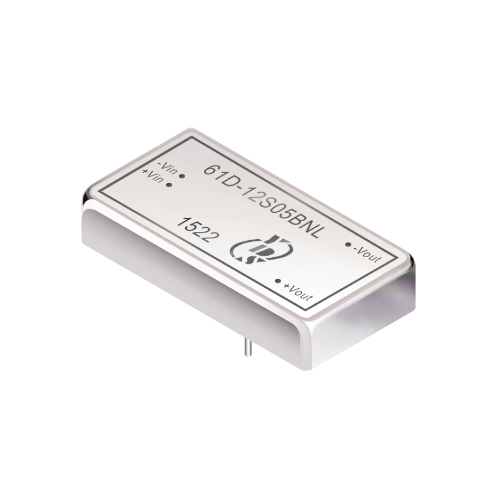

61D-BNL Series
YDS
10W 2'' x 1'' 1.5KV Isolation 2:1 Wide Input DC to DC Power Conversion
10 watt package.
2:1 wide input voltage.
100% burned in.
High efficiency to 82%.
Customized solutions available.
UL94V-0 package material.
Operating temperature:-40°C to +87°C.
3 years warranty.
| Part Number | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | Capacitor Load | |
|---|---|---|---|---|---|---|---|
| Vdc | No-Load (mA TYP) | Full Load (mA TYP) | Vdc | Full Load (mA) | %TYP | uF TYP | |
| 61D-12S03BNL | 9-18 | 30 | 733 | 3.3 | 2000 | 75 | 2200 |
| 61D-12S05BNL | 9-18 | 30 | 1054 | 5 | 2000 | 79 | 2200 |
| 61D-12S12BNL | 9-18 | 30 | 1041 | 12 | 833 | 80 | 1000 |
| 61D-12S15BNL | 9-18 | 30 | 1027 | 15 | 666 | 81 | 470 |
| 61D-12S24BNL | 9-18 | 30 | 1014 | 24 | 416 | 82 | 330 |
| 61D-12D05BNL | 9-18 | 30 | 1054 | ±5 | ±1000 | 79 | ±1000 |
| 61D-12D12BNL | 9-18 | 30 | 1027 | ±12 | ±416 | 81 | ±470 |
| 61D-12D15BNL | 9-18 | 30 | 1014 | ±15 | ±333 | 82 | ±330 |
| 61D-12D24BNL | 9-18 | 30 | 1014 | ±24 | ±208 | 82 | ±220 |
| 61D-24S03BNL | 18-36 | 25 | 366 | 3.3 | 2000 | 75 | 2200 |
| 61D-24S05BNL | 18-36 | 25 | 527 | 5 | 2000 | 79 | 2200 |
| 61D-24S12BNL | 18-36 | 25 | 514 | 12 | 833 | 81 | 680 |
| 61D-24S15BNL | 18-36 | 25 | 507 | 15 | 666 | 82 | 470 |
| 61D-24S24BNL | 18-36 | 25 | 507 | 24 | 416 | 82 | 470 |
| 61D-24D05BNL | 18-36 | 25 | 527 | ±5 | ±1000 | 79 | ±1000 |
| 61D-24D12BNL | 18-36 | 25 | 514 | ±12 | ±416 | 81 | ±470 |
| 61D-24D15BNL | 18-36 | 25 | 514 | ±15 | ±333 | 81 | ±330 |
| 61D-24D24BNL | 18-36 | 25 | 507 | ±24 | ±208 | 82 | ±220 |
| 61D-48S03BNL | 36-72 | 20 | 183 | 3.3 | 2000 | 75 | 2200 |
| 61D-48S05BNL | 36-72 | 20 | 263 | 5 | 2000 | 79 | 2200 |
| 61D-48S12BNL | 36-72 | 20 | 257 | 12 | 833 | 81 | 680 |
| 61D-48S15BNL | 36-72 | 20 | 257 | 15 | 666 | 81 | 470 |
| 61D-48S24BNL | 36-72 | 20 | 253 | 24 | 416 | 82 | 330 |
| 61D-48D05BNL | 36-72 | 20 | 263 | ±5 | ±1000 | 79 | ±1000 |
| 61D-48D12BNL | 36-72 | 20 | 253 | ±12 | ±416 | 82 | ±470 |
| 61D-48D15BNL | 36-72 | 20 | 253 | ±15 | ±333 | 82 | ±330 |
| 61D-48D24BNL | 36-72 | 20 | 253 | ±24 | ±208 | 82 | ±220 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | 2:1 | ||||
| Filter | Pi TYPE |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | ±2 | % | |||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | ±0.5 | % | |||
| Load Regulation | Single (25% to 100%) | ±0.5 | % | ||
| Load Regulation | Dual | ±2.0 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 25% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | 200 | KHz | |||
| Operating Temperature | -40 | +87 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Natural Convection (20LFM) | ||||
| Case Material | Copper | ||||
| Weight | 36.5 | g | |||

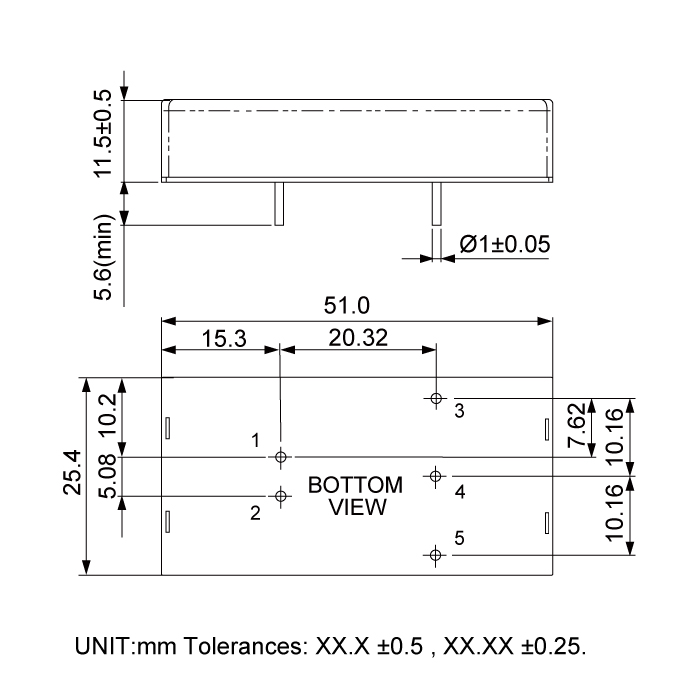

| Dimensions | 51.0 x 25.4 x 11.5 | mm | |||
| Potting Material | Silicone(UL94V-0 rated) | ||||
| Radiated Emissions | EN55022 | CLASS A | |||
| FCC 47 CFR Part 15 subpart A | CLASS A | ||||
Files Download
61D-BNL-Series.pdf
