YNB60 Series
YDS
60W 2'' x 1'' Size 1.6KV Isolation 4:1 Wide Input DC/DC Power Conversion
60W DIL Package.
4:1 Wide Input Voltage Range.
High Efficiency Up to 92%.
1600Vdc isolation.
Regulated Output Types.
DIL package.
Protection for short circuit and over voltage.
Operating Temperature: -40℃ to +76℃.
UL/cUL/IEC/EN 62368-1 approved, CB-Report, CE Marking.
EMC standard of EMI EN55032:2015 approved.
EMC standard of EMS EN55035:2017 approved.
EMC standard of Canadian ICES-003 issue7(2020) approved.
EMC standard of 47CFR FCC Part 15 subpart B approved.
| Part Number | Input Voltage Range | Input Current | Output Voltage | Output Current | Efficiency | Maximum Capacitor Load | |
|---|---|---|---|---|---|---|---|
| No-Load | Full Load | ||||||
| Vdc | mA (typ) | mA (typ) | Vdc | mA (typ) | % (typ) | uF | |
| YNB60-24S05 | 9-36 | 15 | 2747 | 5 | 12000 | 91 | 20400 |
| YNB60-24S12 | 9-36 | 15 | 2717 | 12 | 5000 | 92 | 3600 |
| YNB60-24S15 | 9-36 | 15 | 2717 | 15 | 4000 | 92 | 2400 |
| YNB60-24S24 | 9-36 | 15 | 2747 | 24 | 2500 | 91 | 900 |
| YNB60-48S05 | 18-75 | 10 | 1374 | 5 | 12000 | 91 | 20400 |
| YNB60-48S12 | 18-75 | 10 | 1359 | 12 | 5000 | 92 | 3600 |
| YNB60-48S15 | 18-75 | 10 | 1359 | 15 | 4000 | 92 | 2400 |
| YNB60-48S24 | 18-75 | 10 | 1374 | 24 | 2500 | 91 | 900 |
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Input Voltage | 24V Models | 9 | 36 | Vdc | ||
| 48V Models | 18 | 75 | ||||
| Input Surge Voltage (100 ms max.) | 24V Models | -0.7 | 50 | |||
| 48V Models | -0.7 | 100 | ||||
| Start up Voltage | 24V Models | 9 | Vdc | |||
| 48V Models | 18 | |||||
| Under Voltage Shutdown | 24V Models | 7.5 | Vdc | |||
| 48V Models | 16 | |||||
| Start up Time | Constant Resistive Load, Nominal Vin | Power-up | 30 | ms | ||
| Remote ON/OFF | 30 | |||||
| Input Filter | All Models | Internal Pi type | ||||
| Remote ON/OFF Ctrl PIN Refer T o Vin PIN) | Positive Logic | DC/DC ON | Open or 3.5 Vdc-12 Vdc | |||
| DC/DC OFF | Short or 0 Vdc-1.2 Vdc | |||||
| Input Current O f Ctrl PIN | -0.5 | 0.5 | mA | |||
| Remote Off Input Current | 3 | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Voltage Tolerance | 100% load | -2 | +2 | % | ||
| Line Regulation | Vin(min) to Vin(max) @100% Load | -0.2 | +0.2 | % | ||
| Load Regulation | 0% Load to 100% Load | -0.5 | +0.5 | % | ||
| Ripple & Noise (BW=20MHz) | With an 1uF MLCC and a 10uF tantalum Capacitor | 5Vout | 100 | mVp-p | ||
| 12Vout | 150 | |||||
| 15Vout | 150 | |||||
| 24Vout | 150 | |||||
| Transient Response Setting Time | 25% Load Step Change | 350 | 500 | us | ||
| Transient Response Deviation | 25% Load Step Change | -5 | ±3 | +5 | % | |
| Temperature Coefficient | -0.02 | +0.02 | %/℃ | |||
| Voltage Adjustability | % of Vout | -10 | +10 | % | ||
| Output Power Protection | % of Io, Hiccup mode, Auto-recovery | 120 | 150 | 180 | % | |
| Short Circuit Protection | Continuous [Hiccup Mode], Auto-Recovery | |||||
| Over Voltage Protection | 5Vout | 6.2 | Vdc | |||
| 12Vout | 15 | |||||
| 15Vout | 18 | |||||
| 24Vout | 30 | |||||
| Parameters | Conditions | Min | Typ | Max | Units | |
|---|---|---|---|---|---|---|
| Isolation Voltage | Input To Output (60sec) | 1600 | Vdc | |||
| Input(Output) To Case (60sec) | 1000 | Vdc | ||||
| Isolation Resistance | 500Vdc | 1000 | MΩ | |||
| Isolation Capacitance | 100KHz,1V | 2200 | pF | |||
| Switching Frequency | Full Load, Nominal Input | 280 | KHz | |||
| Operating Ambient Temperature (Power Derating See Derating Graph) | Nominal Vin, 100% Load | YNB60-24S05, YNB60-24S24, YNB60-48S05, YNB60-48S24 | -40 | 45.7 | ℃ | |
| YNB60-24S12, YNB60-24S15, YNB60-48S12, YNB60-48S15 | 52.8 | |||||
| Nominal Vin, 100% Load (With HS Heatsink) | YNB60-24S05HS, YNB60-24S24HS, YNB60-48S05HS, YNB60-48S24HS | -40 | 56.9 | ℃ | ||
| YNB60-24S12HS, YNB60-24S15HS, YNB60-48S12HS, YNB60-48S15HS | 62.7 | |||||
| Nominal Vin, 100% Load (With HS1 Heatsink) | YNB60-24S05HS1, YNB60-24S24HS1, YNB60-48S05HS1, YNB60-48S24HS1 | -40 | 68.2 | ℃ | ||
| YNB60-24S12HS1, YNB60-24S15HS1, YNB60-48S12HS1, YNB60-48S15HS1 | 72.7 | |||||
| Maximum Case Temperature | 105 | ℃ | ||||
| Over Temperature Protection | Case temperature | 115 | ℃ | |||
| Storage Temperature | -55 | 125 | ℃ | |||
| Humidity | Non Condensing | 5 | 95 | % | ||
| Cooling | Natural Convection | |||||
| Case Material | Copper | |||||
| Potting Material | Silicone (UL94-V0) | |||||
| MTBF | MIL-HDBK-217F@25℃ (calculated) | 2.59X105 | Hours | |||
| Weight | 48 | g | ||||
| Dimensions | 50.8 x 25.4 x 11.6 | mm | ||||

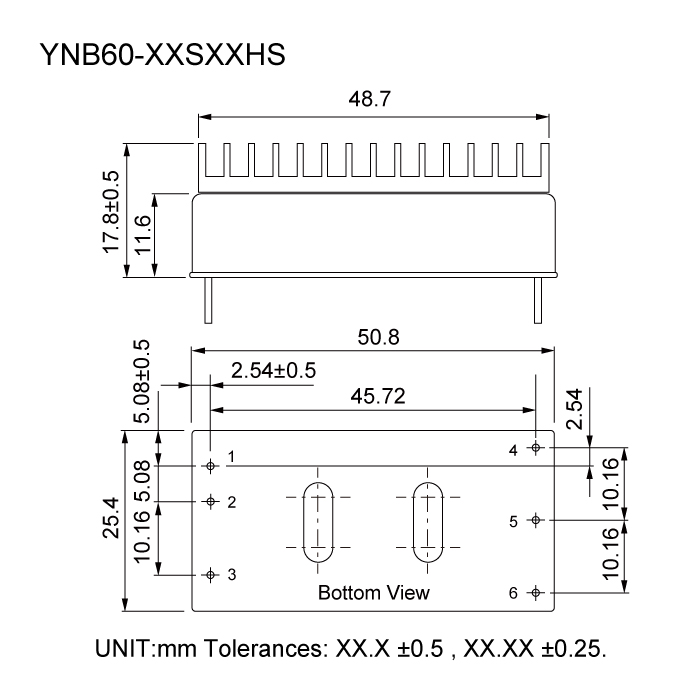

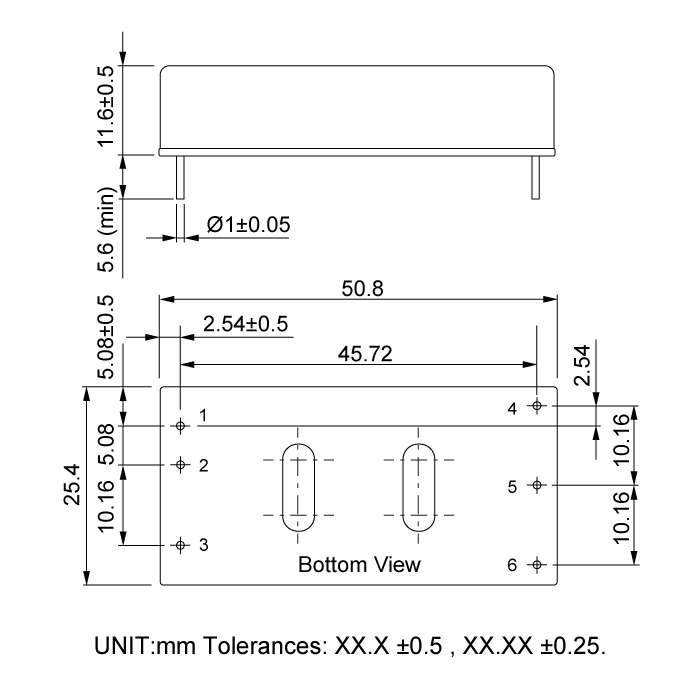

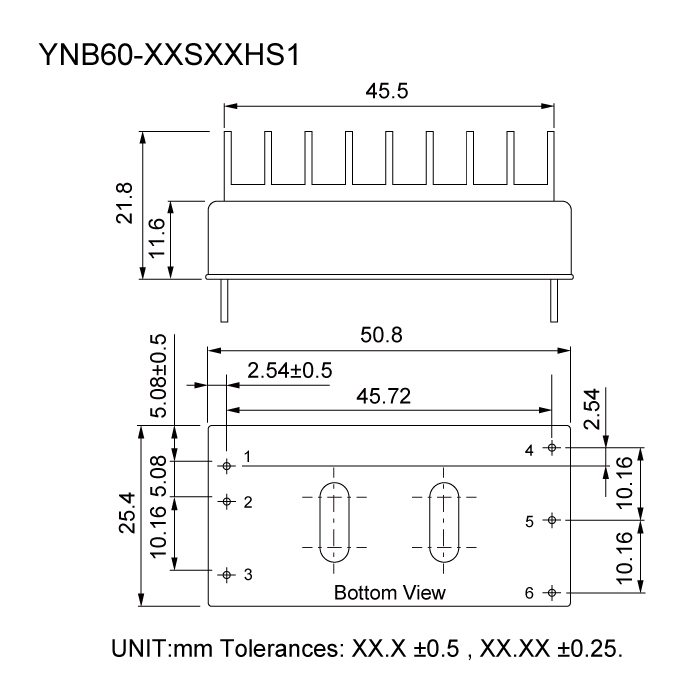

Dimension
Files Download
YNB60-Series.pdf
