5G series
YDS

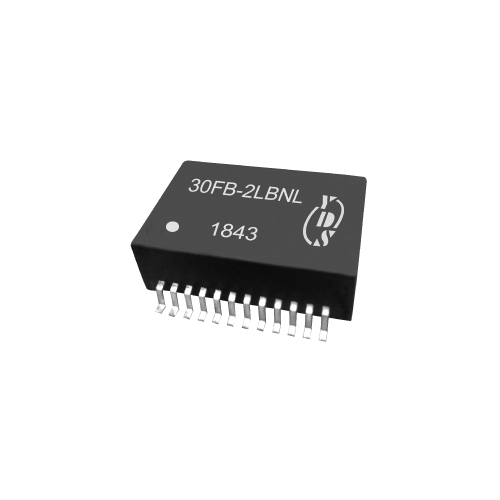

5G Base-T SMD Internet Filter
Designed for long haul Gigabit Ethernet 5G Base-T, full duplex applications.
Supports 4 pairs of category 5 UTP cable.
Cable interface for isolation and low common mode emissions.
Compliant with IEEE 802.3an standard.
Recognized by UL 60950-1.
| Part Number | Insertion Loss (dB max) | Return Loss (dB min @100Ω) | DCMR (dB min) | Crosstalk (dB min) | Hipot (Vrms Min) | |||
|---|---|---|---|---|---|---|---|---|
| 1-100 MHz | 100-250 MHz | 1-40 MHz | 40-250 MHz | 1-30 MHz | 30-250 MHz | 1-250 MHz | ||
| 30FB-2LBNL | -1.0 | -2.0 | -18 | -16+10log10(f/40MHz) | -48 | -44+19.2log10(f/50MHz) | -43.1+20log10(f/100MHz) | 1500 |
5G-Series.pdf
