56F(5G PoE) Series
YDS
PoE&PoE+ Applications Single Port 5G Base-T RJ45 Connector
Features
1x1 Tab-up, 1" long RJ45 with internal magnetics.
16pin signal pin versions available.
Available with LEDs.
Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.
Internal magnetics are 100% electrically tested for HI-POT and functionality.
Meet IEEE 802.3af standards with 350mA.
Meet IEEE 802.3at standards with 720mA.
| Part Number | Turns Ratio (±3%) | LEDs | Insertion Loss (dB MAX) | Return Loss (dB MIN) | ||
|---|---|---|---|---|---|---|
| L/R | 1-125 MHz | 125-250 MHz | 1-40 MHz | 40-250 MHz | ||

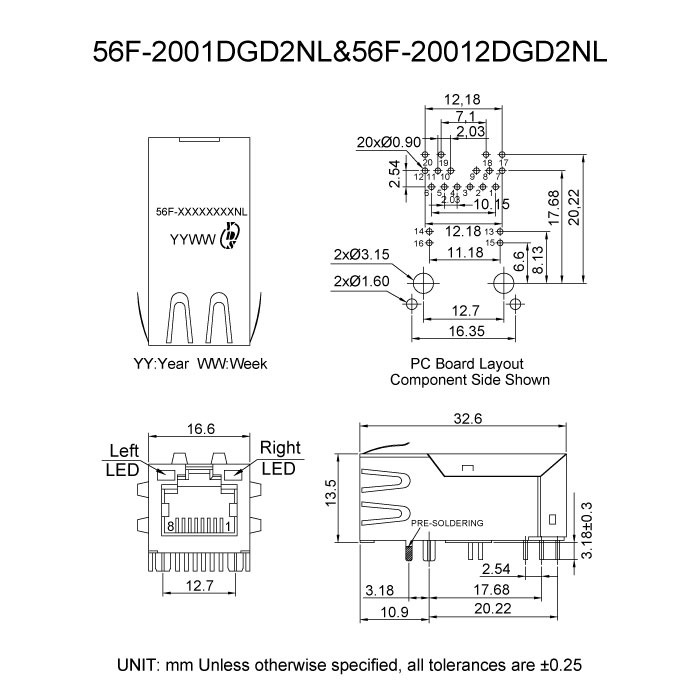

| 56F-2001DGD2NL | 1CT: 1CT | G & Y/G | -1.0 | -1.5 | -20 | -20+15log10(f/40MHz) |
| 56F-20012DGD2NL | 1CT: 1CT | G & Y/G | -1.0 | -1.5 | -20 | -20+15log10(f/40MHz) |
| Part Number | Crosstalk (dB TYP) | CDMR (dB TYP) | CMR (dB TYP) | Hipot (Vdc) | POE Current | |
|---|---|---|---|---|---|---|
| 1-125 MHz | 125-250 MHz | 10-250 MHz | 30-250 MHz | @60Hz | ||
| 56F-2001DGD2NL | -30 | -25 | -45+f/35dB | -30 | 2250 | 350mA |
| 56F-20012DGD2NL | -30 | -25 | -45+f/35dB | -30 | 2250 | 720mA |
| Part Number | Turns Ratio (±2%) | LEDs | Insertion Loss (dB MIN) | Return Loss (dB MIN) | |||
|---|---|---|---|---|---|---|---|
| L/R | 1-50 MHz | 50-125 MHz | 125-250 MHz | 1-40 MHz | 40-250 MHz | ||

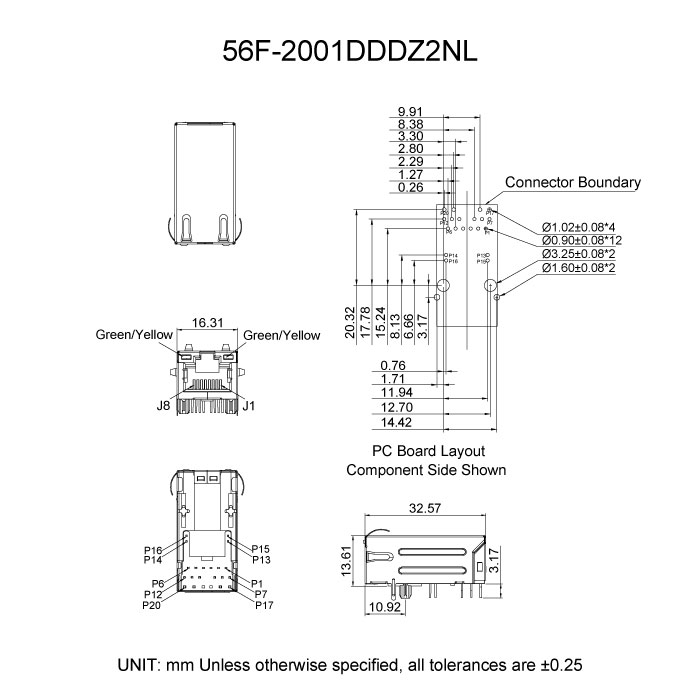

| 56F-2001DDDZ2NL | 1CT: 1CT | G/Y & G/Y | -0.5 | -1.2 | -2.0 | -16 | -16+10log10 (f/40MHz) 40<f≦250 |
| Part Number | Crosstalk (dB MIN) | CMR (dB MIN) | DCMR (dB MIN) | Hipot (Vdc) | POE Current | ||
|---|---|---|---|---|---|---|---|
| 1-125 MHz | 1-40 MHz | 40-100 MHz | 100-250 MHz | 1-250 MHz | @60Hz | ||
| 56F-2001DDDZ2NL | -30 | -30 | -28 | -26 | -30 | 2250 | 720mA |
Files Download
56F-5G-PoE-Series.pdf
