56F(2.5G) Series
YDS
Single Port 2.5G Base-T TAB Up RJ45 Connector
1x1 Tab-UP, 1" Long RJ45 with internal magnetics.
12pin signal pin versions available.
Available with LEDs.
Suitable for CAT 5 & 6 fast ethernet cable or better UTP.
Internal magnetics are 100% electrically tested for HI-POT and functionality.
| Part Number | Turns Ratio (±3%) | LEDs | Insertion Loss (dB MAX) | Return Loss (dB MIN) | Crosstalk (dB TYP) | ||
|---|---|---|---|---|---|---|---|
| L/R | 1-200 MHz | 1-40 MHz | 40-200 MHz | 1-125 MHz | 125-200 MHz | ||
| 56F- 1804DDDZ2NL | 1CT: 1CT | G&O/ G&O | -2.0 | -20 | -20+15log(f/40MHz) | -30 | -25 |
| Part Number | CDMR (dB TYP) | CMR (dB TYP) | DCMR (dB TYP) | Hipot (Vrms) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 50 MHz | 100 MHz | 200 MHz | 1-50 MHz | 125 MHz | 200 MHz | 10 MHz | 10-200 MHz | @60Hz | |
| 56F- 1804DDDZ2NL | -30 | -30 | -27 | -24 | -35 | -30 | -27 | -48 | -48+19log(f/10MHz) | 1500 |

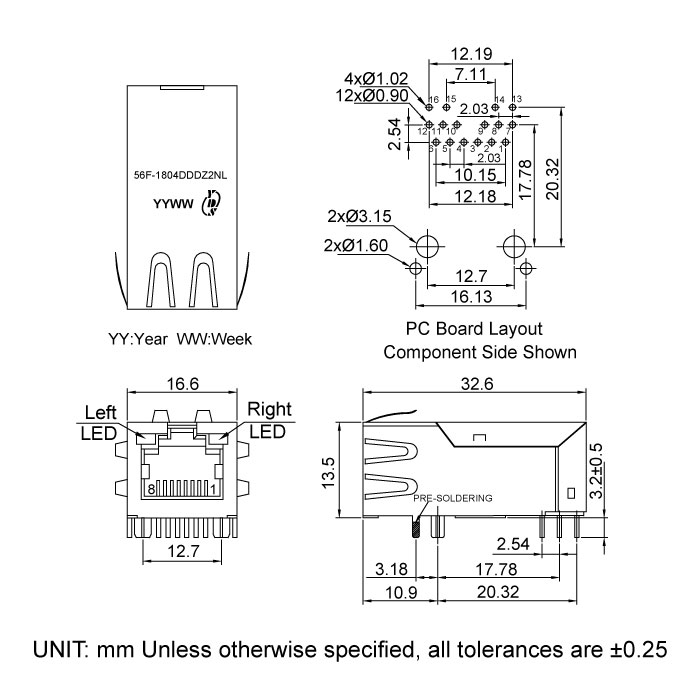

Dimension
Files Download
56F-2-5G-Series.pdf
Single Port 2.5G Base-T TAB Up RJ45 Connector
1x1 Tab-UP, 1" Long RJ45 with internal magnetics.
12pin signal pin versions available.
Available with LEDs.
Suitable for CAT 5 & 6 fast ethernet cable or better UTP.
Internal magnetics are 100% electrically tested for HI-POT and functionality.
| Part Number | Turns Ratio (±3%) | LEDs | Insertion Loss (dB MAX) | Return Loss (dB MIN) | Crosstalk (dB TYP) | ||
|---|---|---|---|---|---|---|---|
| L/R | 1-200 MHz | 1-40 MHz | 40-200 MHz | 1-125 MHz | 125-200 MHz | ||
| 56F- 1804DDDZ2NL | 1CT: 1CT | G&O/ G&O | -2.0 | -20 | -20+15log(f/40MHz) | -30 | -25 |
| Part Number | CDMR (dB TYP) | CMR (dB TYP) | DCMR (dB TYP) | Hipot (Vrms) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 50 MHz | 100 MHz | 200 MHz | 1-50 MHz | 125 MHz | 200 MHz | 10 MHz | 10-200 MHz | @60Hz | |
| 56F- 1804DDDZ2NL | -30 | -30 | -27 | -24 | -35 | -30 | -27 | -48 | -48+19log(f/10MHz) | 1500 |
Dimension
Files Download
56F-2-5G-Series.pdf
