56F(2.5G PoE) Series
YDS
Single Port 2.5G Base-T PoE & PoE+ & PoE++ RJ45 Connector
1x1 Tab-up, 1" long RJ45 with internal magnetics.
16pin signal pin versions available.
Available with LEDs.
Suitable for CAT 5 & 6 fast ethernet cable or better UTP.
Internal magnetics are 100% electrically tested for HI-POT and functionality.
Meet IEEE 802.3af standards with 350mA.
Meet IEEE 802.3at standards with 720mA.
Meet IEEE 802.3bt standards with 1A.
| Part Number | Turns Ratio (± 3%) | LEDs | Insertion Loss (dB MAX) | Return Loss (dB MIN) | Crosstalk (dB TYP) | |||
|---|---|---|---|---|---|---|---|---|
| L/R | 1-50 MHz | 50-125 MHz | 1-40 MHz | 40-200 MHz | 1-125 MHz | 125-200 MHz | ||
| 56F-1801DDD2NL | 1CT: CT | G&Y/G&Y | -0.5 | -1.0 | -20 | -20+15log (f/40MHz) | -30 | -25 |
| 56F-18012DDD2NL | 1CT:1CT | G&Y/G&Y | -0.5 | -1.0 | -20 | -20+15log (f/40MHz) | -30 | -25 |
| Part Number | DCMR (dB TYP) | CMR (dB TYP) | CDMR (dB TYP) | POE Current | Hipot (Vdc) | ||||
|---|---|---|---|---|---|---|---|---|---|
| 1-10 MHz | 10-200 MHz | 1-125 MHz | 1 MHz | 50 MHz | 100 MHz | 200 MHz | @60Hz | ||
| 56F-1801DDD2NL | -48 | -48+19log (f/10MHz) | -35 | -30 | -30 | -27 | -24 | 720mA | 2250 |
| 56F-18012DDD2NL | -48 | -48+19log (f/10MHz) | -35 | -30 | -30 | -27 | -24 | 350mA | 2250 |
| Part Number | Turns Ratio (± 3%) | LEDs | Insertion Loss (dB MAX) | Return Loss (dB MIN) | Crosstalk (dB TYP) | |||
|---|---|---|---|---|---|---|---|---|
| L/R | 1-50 MHz | 50-125 MHz | 1-40 MHz | 40-200 MHz | 1-125 MHz | 125-200 MHz | ||
| 56F-1802DDD2NL | 1CT:1CT | G&Y/G&Y | -0.5 | -1.0 | -20 | -20+15log (f/40MHz) | -30 | -25 |
| 56F-1803DGDZ2NL | 1CT:1CT | G&Y/G | -0.5 | -1.0 | -20 | -20+15log (f/40MHz) | -30 | -- |
| Part Number | DCMR (dB TYP) | CMR (dB TYP) | CDMR (dB TYP) | POE Current | Hipot (Vdc) | ||||
|---|---|---|---|---|---|---|---|---|---|
| 1-10 MHz | 10-200 MHz | 1-125 MHz | 1 MHz | 50 MHz | 100 MHz | 200 MHz | @60Hz | ||
| 56F-1802DDD2NL | -48 | -48+19log (f/10MHz) | -35 | -30 | -30 | -27 | -24 | 350mA | 2250 |
| 56F-1803DGDZ2NL | -- | -- | -30dB (30-200MHz) | -45+f/35dB (10-125MHz) | 1A | 2250 | |||

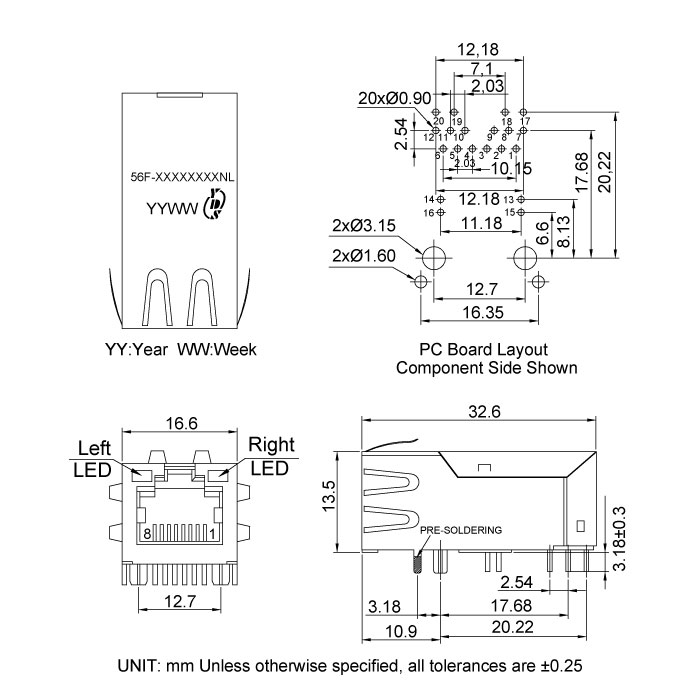

Dimension
Files Download
56F-2_5G-PoE-Series.pdf
