100/1000 Base-T Single Port RJ45 Connector for PoE & PoE+ Application
Magnetic designs to support every PHY.
Meet IEEE 802.3af standards with 350mA.
Meet IEEE 802.3at standards with 720mA.
including 350uH min OCL with 8mA bias.
Minimum 1500Vrms isolation per IEEE 802.3 requirement.
Designed for 100/1000 base transmission over UTP-5 cable.
Size same as RJ-45 modular jack to save PCB board Space.
Recognized by UL 60950-1.

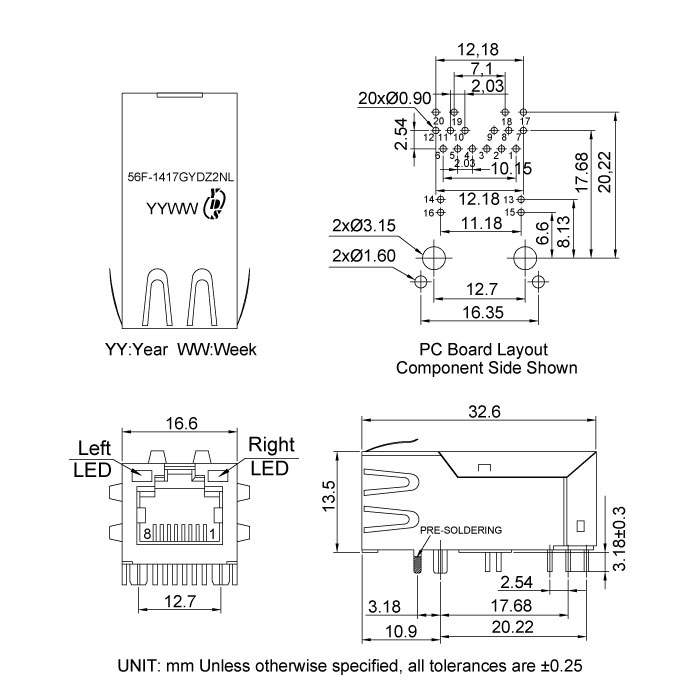

| Part Number | Turns Ratio (±5%) | EMI Fingers | LED (L/R) | Insertion Loss (dB TYP) | Return Loss (dB min @100Ω) | ||
|---|---|---|---|---|---|---|---|
| 1-100 MHz | 1-10 MHz | 30 MHz | 60-80 MHz | ||||
| 56F-1417GYDZ2NL | 1CT: 1CT | YES | G/Y | -1.0 | -20 | -16 | -12 |
| Part Number | Crosstalk (dB TYP) | Common Mode Rejection (dB TYP) | PoE Current | Hipot (VDCmin) | |||
|---|---|---|---|---|---|---|---|
| 1-40 MHz | 30-60 MHz | 60-100 MHz | 1-50 MHz | 50-130 MHz | |||
| 56F-1417GYDZ2NL | -40 | -35 | -30 | -30 | -20 | 720mA | 2250 |
Files Download
56F-14XX Series.pdf
