54D Series
YDS
3W 0.5KV Isolation DIL Package DC to DC Power Conversion
24PIN DIL package.
Low ripple & noise.
High efficiency up to 85%.
Regulated output types.
Internal SMD construction.
Operating temperature:-40°C to +85°C.
Industry standard pinout.
| Part Number | Output Voltage | Output Current | Efficiency |
|---|---|---|---|
| Vdc | mA | %TYP | |
| 54D-XXS05CN | 5 | 600 | 65 |
| 54D-XXS09CN | 9 | 333 | 70 |
| 54D-XXS12CN | 12 | 250 | 75 |
| 54D-XXS15CN | 15 | 200 | 80 |
| 54D-XXS24CN | 24 | 125 | 80 |
| 54D-XXD05CN | ± 5 | ± 300 | 65 |
| 54D-XXD09CN | ± 9 | ± 167 | 70 |
| 54D-XXD12CN | ± 12 | ± 125 | 75 |
| 54D-XXD15CN | ± 15 | ± 100 | 80 |
| 54D-XXD24CN | ± 24 | ± 63 | 80 |
Note:
1.”XX” Is Input Voltage:05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc,24=24Vdc,48=48Vdc.
2. The input voltage increases, there will be an increase in efficiency.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo,Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 3 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 0.8 | % | ||
| Ripple & Noise | Output:5-9V TYPES BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output:12-24V TYPES BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | Nickel Coated Copper With Non-Conductive Base | ||||
| MTBF | MIL-HDBK-217F@25℃ | 1500000 | Hours | ||
| Weight | 16.8 | g | |||

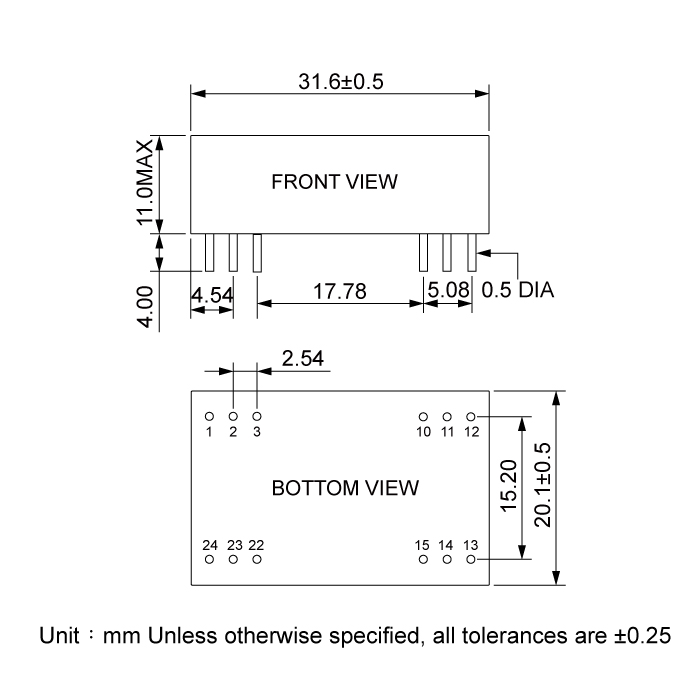

| Dimensions | 31.6 x 20.10 x 11.0 | mm | |||
54D-Series.pdf
