Single Port 1000 Base-T TAB Up Vertical RJ45 Connector
Magnetic designs to support every PHY.
Meet or exceed IEEE 802.3 and ANSI X3.263 standards including 350uH min OCL with 8mA bias.
Minimum 1500Vrms isolation per IEEE 802.3 requirement.

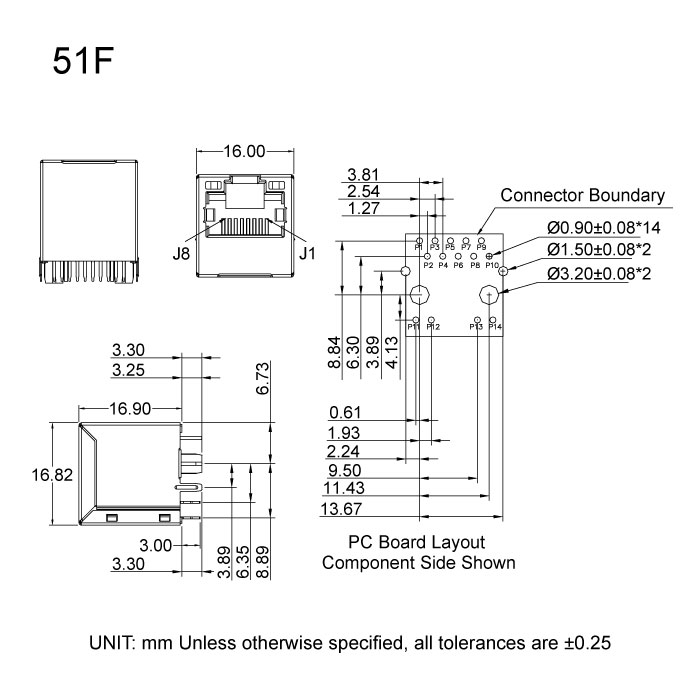

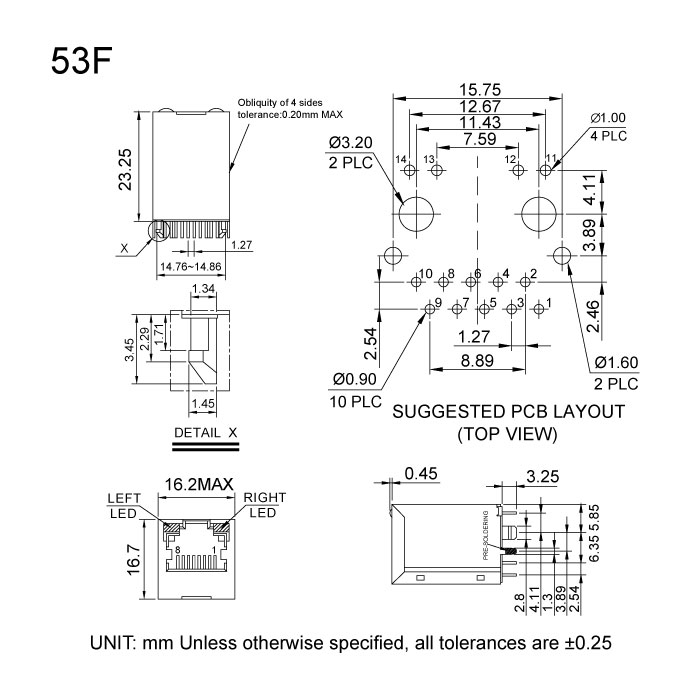

| Part Number | Turns Ratio ±3% | LEDs (L/R) | Insertion Loss (dB MAX) | Return Loss (dB MIN @100Ω±15Ω) | |||
|---|---|---|---|---|---|---|---|
| TX | RX | 0.1-100 MHz | 0.1-30 MHz | 30-60 MHz | 60-100 MHz | ||
| 51F-1305GYD2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.0 | -18 | -16 | -10 |
| 53F-1330GYD2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.0 | -18 | -16 | -10 |
| Part Number | Cross Talk (dB MIN) | CDMR (dB MIN) | DCMR (dB MIN) | Hipot (VDC) | ||
|---|---|---|---|---|---|---|
| 0.1-30 MHz | 30-60 MHz | 60-100 MHz | 0.1-100 MHz | 0.1-100 MHz | ||
| 51F-1305GYD2NL | -40 | -35 | -30 | -30 | -30 | 1500 |
| 53F-1330GYD2NL | -40 | -35 | -30 | -30 | -30 | 1500 |
| Part Number | Turns Ratio ±2% | LEDs (L/R) | Insertion Loss (dB TYP) | Return Loss (dB TYP @100Ω±15Ω) | |||
|---|---|---|---|---|---|---|---|
| TX | RX | 0.3-100 MHz | 1-10 MHz | 30 MHz | 60-80 MHz | ||
| 51F-13101GYDZ2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.2 | -18 | -16 | -12 |
| 53F-1305GYDZ2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.2 | -18 | -16 | -12 |
| Part Number | Cross Talk (dB TYP) | Common Mode Rejection (dB TYP) | Hipot (Vrms) | |||
|---|---|---|---|---|---|---|
| 1-10 MHz | 30-60 MHz | 60-100 MHz | 1-50 MHz | 50-130 MHz | ||
| 51F-13101GYDZ2NL | -30 | -30 | -30 | -30 | -20 | 1500 |
| 53F-1305GYDZ2NL | -30 | -30 | -30 | -30 | -20 | 1500 |
Files Download
51F-53F(1G) Series.pdf
