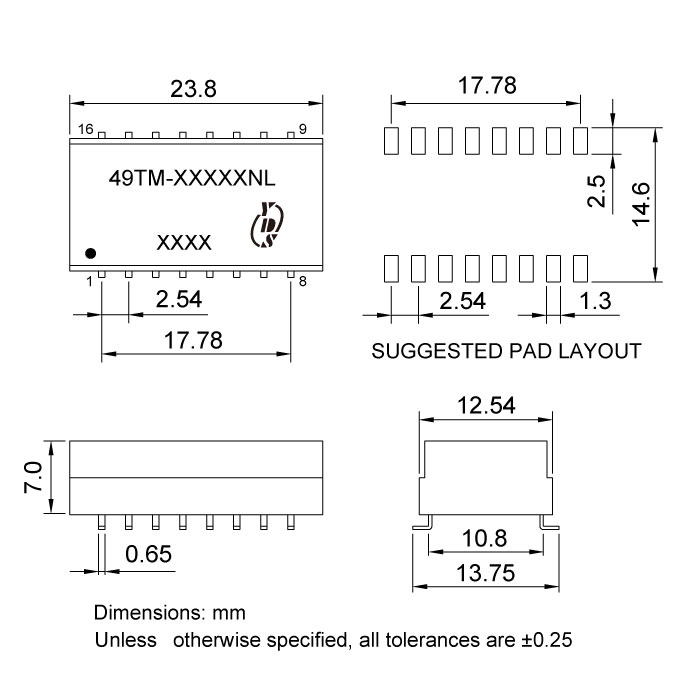

2KVrms Isolation SMD Package Telecom Transformer
Developed for enhanced EMC performance.
Excellent longitudinal balance.
Low or high frequency choke options available.
Main Transformers Inductance -------10KHz/100mV.
CMC Inductance -----------------------100KHz/20mV.
Leakage Inductance & Interwinding Capacitance –100KHz/100mV.
| Part Number | Turns Ratio (Line: Chip) (± 2%) | Line Side Inductance (mH min.) | Interwinding Capacitance (pF max) | Line Side Leakage Inductance (uH max) | DCR Line Side (Ω ± 15%) | DCR Line Side (Ω ± 15%) | Schematics |
|---|---|---|---|---|---|---|---|
| 49TM-3031**ANL | 1CS: 1CS | 30 | 100 | 5 | 2.9 | 2.8 | A |
| 49TM-3032**BNL | 1CT: 1CT | 30 | 100 | 5 | 2.9 | 2.8 | B |
| 49TM-3033**ANL | 1CS: 2CS | 30 | 100 | 5 | 3.0 | 5.4 | A |
| 49TM-3034**BNL | 1CT: 2CT | 30 | 100 | 5 | 3.0 | 5.4 | B |
| 49TM-3035**ANL | 1CS: 2.5CS | 30 | 100 | 5 | 3.0 | 6.8 | A |
| 49TM-3036**BNL | 1CT: 2.5CT | 30 | 100 | 5 | 3.0 | 6.8 | B |
| Part Number | Common Mode Choke | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| -00 | -51 | -12 | -52 | -53 | ||||||
| OCL (uH) | DCR (Ω max) | OCL (uH) | DCR (Ω max) | OCL (uH) | DCR (Ω max) | OCL (uH) | DCR (Ω max) | OCL (uH) | DCR (Ω max) | |
| 49TM-3031**ANL | None | 50 | 0.4 | 100 | 0.6 | 500 | 1.4 | 5.0 | 2.0 | |
| 49TM-3032**BNL | None | 50 | 0.4 | 100 | 0.6 | 500 | 1.4 | 5.0 | 2.0 | |
| 49TM-3033**ANL | None | 50 | 0.4 | 100 | 0.6 | 500 | 1.4 | 5.0 | 2.0 | |
| 49TM-3034**BNL | None | 50 | 0.4 | 100 | 0.6 | 500 | 1.4 | 5.0 | 2.0 | |
| 49TM-3035**ANL | None | 50 | 0.4 | 100 | 0.6 | 500 | 1.4 | 5.0 | 2.0 | |
| 49TM-3036**BNL | None | 50 | 0.4 | 100 | 0.6 | 500 | 1.4 | 5.0 | 2.0 | |
Files Download
49TM-Series.pdf
