49F Series
YDS

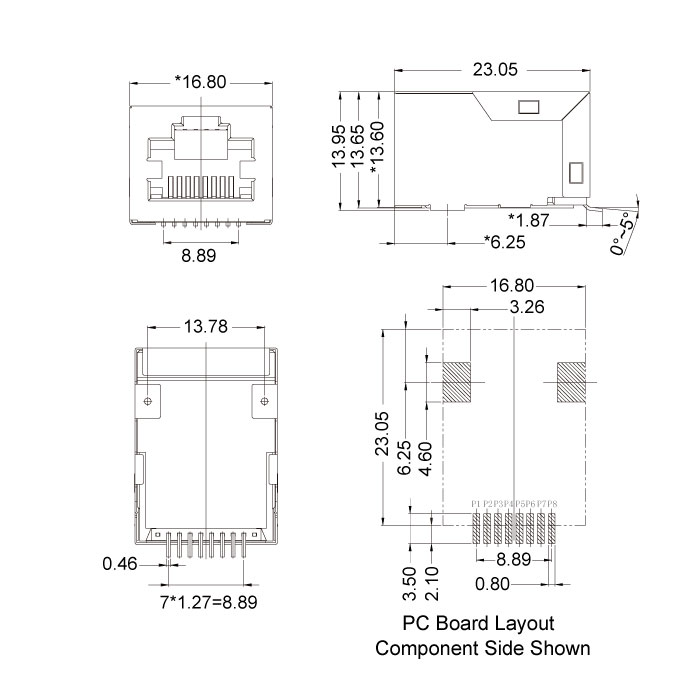

Single Port 10/100 Base-T TAB Up SMD RJ45 Connector
Available in Tape & Reel format.
SMT product available with or without LEDs.
Internal magnetics: 100% electrically tested for HI-POT & Continuity.
Internal magnetics options available.
Meets or exceeds IEEE 802.3i/u standard for 10/100Base-T.
Minimum 2250 VDC isolation per IEEE 802.3 requirement.
Desingned to withstand IR reflow temperatures up to 245°C.
Recognized by UL 60950-1.
| Part Number | Turns Ratio | LEDs | Insertion Loss TX/RX (dB MAX) | Return Loss @100Ω ± 15Ω(dB TYP) | Cross Talk (dB MIN) | Hipot (VDC) | |||
|---|---|---|---|---|---|---|---|---|---|
| TX | RX | L/R | 1-100 MHz | 1-30 MHz | 30-60 MHz | 60-100 MHz | 1-100 MHz | 0.5mA/2Sec | |
| 49F-12011GYDZ2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.2 | -16 | -12 | -10 | -30 | 2250 |
Files Download
49F-Series.pdf
