Single Port 100/1000 Base-T TAB Down RJ45 Connector
Single port Tab-Down with internal magnetics for 1000Base-T.
350uH minimum OCL with 8mA bias current.
Internal magnetics options available.
Minimum 2250VDC isolation.
Recognized by UL 60950-1.
| Part Number | Turns Ratio (±5%) | Insertion Loss (dB MAX) | Return Loss (dB MIN @100W ±15Ω) | |||
|---|---|---|---|---|---|---|
| 0.3-100MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | ||

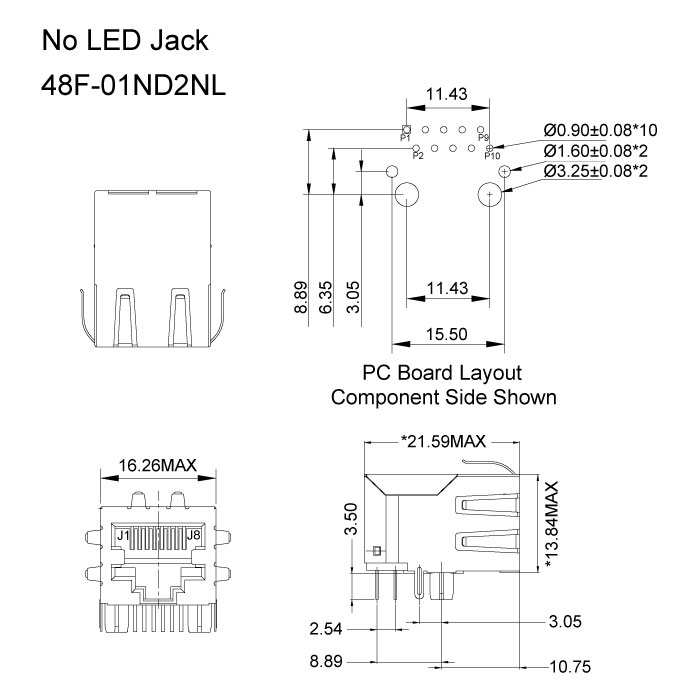

| 48F-01ND2NL | 1CT: 1CT | -1.2 | -16 | -13.5 | -11.5 | -10 |

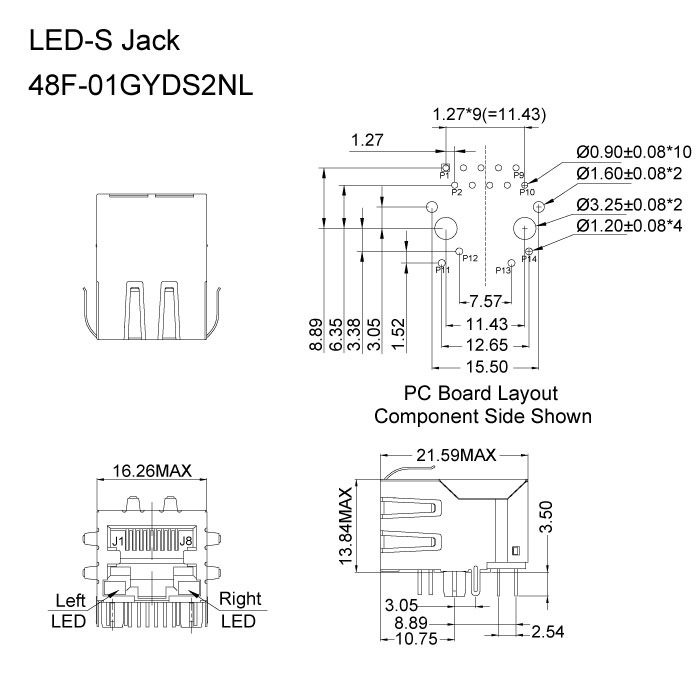

| 48F-01GYDS2NL | 1CT: 1CT | -1.2 | -16 | -13.5 | -11.5 | -10 |

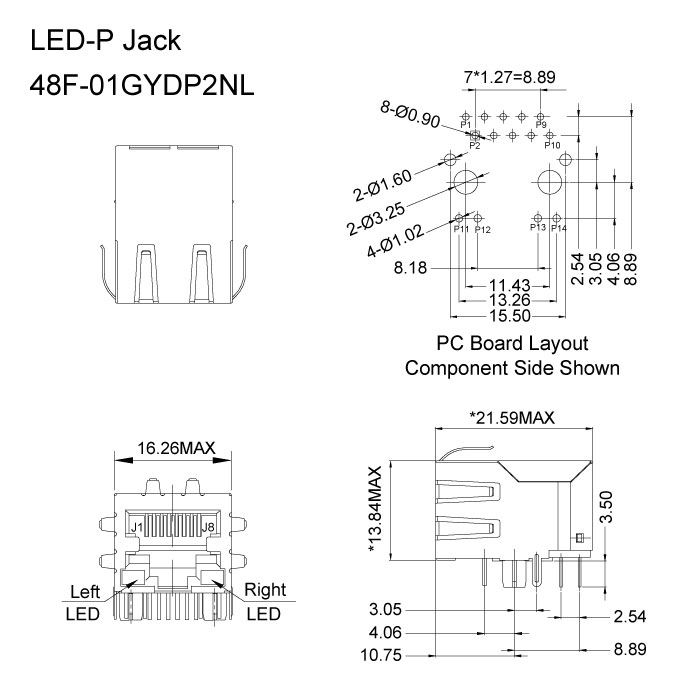

| 48F-01GYDP2NL | 1CT: 1CT | -1.2 | -16 | -13.5 | -11.5 | -10 |
| Part Number | Differential to Common Mode Rejection (dB MIN) | Cross Talk (dB MIN) | Hipot (VDC) | ||||
|---|---|---|---|---|---|---|---|
| 30 MHz | 60 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 48F-01ND2NL | -35 | -32 | -30 | -40 | -36 | -30 | 2250 |
| 48F-01GYDS2NL | -35 | -32 | -30 | -40 | -36 | -30 | 2250 |
| 48F-01GYDP2NL | -35 | -32 | -30 | -40 | -36 | -30 | 2250 |
Files Download
48F Series.pdf
Certification
