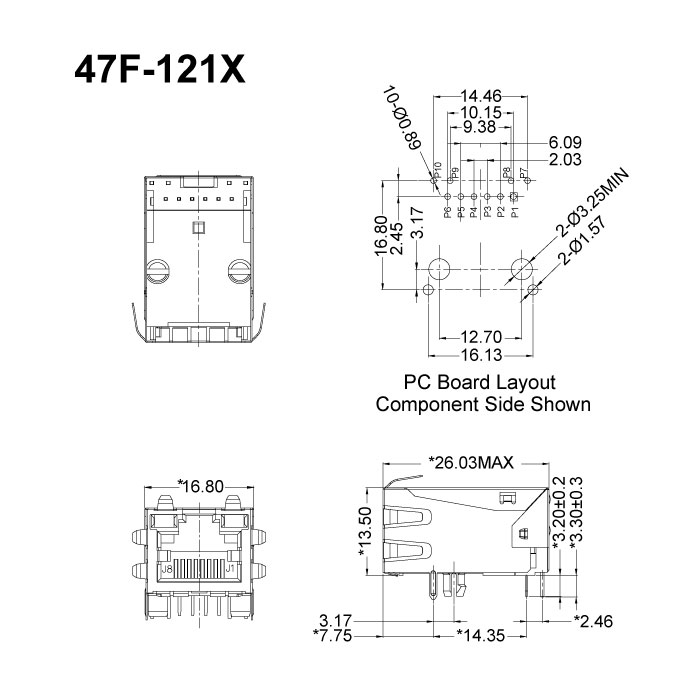

Single Port 10/100/1000 Base-T TAB Up RJ45 Connector
1x1 Tab-UP, 1" Long RJ45 with internal magnetics.
10, 8 or 6-pin signal pin versions available.
Available with and without LEDs.
Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.
Internal magnetics are 100% electrically tested for HI-POT and functionality.
350 µH minimum OCL with 8 mA bias current.
Recognized by UL 60950-1.

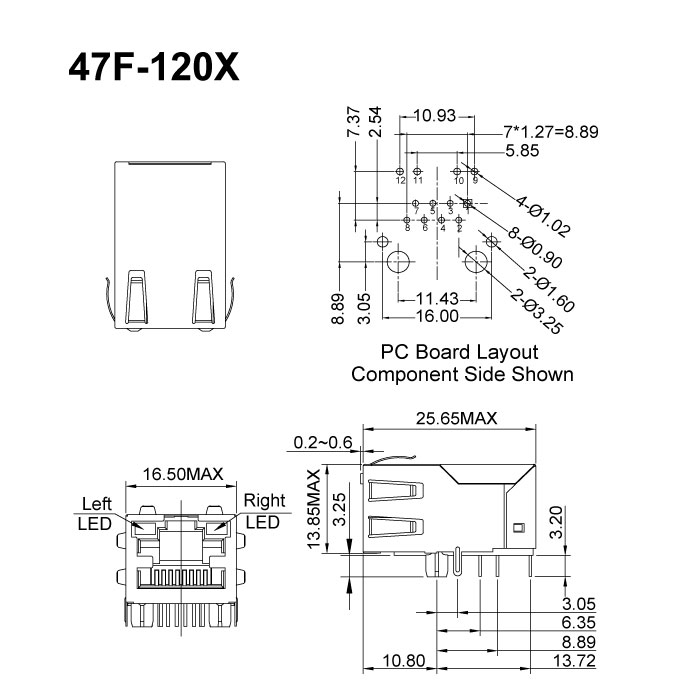

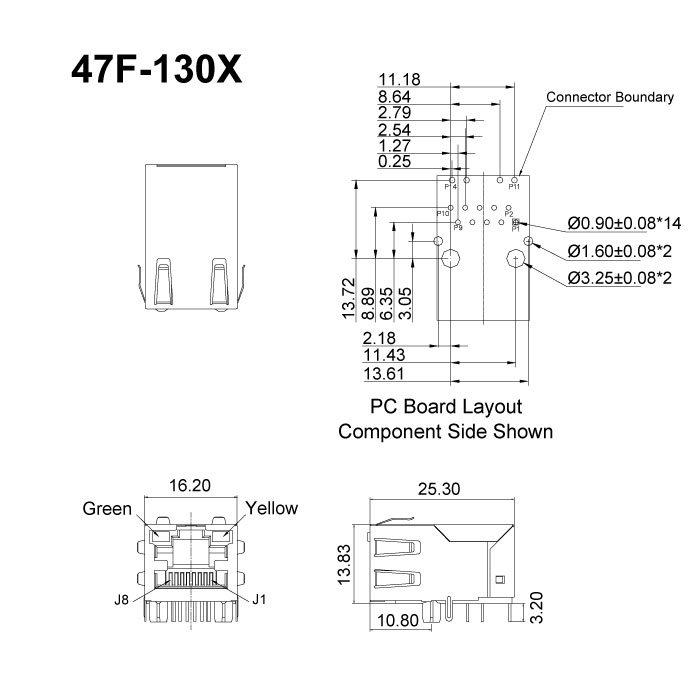

| Part Number | Turns Ratio | LEDs | Insertion Loss (dB TYP) | Return Loss (dB TYP @100Ω ± 15Ω) | ||||
|---|---|---|---|---|---|---|---|---|
| TX | RX | L/R | 1-65 MHz | 1-10 MHz | 10-30 MHz | 30-60 MHz | 60-80 MHz | |
| 47F-1205GYD2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.0 | -20 | -16 | -12 | -10 |
| 47F-1302GYD2NL | 1CT: 1CT | 1CT: 1CT | G/Y | -1.1 | -20 | -15 | -14 | -12 |
| Part Number | Cross Talk (dB TYP) | Common Mode Rejection (dB TYP) | Hipot (VDC) | |||
|---|---|---|---|---|---|---|
| 1-30 MHz | 30-60 MHz | 60-100 MHz | 1-50 MHz | 50-150 MHz | @60Hz | |
| 47F-1205GYD2NL | -40 | -35 | -30 | -30 | -20 | 2250 |
| 47F-1302GYD2NL | -35 | -32 | -30 | -30 | -20 | 2250 |
