46D Series 3W 1.5KV Isolation DC-DC Power Converter

Availability:
Quantity:
  • 46D Series

  • YDS

3W 1.5KV Isolation DIL Package DC to DC Power Conversion


Features


  • 24PIN DIL package.

  • High efficiency up to 85%.

  • Regulated output types.

  • Low ripple and noise.

  • Internal SMD construction.

  • Operating temperature:-40°C to +85°C.

  • Industry standard pinout.




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Output Voltage Output Current Efficiency
Vdc mA %TYP
46D-XXS05CN 5 600 65
46D-XXS09CN 9 333 70
46D-XXS12CN 12 250 75
46D-XXS15CN 15 200 80
46D-XXS24CN 24 125 80
46D-XXD05CN ± 5 ± 300 65
46D-XXD09CN ± 9 ± 167 70
46D-XXD12CN ± 12 ± 125 75
46D-XXD15CN ± 15 ± 100 80
46D-XXD24CN ± 24 ± 63 80


Note:
1.”XX” Is Input Voltage:05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc,24=24Vdc,48=48Vdc.
2. The input voltage increases, there will be an increase in efficiency.



Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance Vo,Io Nom     ± 10 %
Filter Capacitor


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% full load     ± 3 %
Short Circuit Protection Continuous
Line Regulation Regulated     ± 0.5 %
Load Regulation Regulated     ± 0.8 %
Ripple & Noise Output:5-9V TYPES
BW=DC To 20MHz
    100 mVp-p
Ripple & Noise Output:12-24V TYPES
BW=DC To 20MHz
    1% of Vout mVp-p
Transient response setting time 50% load step change   350   us


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000
Switching Frequency Full load, nominal input   100   KHz
Operating Temperature   -40   +85
Humidity Non Condensing     95 %
Cooling Free air Convection
Case material Nickel Coated Copper With Non-Conductive Base
MTBF MIL-HDBK-217F@25℃ 1500000     Hours
Weight   16.8 g
Dimensions   31.6 x 20.10 x 11.0 mm

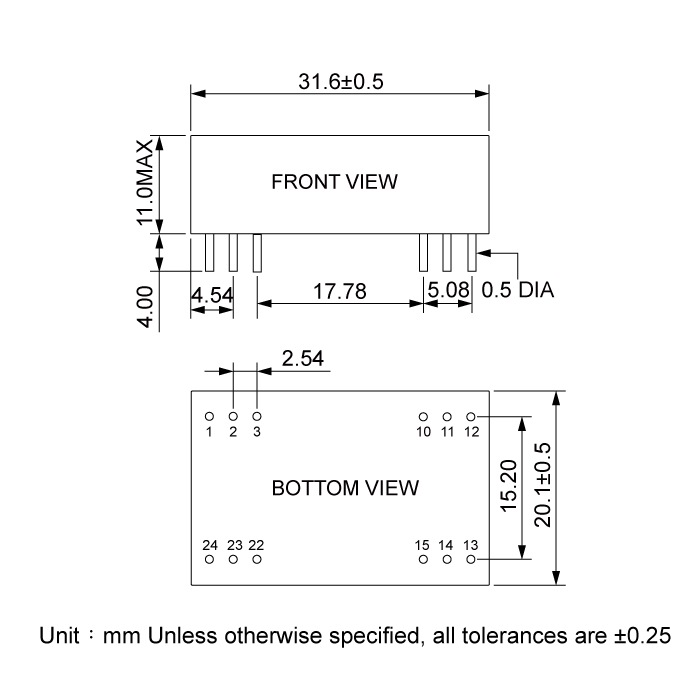

Dimension


46D




 Files Download       46D-Series.pdf
