45F Series
YDS

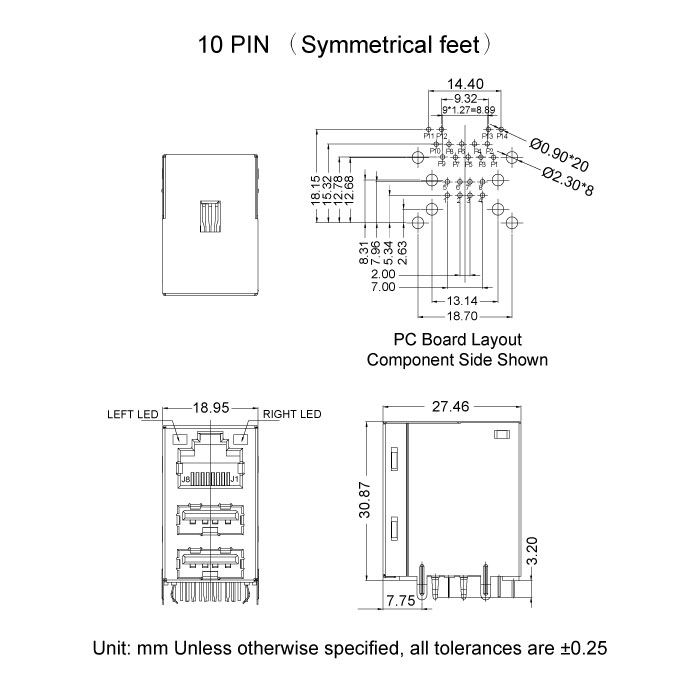

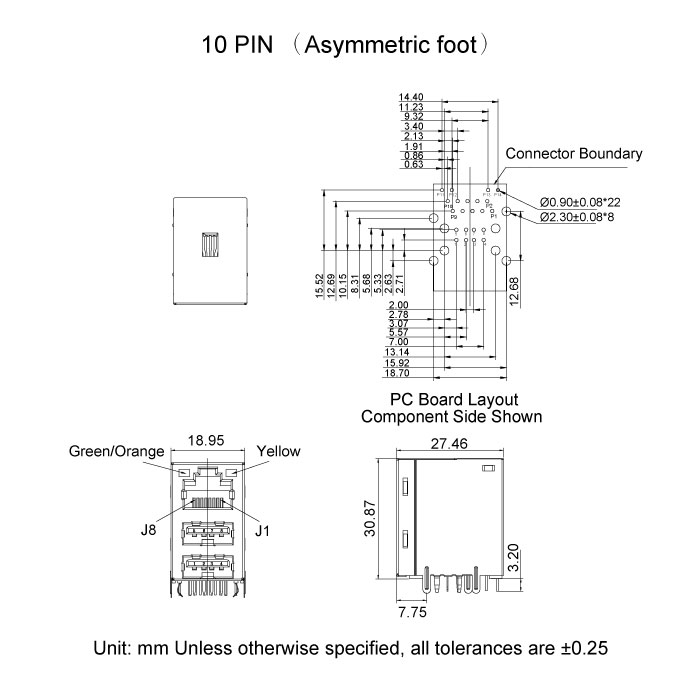

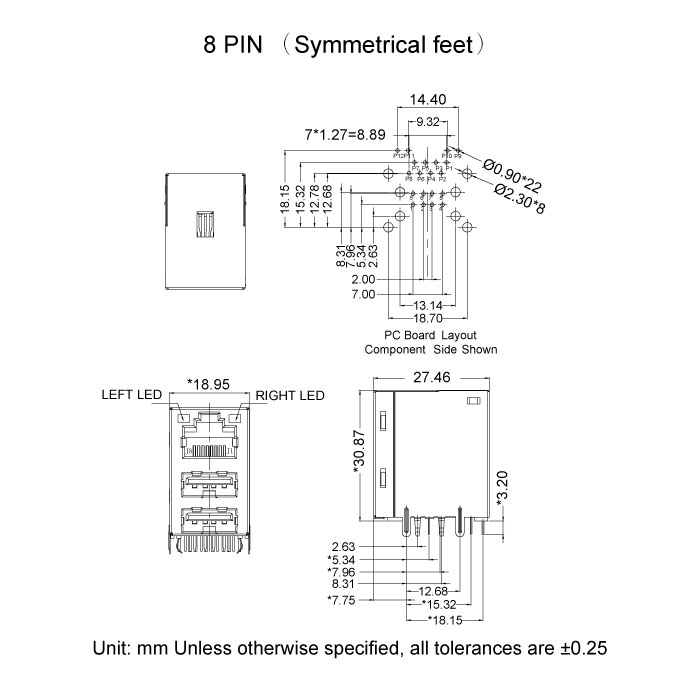

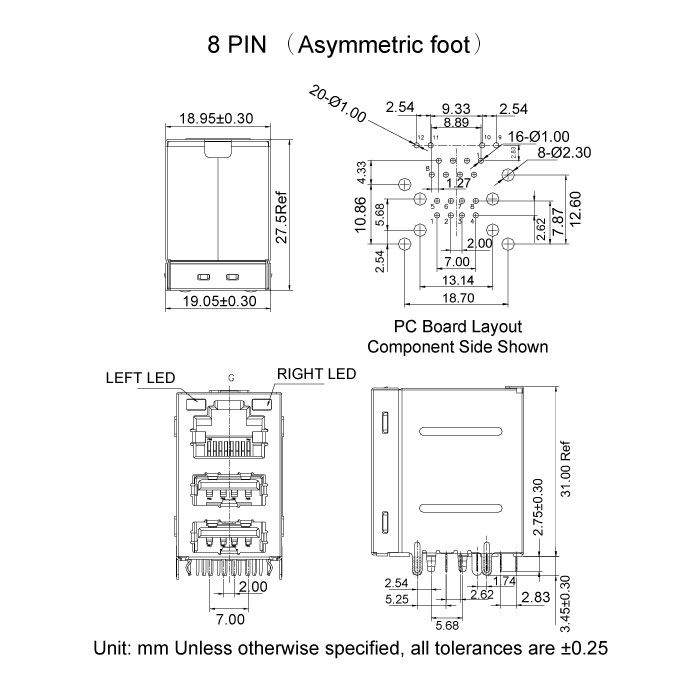

10/100/1000 Base-T Dual USB Integrated RJ45 Connector
LAN interface suitable for 10/100/1000Base-TX applications.
RJ45/USB stacked design saves on PCB real estate.
USB module complies with USB 2.0 standards and meets CAT5 Fast Ethernet industry performance standard.
Magnetics are 100% electrically tested for HI-POT and continuity.
Meets or exceeds IEEE 802.3 and ANSI X3.263 standards including 350 µH minimum OCL with 8 mA bias.
Recognized by UL 60950-1.
| Part Number | Data Rate | Turns Ratio | LEDs | Insertion Loss (dB MAX) | Return Loss (dB MIN) 100Ω ± 15Ω | |||
|---|---|---|---|---|---|---|---|---|
| TX | RX | L/R | 1-100 MHz | 1-30 MHz | 30-60 MHz | 60-80 MHz | ||
| 45F-0102DYD2NL | 10/100 | 1CT: 1 | 1CT: 1CT | G-O/Y | -1.0 | -18 | -16 | -12 |
| 45F-0202GDD2NL | 10/100/1000 | 1CT: 1 | 1CT: 1 | G/G-O | -1.0 | -18 | -16 | -12 |
| Part Number | Crosstalk (dB TYP) | Common Mode Rejection (dB TYP) | Hipot (Vrms) | |||
|---|---|---|---|---|---|---|
| 1-10 MHz | 32-60 MHz | 60-100 MHz | 1-50 MHz | 50-100 MHz | @ 60Hz | |
| 45F-10102DYD2NL | -40 | -35 | -30 | -30 | -20 | 1500 |
| 45F-10202GDD2NL | -40 | -40 | -35 | -30 | -25 | 1500 |
Files Download
45F-Series.pdf
