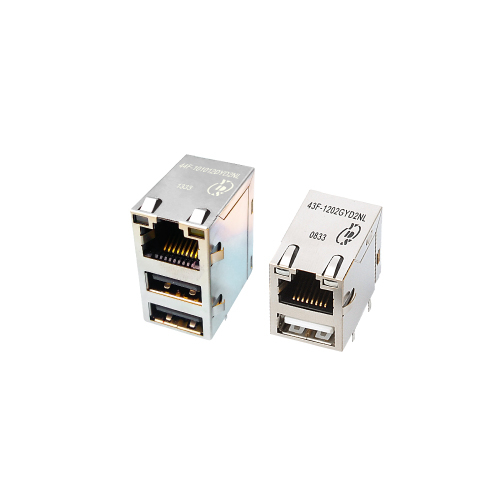

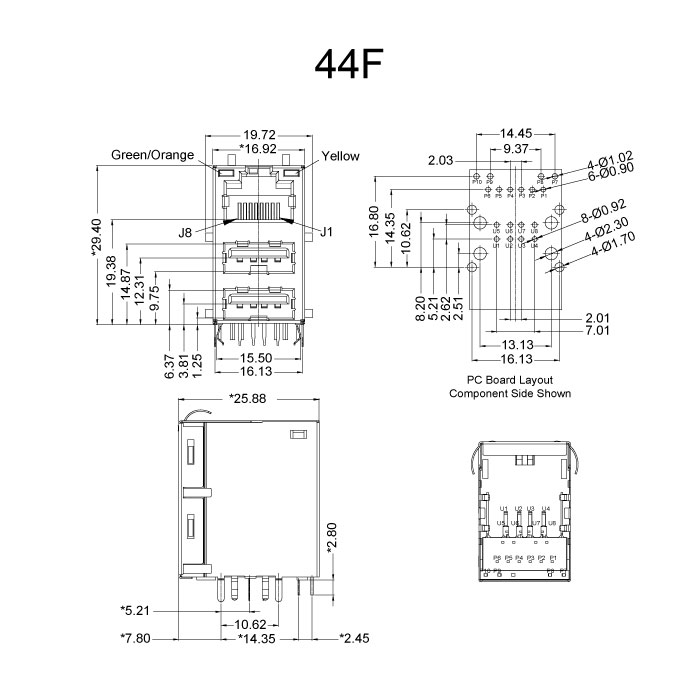

10/100 Base-T TAB Up USB Integrated RJ45 Connector
LAN interface suitable for 10/100Base-TX applications.
RJ45/USB stacked design saves on PCB real estate.
USB module complies with USB 2.0 standards and meets CAT5 fast ethernet industry performance standard.
Magnetics are 100% electrically tested for HI-POT and continuity.
Meets or exceeds IEEE 802.3 and ANSI X3.263 standards including 350 µH minimum OCL with 8 mA bias.
| Part Number | Turns Ratio (± 5%) | Insertion Loss (dB MAX) | Return Loss (dB MIN @100Ω±15Ω) | ||
|---|---|---|---|---|---|
| 1-100 MHz | 1-30 MHz | 30-60 MHz | 60-80 MHz | ||
| 43F-1201DYD2NL | 1CT: 1CT | -1.0dB | -18dB | -18 + 20Log (F/30MHz) | -12dB |
| 44F-10107DYD2NL | 1CT: 1CT | -1.2dB | -16dB | -12 | -10dB |
| Part Number | Crosstalk (dB TYP) | CMR (dB MIN) | Hipot (Vrms) |
|---|---|---|---|
| 1-100 MHz | 1-100 MHz | @ 60Hz | |
| 43F-1201DYD2NL | -35dB | -30dB | 1500 |
| 44F-10107DYD2NL | -30dB | -30dB | 1500VAC or 2250VDC |
Files Download
43F-44F Series.pdf
