12DC-3W Series
YDS
High Efficient 3W 7PIN SIP Package 1.5KVdc~6KVdc Isolation DC-DC Converter
Features
7PIN SIP Package.
No-load input current as low as 8mA.
Continuous short-circuit protection.
High Efficiency up to 88%.
Unregulated Output Types.
1.5KVDC ~ 6KVDC Isolation.
Operating Temperature:-40℃ to +85℃.
Industry Standard Pinout.
Design refer to IEC62368, UL62368, EN62368.
Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) |
---|---|---|---|---|
Vdc | mA | %TYP | Max. | |
12DC-12S05NP3(H3) | 5 | 600 | 85 | 1000 |
12DC-12S12NP3(H3) | 12 | 250 | 87 | 220 |
12DC-12S15NP3(H3) | 15 | 200 | 88 | 220 |
12DC-12S24NP3(H3) | 24 | 125 | 88 | 47 |
12DC-12D05NP3(H3) | ± 5 | ± 300 | 86 | ± 560 |
12DC-12D12NP3(H3) | ± 12 | ± 125 | 86 | ± 100 |
12DC-12D15NP3(H3) | ± 15 | ± 100 | 88 | ± 100 |
12DC-12D24NP3(H3) | ± 24 | ± 63 | 88 | ± 22 |
12DC-15S05NP3(H3) | 5 | 600 | 85 | 1000 |
12DC-15S12NP3(H3) | 12 | 250 | 87 | 220 |
12DC-15S15NP3(H3) | 15 | 200 | 88 | 220 |
12DC-15S24NP3(H3) | 24 | 125 | 88 | 47 |
12DC-15D05NP3(H3) | ± 5 | ± 300 | 86 | ± 560 |
12DC-15D12NP3(H3) | ± 12 | ± 125 | 86 | ± 100 |
12DC-15D15NP3(H3) | ± 15 | ± 100 | 88 | ± 100 |
12DC-15D24NP3(H3) | ± 24 | ± 63 | 88 | ± 22 |
12DC-24S05NP3(H3) | 5 | 600 | 85 | 1000 |
12DC-24S12NP3(H3) | 12 | 250 | 87 | 220 |
12DC-24S15NP3(H3) | 15 | 200 | 88 | 220 |
12DC-24S24NP3(H3) | 24 | 125 | 88 | 47 |
12DC-24D05NP3(H3) | ± 5 | ± 300 | 86 | ± 560 |
12DC-24D12NP3(H3) | ± 12 | ± 125 | 86 | ± 100 |
12DC-24D15NP3(H3) | ± 15 | ± 100 | 88 | ± 100 |
12DC-24D24NP3(H3) | ± 24 | ± 63 | 88 | ± 22 |
Note:
1:No suffix is standard isolation (1.5KVDC) e.g, 12DC-12S05NP3,
*add suffix“H3” for 3KVDC isolation,*add suffix“H4” for 4KVDC isolation, *add suffix“H5” for 5.2KVDC isolation,
*add suffix“H6” for 6KVDC isolation, e.g, 12DC-12S05NP3H3, 12DC-24D24NP3H6.
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Range | Vo,Io Nom | ± 10 | % | ||
Filter | Capacitor |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Voltage Tolerance | 100% full load | ± 5 | % | ||
Short Circuit Protection | Continuous | ||||
Line Regulation | For 1.0% OF Vin | 1.2 | % | ||
Load Regulation | 5V(10% To 100% F.L) | 9 | 15 | % | |
12V(10% To 100% F.L) | 7 | 10 | % | ||
15V(10% To 100% F.L) | 6 | 10 | % | ||
24V(10% To 100% F.L) | 5 | 10 | % | ||
Ripple & Noise | BW=DC To 20MHz | 100 | 150 | mVp-p |
Parameters | Conditions | Min | Typ | Max | Units |
---|---|---|---|---|---|
Isolation Resistance | 500Vdc | 1000 | MΩ | ||
Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
Switching Frequency | Full load, nominal input | 250 | KHz | ||
Operating Temperature | -40 | +85 | ℃ | ||
Storage Temperature | -55 | +125 | ℃ | ||
Humidity | Non Condensing | 95 | % | ||
Cooling | Free air Convection | ||||
Case material | DAP | ||||
MTBF | MIL-HDBK-217F @25℃ | 3500000 | Hours | ||
Weight | 2.7 | g | |||

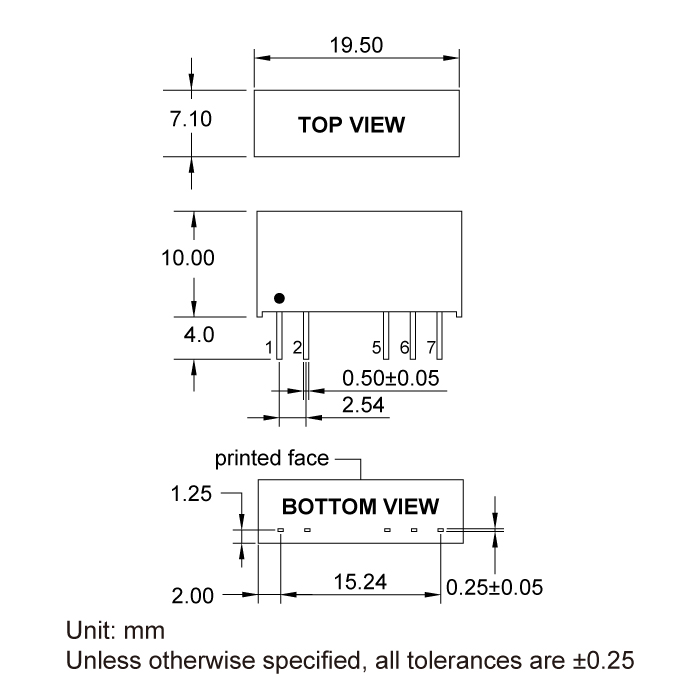

Dimensions | 19.5 x 7.1 x 10.0 | mm |
