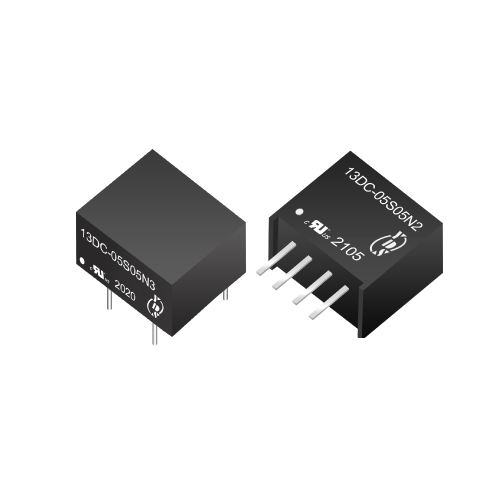

13DC Series
YDS
1W High Efficient SIP/DIL Package 1.5KVdc~3KVdc Isolation Power Conversion
4PIN SIP & 8PIN DIL package.
No-load input current as low as 5mA.
Continuous short-circuit protection.
High efficiency of up to 87%.
Unregulated output types.
1.5KVDC & 3KVDC Isolation.
Operating temperature from -40°C to + 105°C.
Industry standard pinout.
UL/cUL/IEC/EN 62368-1 approved, CB-Report.
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) | Package Style |
|---|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | ||
| 13DC-05S03NY(P)(H3) | 3.3 | 303 | 76 | 2400 | 1/2/3 |
| 13DC-05S05NY(P)(H3) | 5 | 200 | 82 | 2400 | 1/2/3 |
| 13DC-05S09NY(P)(H3) | 9 | 112 | 83 | 1000 | 1/2/3 |
| 13DC-05S12NY(P)(H3) | 12 | 84 | 84 | 470 | 1/2/3 |
| 13DC-05S15NY(P)(H3) | 15 | 67 | 84 | 330 | 1/2/3 |
| 13DC-05S24NY(P)(H3) | 24 | 42 | 85 | 100 | 2/3 |
| 13DC-05D03N3(P)(H3) | ± 3.3 | ± 151 | 76 | ± 1200 | 3 |
| 13DC-05D05N3(P)(H3) | ± 5 | ± 100 | 82 | ± 1200 | 3 |
| 13DC-05D09N3(P)(H3) | ± 9 | ± 56 | 83 | ± 470 | 3 |
| 13DC-05D12N3(P)(H3) | ± 12 | ± 42 | 84 | ± 220 | 3 |
| 13DC-05D15N3(P)(H3) | ± 15 | ± 34 | 84 | ± 1000 | 3 |
| 13DC-05D24N3(P)(H3) | ± 24 | ± 21 | 85 | ± 47 | 3 |
| 13DC-XXS03NYP(H3) | 3.3 | 303 | 78 | 2400 | 1/2/3 |
| 13DC-XXS05NYP(H3) | 5 | 200 | 82 | 2400 | 1/2/3 |
| 13DC-XXS09NYP(H3) | 9 | 112 | 85 | 1000 | 1/2/3 |
| 13DC-XXS12NYP(H3) | 12 | 84 | 85 | 680 | 1/2/3 |
| 13DC-XXS15NYP(H3) | 15 | 67 | 87 | 330 | 1/2/3 |
| 13DC-XXS24NYP(H3) | 24 | 42 | 85 | 220 | 2/3 |
| 13DC-XXD03N3P(H3) | ± 3.3 | ± 151 | 78 | ± 1200 | 3 |
| 13DC-XXD05N3P(H3) | ± 5 | ± 100 | 82 | ± 1200 | 3 |
| 13DC-XXD09N3P(H3) | ± 9 | ± 56 | 85 | ± 680 | 3 |
| 13DC-XXD12N3P(H3) | ± 12 | ± 42 | 85 | ± 330 | 3 |
| 13DC-XXD15N3P(H3) | ± 15 | ± 34 | 87 | ± 220 | 3 |
| 13DC-XXD24N3P(H3) | ± 24 | ± 21 | 85 | ± 100 | 3 |
Note：
1. No suffix is standard isolation (1.5KVDC) e.g, 13DC-15S05NP, *add suffix “H3” for 3KVDC isolation, e.g, 13DC-12S05NPH3, 13DC-15S12NPH3,
Y = 1 or 2 or 3 for package, No suffix Y package1,When Y=2, package2, and so on. e.g,13DC-12S05N2P,13DC-24S12N3PH3.
When the I / O is equal to 24 V, package 1 disable.
2. No suffix P is No short circuit protection，e.g, 13DC-05S05N， *add suffix “P” for short circuit protection, e.g, 13DC-05S05N2P, 13DC-05S12N3PH3.
3: ”XX” Is Input Voltage : 12=12Vdc,15=15Vdc, 24=24Vdc. e.g, 13DC-12S05N3P, 13DC-15S12NPH3, 13DC-24S15N2P
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Range | Vo,Io Nom@Vin:5V | ± 10 | % | ||
| Vo,Io Nom@Vin:12V,15V,24V | ± 20 | % | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | without suffix "P" | 1 | Sec | ||
| With Suffix "P" | Continuous | ||||
| Line Regulation | For 1.0% OF Vin | 1.2 | % | ||
| Load Regulation | 3.3V(10% To 100% F.L) | 15 | 20 | % | |
| 5V(10% To 100% F.L) | 10 | 15 | % | ||
| 9V(10% To 100% F.L) | 8 | 10 | % | ||
| 12V(10% To 100% F.L) | 7 | 10 | % | ||
| 15V(10% To 100% F.L) | 6 | 10 | % | ||
| 24V(10% To 100% F.L) | 5 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz @Vo:3.3V,5V,9V,12V,15V | 30 | 75 | mVp-p | |
| BW=DC To 20MHz @Vo:24V | 50 | 100 | mVp-p | ||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input @5V Vin | 370 | KHz | ||
| Full load, nominal input @other Vin | 250 | KHz | |||
| Operation Temperature | -40 | +105 | ℃ | ||
| Storage Temperature | -55 | +125 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 3500000 | Hours | ||
| Weight | Package 1/2/3 | 1.1/1.5/1.5 | g | ||

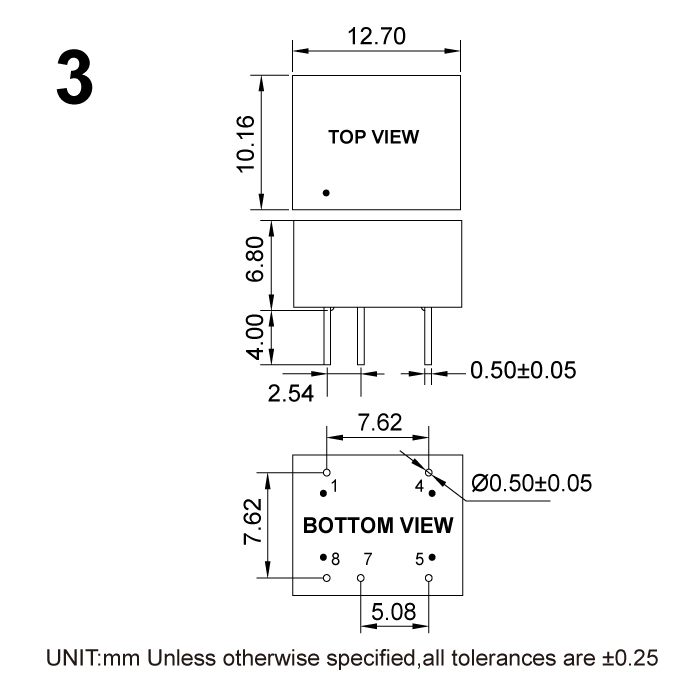

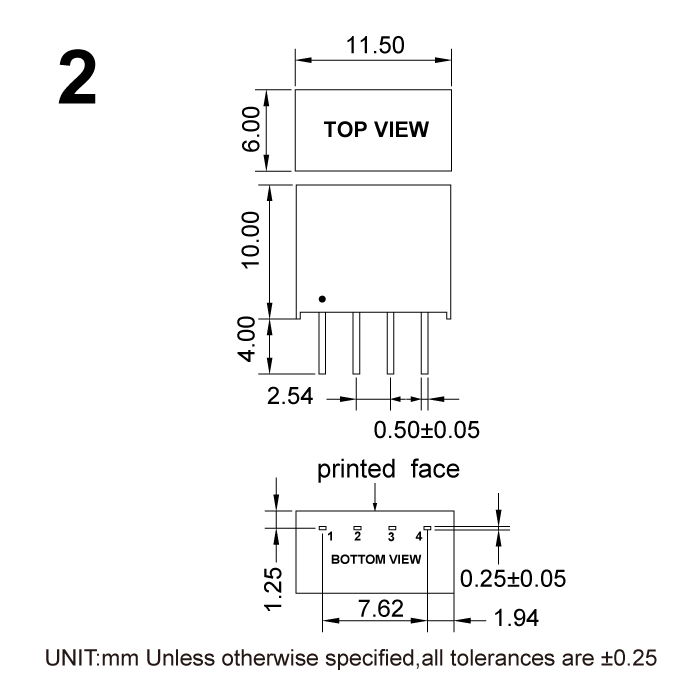

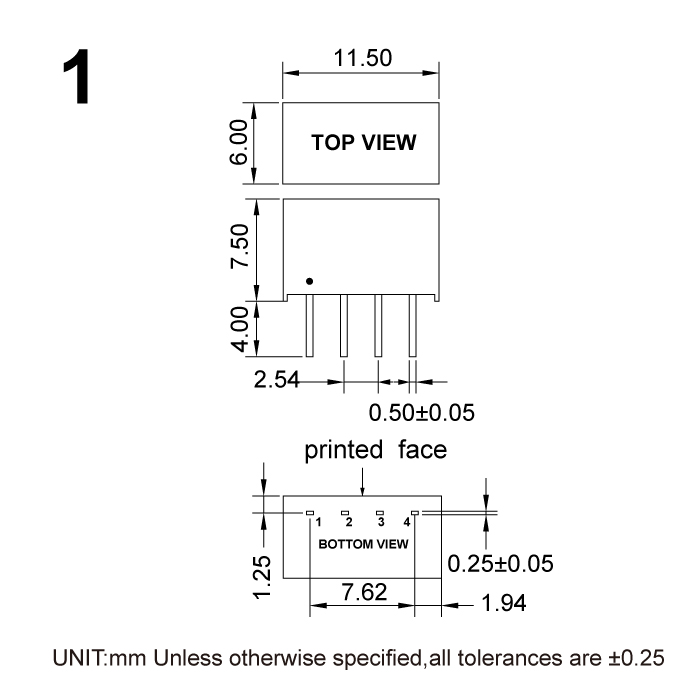

| Dimensions | Package 1 | 11.5x6.0x7.5 | mm | ||
| Package 2 | 11.5x6.0x10.0 | mm | |||
| Package 3 | 12.7x10.16x6.8 | mm | |||
