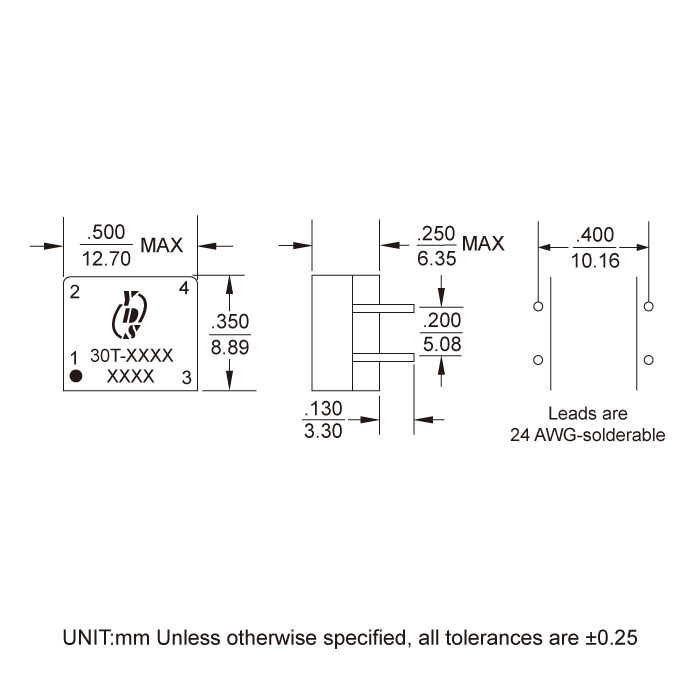

30T/30TB Series
YDS
Digital Audio Data Transmission Electronic Transformer
Operating Transmission rates:1 to 7 Mbps.
Controlled rise time:25nsec max.
High isolation voltage :2KV min.
Recognized by UL 60950-1.
Inductance -------------- 100KHz/50mV.
Leakage Inductance -----100KHz/50mV.
| Part Number | Tums Ratio (± 5%) | Primary Inductance (mH± 20%) | LL SEC. (μH max.) | Rise Time (nsec) max | Et (V-μ sec) max | HI POT Vrms | Schematic |
|---|---|---|---|---|---|---|---|
| 30T-2521ANL | 1:1 | 2.5 | 0.50 | 25 | 20 | 2000 | A |
| 30TB-2521BNL | 1:1 | 2.5 | 0.50 | 25 | 20 | 2000 | B |
Files Download
30T-30TB-Series.pdf
Digital Audio Data Transmission Electronic Transformer
Operating Transmission rates:1 to 7 Mbps.
Controlled rise time:25nsec max.
High isolation voltage :2KV min.
Recognized by UL 60950-1.
Inductance -------------- 100KHz/50mV.
Leakage Inductance -----100KHz/50mV.
| Part Number | Tums Ratio (± 5%) | Primary Inductance (mH± 20%) | LL SEC. (μH max.) | Rise Time (nsec) max | Et (V-μ sec) max | HI POT Vrms | Schematic |
|---|---|---|---|---|---|---|---|
| 30T-2521ANL | 1:1 | 2.5 | 0.50 | 25 | 20 | 2000 | A |
| 30TB-2521BNL | 1:1 | 2.5 | 0.50 | 25 | 20 | 2000 | B |
Files Download
30T-30TB-Series.pdf
