30FB-10G series
YDS
10G Base-T 24 PIN SMD Package Internet Filter
Designed for long haul Gigabit Ethernet 10G Base-T, full duplex applications.
Supports 4 pairs of category 5 UTP cable.
Cable interface for isolation and low common mode emissions.
Compliant with IEEE 802.3an standard.
Recognized by UL 60950-1.
| Part Number | Insertion Loss (dB TYP) | Return Loss (dB @100Ω) | CDMR (dB TYP) | CMR (dB TYP) | Crosstalk (dB TYP) | Hipot (Vrms MIN) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-300 MHz | 300-400 MHz | 400-500 MHz | 1-40 MHz | 40-500 MHz | 1-500 MHz | -- | -- | -- | 1-100 MHz | 100-500 MHz | ||

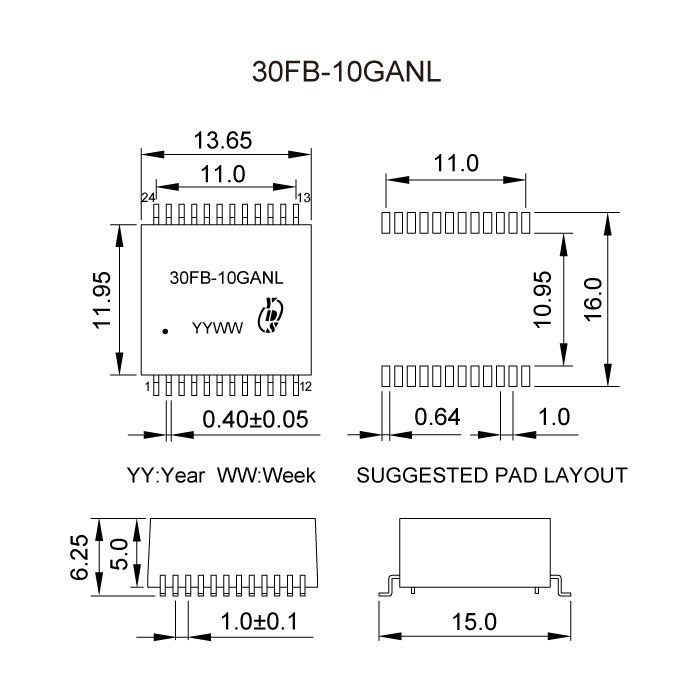

| 30FB-10GANL | -1.0 | -1.2 | -2.0 | -18(MIN) | -17+10log(f/40MHz)(MIN) | -22 | -- | -- | -- | -40 | -30 | 1500 |
| Part Number | Insertion Loss (dB TYP) | Return Loss (dB @100Ω) | CDMR (dB TYP) | CMR (dB TYP) | Crosstalk (dB TYP) | Hipot (Vrms MIN) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 KHz | 1-500 MHz | 1 MHz | 2-100 MHz | 100-200 MHz | 200-400 MHz | 400-500 MHz | 1-250 MHz | 250-500 MHz | 1-100 MHz | 100-300 MHz | 300-500 MHz | 1-100 MHz | 100-500 MHz | ||

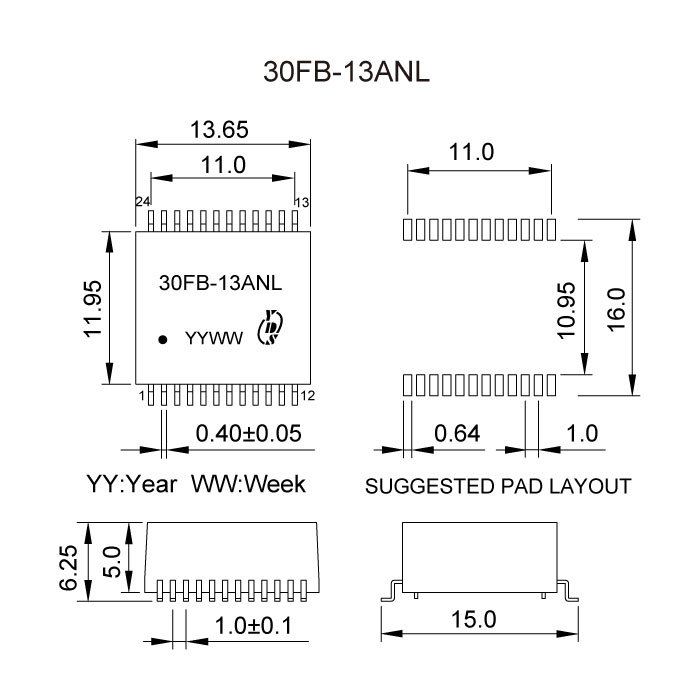

| 30FB-13ANL | -3.0 | -2.0 | -22 (TYP) | -25 (TYP) | -22 (TYP) | -11 (TYP) | -8 (TYP) | -30 | -22 | -35 | -30 | -25 | -40 | -30 | 1500 |
| Part Number | Insertion Loss (dB TYP) | Return Loss (dB TYP@100Ω) | CDMR (dB TYP) | CMR (dB TYP) | Crosstalk (dB TYP) | Hipot (Vrms MIN) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-300 MHz | 300-400 MHz | 400-500 MHz | 1-40 MHz | 40-500 MHz | 1-500 MHz | -- | -- | -- | 1-100 MHz | 100-500 MHz | ||||||||
| 30FB-13CNL | -1.0 | -1.2 | -2.0 | -18 | -17+10log(f/40MHz) | -22 | -- | -- | -- | -40 | -30 | 1500 | ||||||
Files Download
30FB-10G-Series.pdf
