30F-3X/5X series
YDS
10/100/1000 Base-T PC Card Internet Filter
Designed for long haul Gigabit Ethernet 100/1000 Base-T, full duplex applications.
Supports 4 pairs of category 5 UTP cable.
Recognized by UL 60950-1.
Cable interface for isolation and low common mode emissions.
Meets all IEEE 802.3 and ANSI X3.236 standards including 350uH OCL with 8mA bias.
| Part Number | Insertion Loss (dB MAX) | Return Loss (dB min @100Ω) | Differential to Common Mode (dB min) | Crosstalk (dB min) | Hipot (Vrms min) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-100 MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 30F-30NL | -1.0 | -18 | -14.4 | -13.1 | -12 | -10 | -43 | -37 | -33 | -45 | -40 | -35 | 1500 |
| 30F-50NL | -1.0 | -18 | -14.4 | -13.1 | -12 | -10 | -43 | -37 | -33 | -45 | -40 | -35 | 1500 |
| 30F-51NL | -1.0 | -18 | -14.4 | -13.1 | -12 | -10 | -43 | -37 | -33 | -45 | -40 | -35 | 1500 |

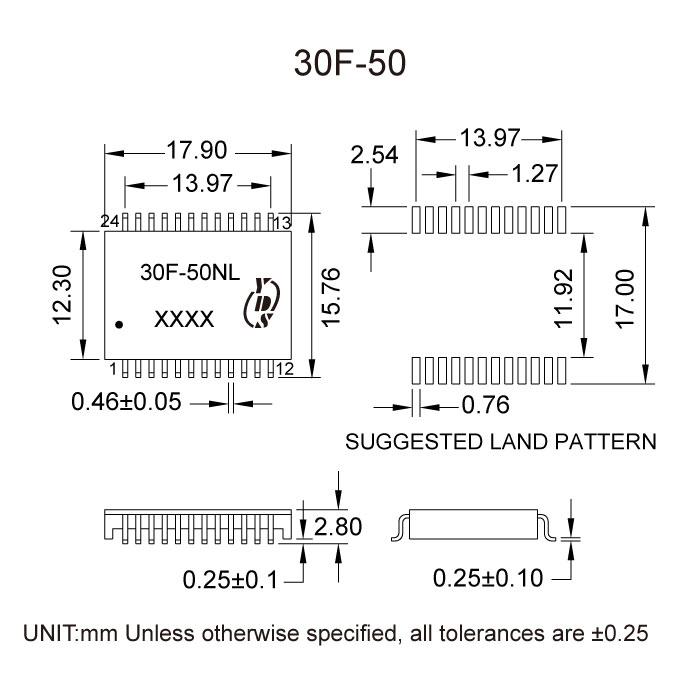

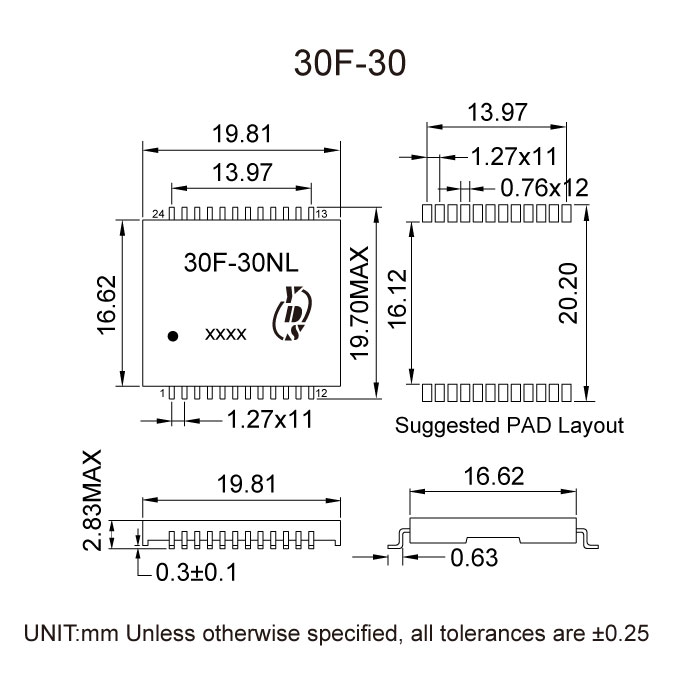

Dimension
Files Download
30F-3X-5X-Series.pdf
10/100/1000 Base-T PC Card Internet Filter
Designed for long haul Gigabit Ethernet 100/1000 Base-T, full duplex applications.
Supports 4 pairs of category 5 UTP cable.
Recognized by UL 60950-1.
Cable interface for isolation and low common mode emissions.
Meets all IEEE 802.3 and ANSI X3.236 standards including 350uH OCL with 8mA bias.
| Part Number | Insertion Loss (dB MAX) | Return Loss (dB min @100Ω) | Differential to Common Mode (dB min) | Crosstalk (dB min) | Hipot (Vrms min) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-100 MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 30F-30NL | -1.0 | -18 | -14.4 | -13.1 | -12 | -10 | -43 | -37 | -33 | -45 | -40 | -35 | 1500 |
| 30F-50NL | -1.0 | -18 | -14.4 | -13.1 | -12 | -10 | -43 | -37 | -33 | -45 | -40 | -35 | 1500 |
| 30F-51NL | -1.0 | -18 | -14.4 | -13.1 | -12 | -10 | -43 | -37 | -33 | -45 | -40 | -35 | 1500 |
Dimension
Files Download
30F-3X-5X-Series.pdf
