2W SMD Package 3KVdc Isolation High Efficient DC-DC Converter

Availability:
Quantity:
  • 13DS1C-2W Series

  • YDS

High Efficient 2W 18PIN/22PIN SMD Package DC-DC Converter


Features


18PIN & 22PIN SMD package.

No-load input current as low as 5mA.

Continuous short-circuit protection.

High efficiency of up to 89%.

Unregulated output types.

1.5KVDC & 3KVDC Isolation.

Operating temperature from -40°C to + 105°C.

Industry standard pinout.

Design refer to IEC62368, UL62368, EN62368.




Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified


Part Number Output Voltage Output Current Efficiency Capacitive Load(μF) Package Style
Vdc mA %TYP Max.
13DS1C-05S05NYP2(H3) 5 400 84 2400 1/2/3
13DS1C-05S09NYP2(H3) 9 223 85 820 1/2/3
13DS1C-05S12NYP2(H3) 12 167 85 470 1/2/3
13DS1C-05S15NYP2(H3) 15 133 86 220 1/2/3
13DS1C-05S24NYP2(H3) 24 84 87 100 1/2/3
13DS1C-05D05NYP2(H3) ± 5 ± 200 82 ± 1200 1/2/3
13DS1C-05D09NYP2(H3) ± 9 ± 112 85 ± 330 1/2/3
13DS1C-05D12NYP2(H3) ± 12 ± 84 85 ± 330 1/2/3
13DS1C-05D15NYP2(H3) ± 15 ± 67 87 ± 100 1/2/3
13DS1C-05D24NYP2(H3) ± 24 ± 42 88 ± 47 1/2/3
13DS1C-XXS05NYP2(H3) 5 400 85 2400 1/2/3
13DS1C-XXS09NYP2(H3) 9 223 87 820 1/2/3
13DS1C-XXS12NYP2(H3) 12 167 87 470 1/2/3
13DS1C-XXS15NYP2(H3) 15 133 88 220 1/2/3
13DS1C-XXS24NYP2(H3) 24 84 89 100 1/2/3
13DS1C-XXD05NYP2(H3) ± 5 ± 200 82 ± 1200 1/2/3
13DS1C-XXD09NYP2(H3) ± 9 ± 112 85 ± 330 1/2/3
13DS1C-XXD12NYP2(H3) ± 12 ± 84 87 ± 330 1/2/3
13DS1C-XXD15NYP2(H3) ± 15 ± 67 88 ± 100 1/2/3
13DS1C-XXD24NYP2(H3) ± 24 ± 42 89 ± 47 1/2/3

Note:

1. No suffix is standard isolation (1.5KVDC) e.g, 13DS1C-12S05NP2,

    *add suffix “H3” for 3KVDC isolation, e.g, 13DS1C-12S05NP2H3, 13DS1C-15S12NP2H3.

2. Y = 1 or 2 or 3 for package, no suffix X package1, when Y=2, package2, and so on,

    e.g,13DS1C-24S05N2P2,13DS1C-15S12N3P2H3.

3. ”XX” is input voltage : 12=12Vdc,15=15Vdc, 24=24Vdc. e.g, 13DS1C-12S05N2P2, 13DS1C-15S12N2P2H3.




Input Specifications


Parameters Conditions Min Typ Max Units
Voltage Range Vo,Io Nom   ± 10   %
Filter Capacitor


Output Specifications


Parameters Conditions Min Typ Max Units
Voltage Tolerance 100% full load     ± 5 %
Short Circuit
Protection
Continuous
Line Regulation For 1.0% OF Vin   1.2   %
Load Regulation 5V(10% To 100% F.L)   8 15 %
9V(10% To 100% F.L)   6 10 %
12V(10% To 100% F.L)   5 10 %
15V(10% To 100% F.L)   4 10 %
24V(10% To 100% F.L)   3 10 %
Ripple & Noise BW=DC To 20MHz   75 150 mVp-p


General Specifications


Parameters Conditions Min Typ Max Units
Isolation Resistance 500Vdc 1000
Isolation Capacitance Input-output,100KHz/0.1V   20   pF
Switching Frequency Full load, nominal input
@5V Vin
  215   KHz
Full load, nominal input
@other Vin
  250   KHz
Operation Temperature   -40   +105
Storage Temperature   -55   +125
Humidity Non Condensing     95 %
Cooling Free air Convection
Case material DAP
MTBF MIL-HDBK-217F @25℃ 3500000     Hours
Weight Package 1/2/3 1.36 g
Dimensions Package 1/2/3 15.24X8.0X7.3 mm



Dimension

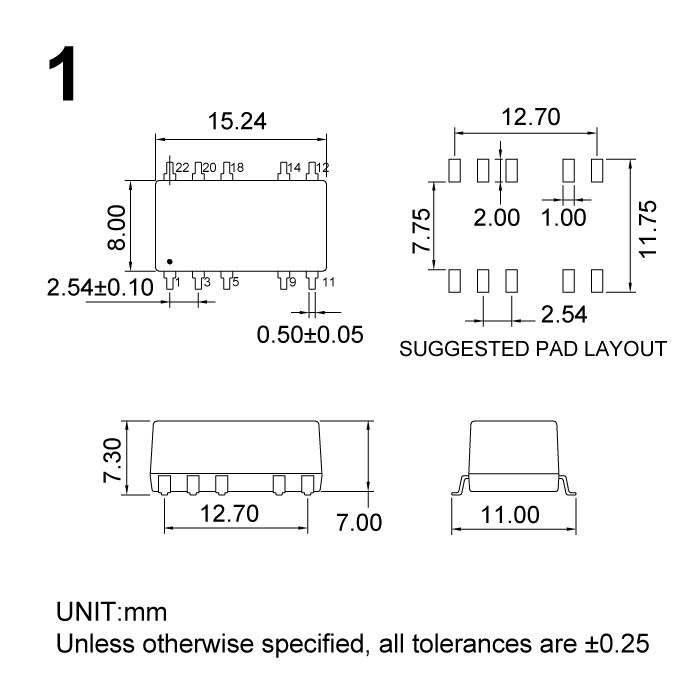

13DS1C-2W-01

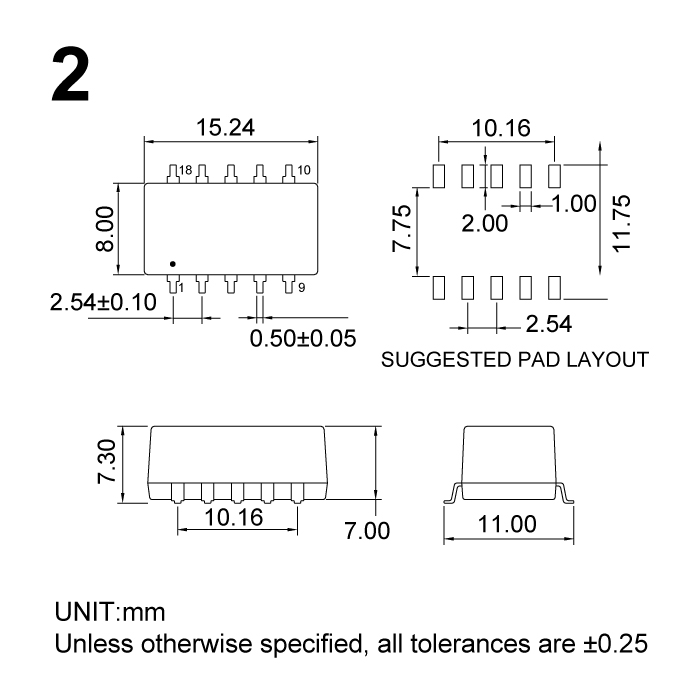

13DS1C-2W-02

13DS1C-2W-03





 Files Download     13DS1C-2W-Series.pdf
