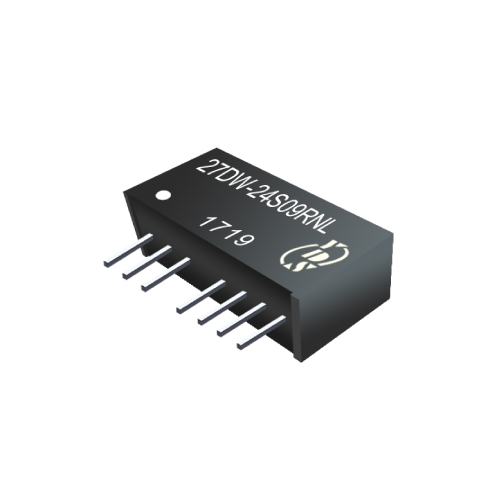

27DW-Single Series
YDS
2W 4:1 Single Output SIP DC to DC Power Conversion
4:1 wide input voltages range.
High efficiency up to 80%.
Regulated output types.
Low ripple and noise.
Internal SMD construction.
1KVDC & 3KVDC Isolation.
Operating temperature:-40°C to +85°C.
Industry standard pinout.
Continuous short circuit protection with current foldback.
| Part Number | Input Voltage Range | Output Voltage Range | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %Typ | |
| 27DW-24S05RNL/3KV | 9-36 | 5 | 400 | 75 |
| 27DW-24S09RNL/3KV | 9-36 | 9 | 222 | 80 |
| 27DW-24S12RNL/3KV | 9-36 | 12 | 167 | 80 |
| 27DW-24S15RNL/3KV | 9-36 | 15 | 133 | 80 |
| 27DW-24S24RNL/3KV | 9-36 | 24 | 84 | 80 |
| 27DW-48S05RNL/3KV | 18-75 | 5 | 400 | 70 |
| 27DW-48S09RNL/3KV | 18-75 | 9 | 222 | 80 |
| 27DW-48S12RNL/3KV | 18-75 | 12 | 167 | 80 |
| 27DW-48S15RNL/3KV | 18-75 | 15 | 133 | 80 |
| 27DW-48S24RNL/3KV | 18-75 | 24 | 84 | 80 |
NOTE: No suffix is standard isolation (1KVDC) e.g, 27DW-24S05RNL ，*add suffix /3KV for 3KVDC isolation, e.g, 27DW-24S05R3KV
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Vo,Io Nom | 4:1 | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 3 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 0.8 | % | ||
| Ripple & Noise | Output:5-9V Types BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output:12-24V Types BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 1500000 | Hours | ||
| Weight | 4.5 | g | |||

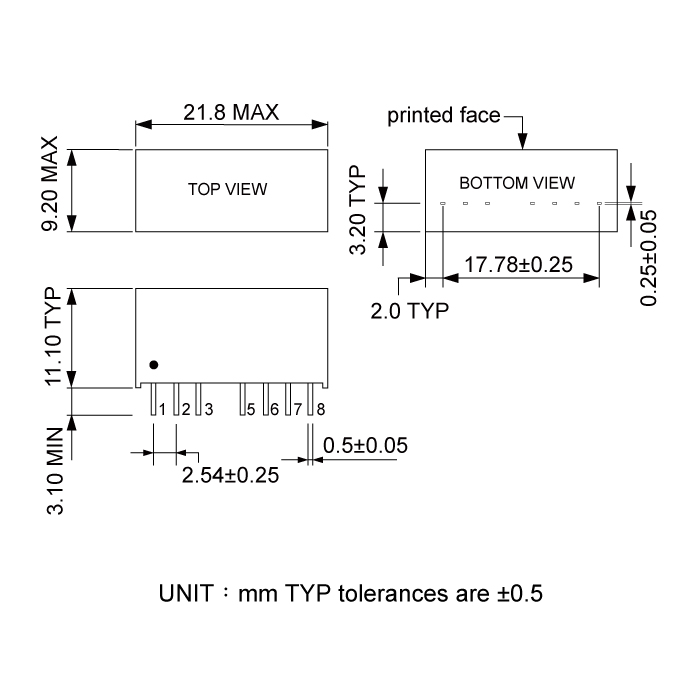

| Dimensions | 21.8 x 9.2 x 11.1 | mm | |||
Files Download
27DW-Single-Series.pdf
