25TB Series
YDS
10 Base-T SMD Package Isolated electronic Transformer
Designed to meet or exceed IEEE 802.3,10 Base-T specifications.
Available with common mode chokes for EMI suppression.
Surface mount , IC grade, transfer-molded package withstands 235°C peak temperature profile.
Recognized by UL 1950.
| Part Number | Tums Ratio (±5%) (Pri:Sec) | Pri OCL (μH TYP) | Pri LL (μH Max) | Common Mode Choke | CWW (pF Max) | Pri DCR (ΩMax) | HI-Pot (Vrms) | Schem. | mech. |
|---|---|---|---|---|---|---|---|---|---|

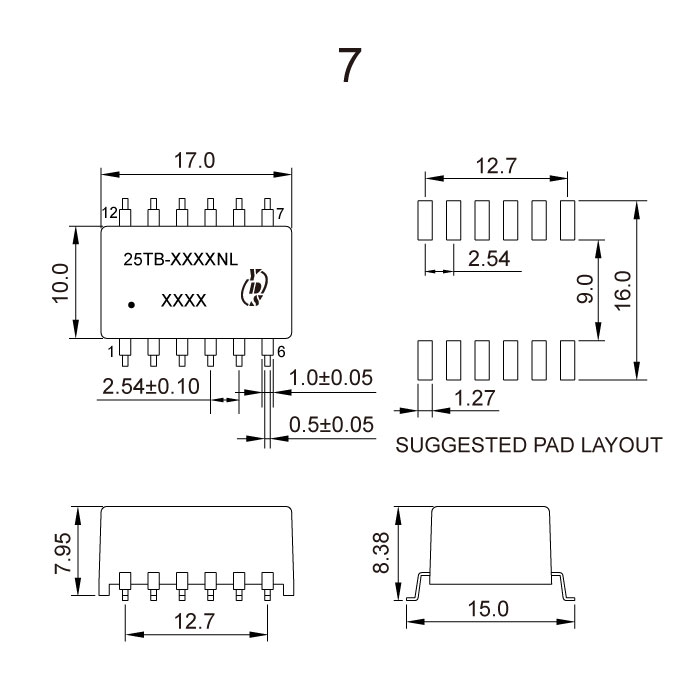

| 25TB-1411KA7NL | A=1CT:1CT ,B=1CT:1.414CT | 140 | 0.4 | X | 12 | 0.4 | 4500 | KA | 7 |

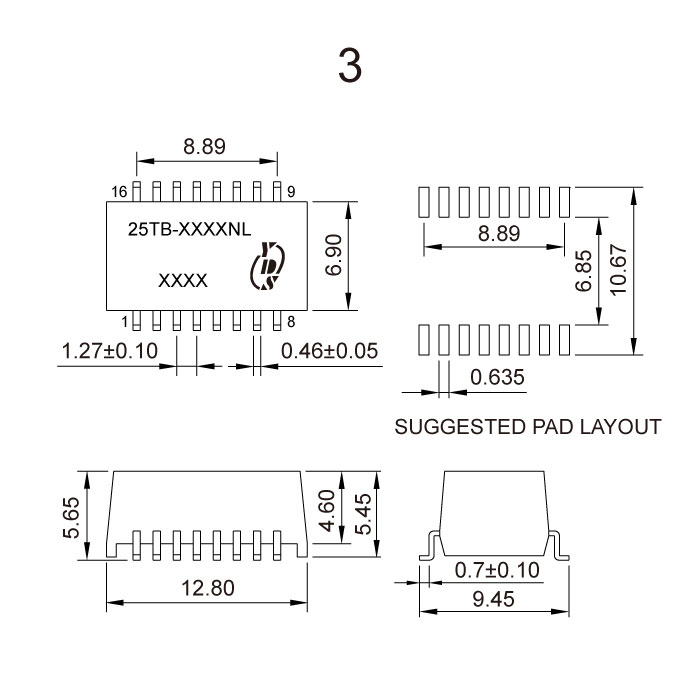

| 25TB-1513C3NL | TX=1CT:1.41CT ,RX=1CT:1CT | 150 | 0.3 | X | 20 | 0.4 | 2000 | C | 3 |
