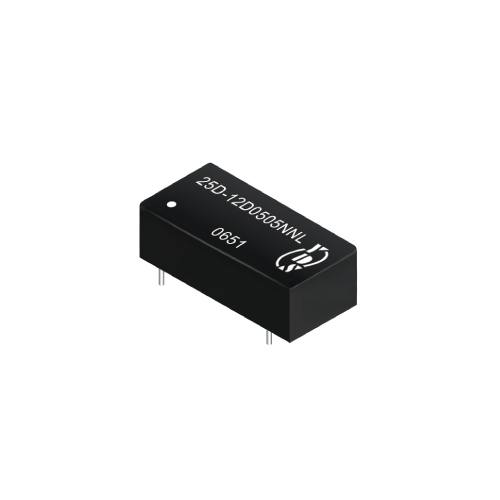

DIL Package 1KV Isolation DC/DC Power Conversion
14PIN DIL package.
High efficiency up to 85%.
Internal SMD construction.
Unregulated output types.
Operating temperature:-40℃ to +85℃.
No external component required.
Industry standard pinout.
| Part Number | Output2 | Efficiency | |
|---|---|---|---|
| Voltage (VDC) | Current (mA) | %TYP | |
| 25D-XXDXX03NNL | 3.3 | 150 | 70 |
| 25D-XXDXX05NNL | 5 | 100 | 75 |
| 25D-XXDXX09NNL | 9 | 56 | 75 |
| 25D-XXDXX12NNL | 12 | 42 | 75 |
| 25D-XXDXX15NNL | 15 | 34 | 75 |
| 25D-XXDXX24N2NL | 24 | 21 | 75 |
Note:
1.”XX” Is Voltage:03＝3.3Vdc,05=5Vdc,09=9Vdc 12=12Vdc,15=15Vdc,24=24Vdc.
2. 3.3V for output only, not for input.
3. The input voltage increases, there will be an increase in efficiency.
4. Over 24Vdc input voltage or Output voltage, using the 2nd package
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo,Io Nom | ± 5 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Short Term | 1 | Sec | ||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 3.3V,5V (10% To 100% F.L) | 15 | % | ||
| Load Regulation | 9V,12V,15V,24V (10% To 100% F.L) | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F@25℃ | 3500000 | Hours | ||
| Weight | 2.3 or 2.8 | g | |||

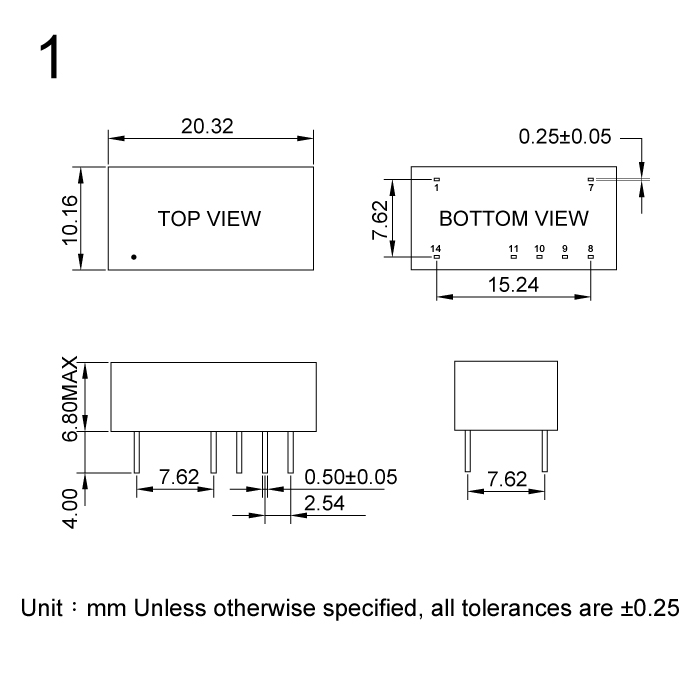

| Dimensions | 20.32 x 10.16 x 6.80 | mm | |||
| Dimensions | 20.32 x 10.16 x 7.70 | mm | |||
Files Download
25D Series.pdf
