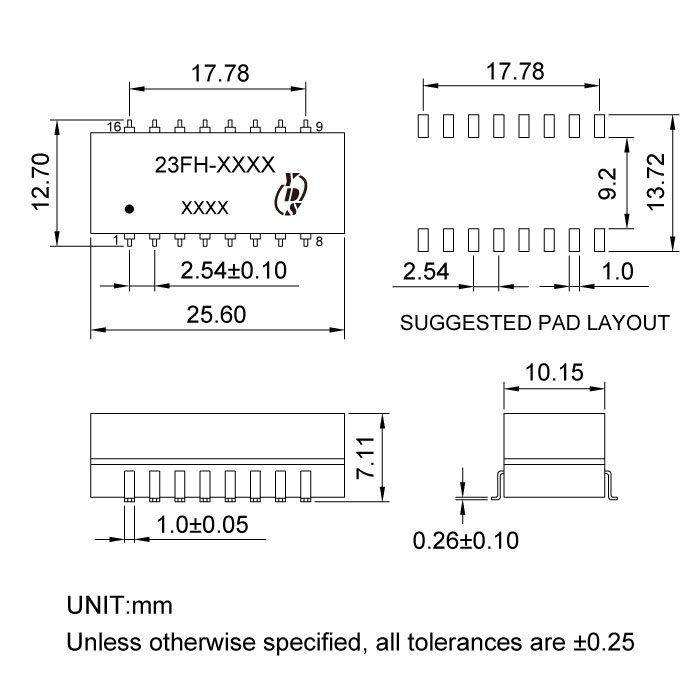

23FH series
YDS
10 Base-T SMD 16PIN Internet Filter
Low profile surface mount package.
235°C peak infrared reflow temperature rating.
| Part Number | Insertion Loss 1 to 10 MHz (dB Max.) | Attenuation (XMIT) (dB Min.) | Return Loss 5 to 10MHz (dB Min.) | Crosstalk (dB Min.) | Common Mode Rejection (dB Min.) | Hi-Pot (Vrms Min.) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 MHz | 40 MHz | 100 MHz | 100Ω | 98± 13Ω | 5-10 MHz | 5 MHz | 10 MHz | 50 MHz | 100 MHz | 200 MHz | 1500 | ||
| 23FH-02NL | -1.0 | -30 | -35 | -35 | -18 | -15 | -35 | -60 | -60 | -55 | -50 | -45 | 1500 |
| 23FH-03NL | -6.0 | -35 | -35 | -35 | -18 | -15 | -35 | -60 | -60 | -55 | -50 | -45 | 1500 |
| 23FH-04NL | -6.5 | -35 | -35 | -35 | -18 | -15 | -35 | -60 | -60 | -55 | -50 | -45 | 1500 |
| 23FH-05NL | -1.0 | -30 | -27 | -27 | -18 | -15 | -30 | -40 | -30 | -50 | -45 | - | 1500 |
| 23FH-06NL | -5.5 | -30 | -30 | -35 | -18 | -15 | -30 | -35 | -30 | -55 | -50 | - | 1500 |
| 23FH-07NL | -6.0 | -30 | -27 | -27 | -18 | -15 | -25 | -40 | -35 | -45 | -30 | - | 1500 |
| 23FH-08NL | -5.0 | -30 | -35 | -40 | -18 | -15 | -25 | -35 | -30 | -55 | -50 | - | 1500 |
| 23FH-09NL | -5.0 | -30 | -35 | -40 | -18 | -15 | -25 | -35 | -30 | -55 | -50 | - | 1500 |
| 23FH-10NL | -1.0 | -30 | -27 | -27 | -18 | -15 | -35 | -40 | -35 | -45 | -45 | - | 1500 |
| Part Number | IC Manufacturer | R1 | R2 | R3 | R4 | R5 | R6 | R7 |
|---|---|---|---|---|---|---|---|---|
| 23FH-02NL | Various | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 23FH-03NL | AMD | TXD(+)=61.9 | TXP(+)=422 | TXD(-)=61.9 | TXP(-)=422 | 1.2k | RX(+)=49.9 | RX(-)=49.9 |
| 23FH-04NL | National | TXOD(-)=274 | TXO(+)=66.5 | TXO(-)=66.5 | TXOD(+)=274 | 806 | RX(+)=49.9 | RX(-)=49.9 |
| 23FH-06NL | National | 348.0 | 53.6 | 53.6 | 348.0 | 806 | 49.9 | 49.9 |
| 23FH-07NL | AMD | 61.9 | 422.0 | 61.9 | 422.0 | 1210 | 49.9 | 49.9 |
| 23FH-08NL | LSI | 390.0 | 63.4 | 390 | 63.4 | N/A | 49.9 | 49.9 |
| 23FH-09NL | Motorola | 39.0 | N/A | 39 | N/A | N/A | 49.9 | 49.9 |
