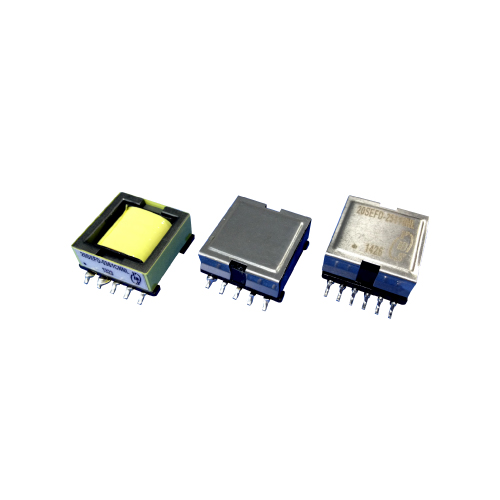

20SEFD Series PoE SMD High Frequency Wire Wound Transformer

Availability:

Quantity:


Inquire Add to Basket

Model:
20SEFD Series
Brand:
YDS

Product Description

PoE SMD High Frequency Power Transformer

Features

EFD20 Platforms-SMT.
Power Range: Up to 95W
Height: 11.5mm MAX
Footprint: 22.0mm x 29.5mm
Topology: forward and flyback and so on.
Custom designs available.

Specification

Part Number	Input	Output	Aux/bias	Oper. Freq	Turns ratio
Part Number	Input	Output	Aux/bias	(KHZ)	Pri:sec	pri:sec: aux/bias
20SEFD-0221KNL	10~57V	5V,6A	12V	250	-	1:0.50:1.17
20SEFD-0361CNNL	12V	30V,0.7A 60V,0.2A 90V,0.12A	-	250	1:3:3:3	-
20SEFD-0453KNL	9~36V	3.3V,10A	12V,20mA	200	-	3:1:3.5
20SEFD-0454KNL	9~36V	12V,3A	12V,20mA	200	-	0.86:1:1
20SEFD-0455KNL	9~36V	5V,7A	12V,20mA	200	-	1:0.5:1.165
20SEFD-0551BVNL	11~13V	24V,0.6A 9V,0.6A	10V,20mA	100	1:3.2:2	1:1.3
20SEFD-0601KNL	20~72V	12V,5A	13V,20mA	200	-	1.29:1:1
20SEFD-0721BPNL	9~36V	3.3V,3A 5V,2A	13V,50mA	250	1:0.5:0.25	1: 2
20SEFD-0721DBNL	9~36V	2.5V,3A 3.3V,3A 5V,2A	13V,50mA	250	1:0.375 1:0.125 1:0.25	1:2
20SEFD-0801CANL	20~48V	24V,1.3A	10V	200	-	2.4:2.4:1
20SEFD-0881BLNL	33~57V	5.9V,6A 3.9V,1.6A	-	200	1:0.375:0.25	1:1
20SEFD-0901AZNL	9~57V	5V,5A	10V,30mA	250	-	1:0.375:0.75
20SEFD-0902AZNL	10~57V	12V,2.1A	10V,30mA	250	-	1:0.875:0.75
20SEFD-0941SNL	18~57V	18V,1A	11V,20mA	250	-	1:1:0.64
20SEFD-1011VNL	36~72V	12V,5A	12V,20mA	250	-	2.0:1.0:0.7
20SEFD-1012VNL	36~72V	12V,5A	12V,20mA	250	-	2.0:1.0:1.0
20SEFD-1013VNL	36~72V	12V,5A	12V,20mA	250		22:11:6
20SEFD-1201CANL	30~75V	24V,1.3A	10V	250	-	1:0.67:0.33
20SEFD-1201XNL	33~57V	5V,3A 3.3V,5A 11.3V,0.5A	-	200	4.0:1.5 4.0:1.0 4.0:3.5	4.0:4.0
20SEFD-1311VNL	36~72V	5V,50W	12V,20mA	250	-	1:0.4:0.7
20SEFD-1401BWNL	30~75V	12V,2.5A	10V	200	-	1:0.4:0.33
20SEFD-1611BHNL	29.5~60V	5V,2.6A 5V,0.1A	10V,0.1A	300	1:0.42:0.42	1:0.83
20SEFD-1701KNL	37~57V	12.5V,5.0A	12V,30mA	250	-	1:0.46:0.46
20SEFD-1711BBNL	40~60V	12V,5.84A 2V,0.01A	15V,10mA	275	1:0.67:0.25	1:0.83:1
20SEFD-2101KNL	36~72V	12V,5A	13V,20mA	200	-	2.67:1:1.17
20SEFD-2511VNL	36~72V	5V,50W	12V,20mA	250		1:0.25:0.56
20SEFD-2901KNL	36~72V	5V,8A	13V,20mA	200	-	5.33:1.0:2.67
20SEFD-3111VNL	36~72V	12V,4.5A	12V,20mA	250	-	1.6:1:1
20SEFD-4001KNL	36~57V	12V,2.5A	7V	200	-	1:0.368:0.235
20SEFD-4001SNL	18~57V	5V,5A	11V,20mA	250	-	1:0.18:0.41
20SEFD-4201KNL	36~72V	5V,6A	12V,20mA	250	-	1:0.14:0.33
20SEFD-4202KNL	36~72V	12V,2.5A	12V,20mA	250	-	1:0.33:0.33
20SEFD-4203KNL	36~72V	24V,1.25A	12V,20mA	250	-	1:0.67:0.33
20SEFD-4204KNL	36~72V	3.3V,9A	12V,20mA	250	-	1:0.09:0.33
20SEFD-4205KNL	36~72V	19.5V,1.5A	12V,20mA	250	-	1:0.56:0.33
20SEFD-5002SNL	18~57V	12V,2.1A	11V,20mA	250	-	1:0.47:0.41
20SEFD-5003SNL	18~57V	24V,1.25A	11V,20mA	250	-	1:0.88:0.41
20SEFD-5004SNL	18~57V	3.3V,7.5A	11V,20mA	250	-	1:0.12:0.41
20SEFD-9001CCNL	10~57V	5V,5A	12V,20mA	250	-	1:0.8:1.9
20SEFD-9002CCNL	10~57V	12V,2A	12V,20mA	250	-	1:1.9:1.9
20SEFD-9301NNL	30~75V	5V,4.5A	12V,20mA	550	11:4:4	11:9:11

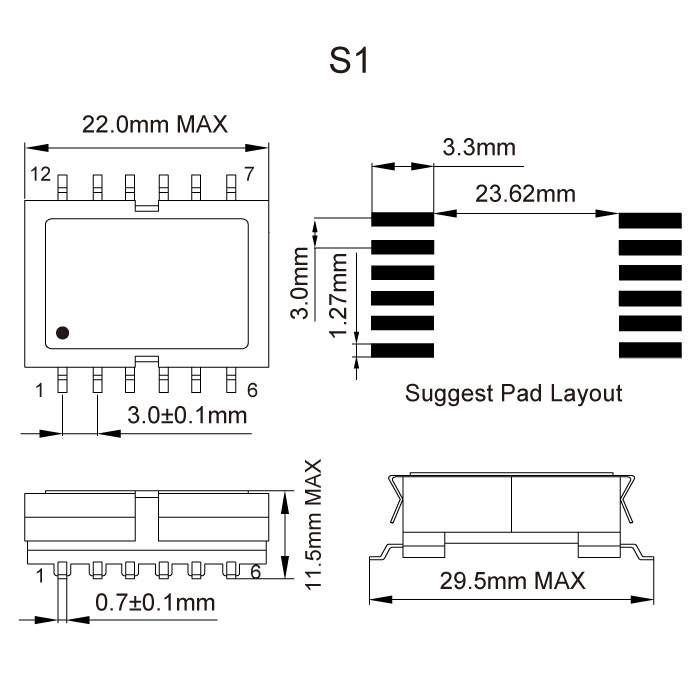

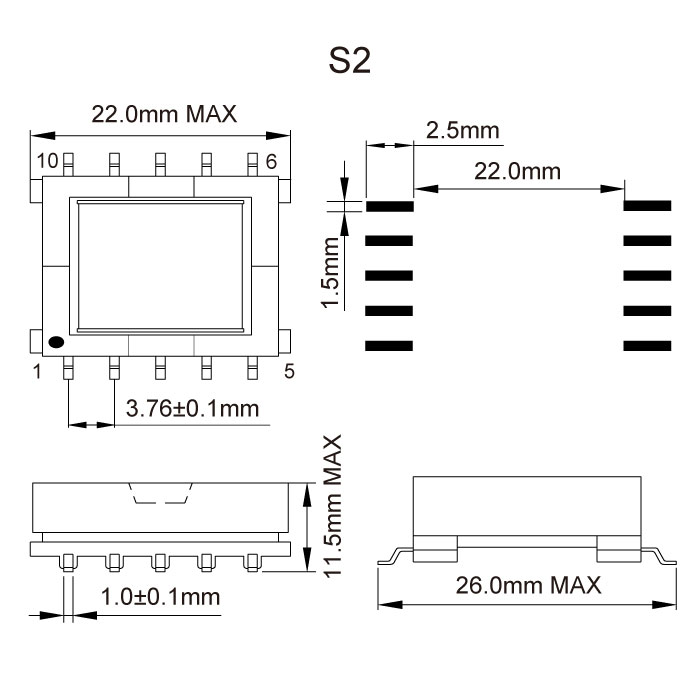

Part Number	L	DCR			Sch	Mech
	L	(Ohms MAX)
	(uH)	Pri	sec	Aux / bia
20SEFD-0221KNL	2.16 ± 10%	9.0	4.5	200	K	S1
20SEFD-0361CNNL	3.6 ± 10%	8.0	180 200 250	-	CN	S2
20SEFD-0453KNL	4.5 ± 7%	9.5	3.0	130	K	S1
20SEFD-0454KNL	4.5 ± 5%	9.5	23	130	K	S1
20SEFD-0455KNL	4.5 ± 5%	9.5	5.0	130	K	S1
20SEFD-0551BVNL	5.5 ± 10%	50	400 280	350	BV	S3
20SEFD-0601KNL	6.48 ± 5%	20	11.5	300	K	S1
20SEFD-0721BPNL	7.2 ± 5%	52	10 8.0	240	BP	S1
20SEFD-0721DBNL	7.2 ± 5%	52	9.0 3.5 9.0	240	DB	S1
20SEFD-0801CANL	8.0 ± 10%	30	35	55	CA	S1
20SEFD-0881BLNL	8.8 ± 10%	28	10 8.0	140	BL	S1
20SEFD-0901AZNL	9.0 ± 5%	18	5.0	350	AZ	S1
20SEFD-0902AZNL	9.0 ± 10%	18	50.0	350	AZ	S1
20SEFD-0941SNL	9.35 ± 10%	25	55	350	S	S1
20SEFD-1011VNL	100 ± 12%	72	15	680	V	S1
20SEFD-1012VNL	100 ± 12%	72	15	680	V	S1
20SEFD-1013VNL	100 ± 12%	110	20	680	V	S1
20SEFD-1201CANL	12.0 ± 10%	30	20	55	CA	S1
20SEFD-1201XNL	11.5 ± 10%	28	12 5.0 62	190	X	S1
20SEFD-1311VNL	130 ± 25%	45	5.0	135	V	S1
20SEFD-1401BWNL	14.0 ± 10%	40	10	70	BW	S1
20SEFD-1611BHNL	160 ± 10%	100	50 420	900	BH	S1
20SEFD-1701KNL	17 ± 10%	48	11	325	K	S1
20SEFD-1711BBNL	172.8 ± 28%	43	8.5 100	560 340	BB	S1
20SEFD-2101KNL	20.5 ± 5%	39	8.5	230	K	S1
20SEFD-2511VNL	246MIN	67	5.0	175	V	S1
20SEFD-2901KNL	28.5 ± 5%	39	3.5	230	K	S1
20SEFD-3111VNL	307 ± 25%	65	27	240	V	S1
20SEFD-4001KNL	40.0 ± 10%	80	30	180	K	S1
20SEFD-4001SNL	50.0 ± 10%	35	5	315	S	S1
20SEFD-4201KNL	42.0 ± 10%	69	5.0	225	K	S1
20SEFD-4202KNL	42.0 ± 10%	65	20	195	K	S1
20SEFD-4203KNL	42.0 ± 10%	60	55	195	K	S1
20SEFD-4204KNL	42.0 ± 10%	70	2.3	220	K	S1
20SEFD-4205KNL	42.0 ± 10%	60	37	195	K	S1
20SEFD-5002SNL	50.0 ± 10%	26	25	315	S	S1
20SEFD-5003SNL	50.0 ± 10%	26	80	315	S	S1
20SEFD-5004SNL	50.0 ± 10%	26	2.6	328	S	S1
20SEFD-9001CCNL	90MIN	18	15	320	CC	S1
20SEFD-9002CCNL	90MIN	17.5	47	320	CC	S1
20SEFD-9301NNL	93MIN	35	15/15	100	N	S1
