2.5G series
YDS

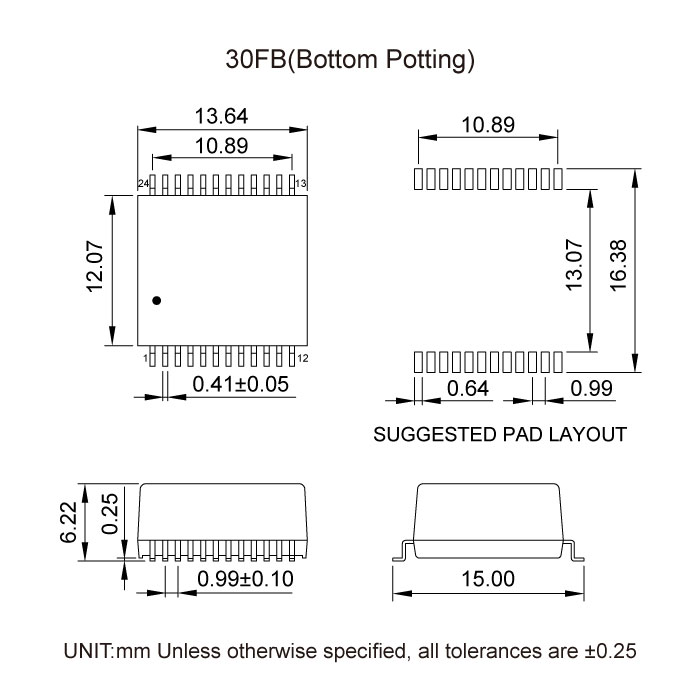

2.5G Base-T SMD Internet Filter
Designed for long haul Gigabit Ethernet 2.5G Base-T, full duplex applications.
Supports 4 pairs of category 5 UTP cable.
Cable interface for isolation and low common mode emissions.
Compliant with IEEE 802.3an standard.
Recognized by UL 60950-1.
| Part Number | Insertion Loss (dB max) | Return Loss (dB min @100Ω) | Common to Differential Mode Rejection (dB TYP) | Crosstalk (dB TYP) | Common to Mode Rejection (dB TYP) | Hipot Vrms Min | ||
|---|---|---|---|---|---|---|---|---|
| 1-50 MHz | 50-125 MHz | 1-40 MHz | 40-200 MHz | 10-125 MHz | 1-125 MHz | 30-200 MHz | ||
| 30FB-13NL | -0.5 | -1.0 | -20 | -20+15log(f/40MHz) | -45+f/35 | -39 | -30 | 1500 |
Files Download
2.5G-Series.pdf
