13DS1C Series
YDS
1W 18PIN/22PIN SMD Package High Efficient DC-DC Converter
Features
18PIN & 22PIN SMD package.
No-load input current as low as 5mA.
Continuous short-circuit protection.
High efficiency of up to 87%.
Unregulated output types.
1.5KVDC & 3KVDC Isolation.
Operating temperature from -40°C to + 105°C.
Industry standard pinout.
Design refer to IEC62368, UL62368, EN62368.
| Part Number | Output Voltage | Output Current | Efficiency | Capacitive Load(μF) | Package Style |
|---|---|---|---|---|---|
| Vdc | mA | %TYP | Max. | ||
| 13DS1C-05S03NY(P)(H3) | 3.3 | 303 | 76 | 2400 | 1/2/3 |
| 13DS1C-05S05NY(P)(H3) | 5 | 200 | 82 | 2400 | 1/2/3 |
| 13DS1C-05S09NY(P)(H3) | 9 | 112 | 83 | 1000 | 1/2/3 |
| 13DS1C-05S12NY(P)(H3) | 12 | 84 | 84 | 470 | 1/2/3 |
| 13DS1C-05S15NY(P)(H3) | 15 | 67 | 84 | 330 | 1/2/3 |
| 13DS1C-05S24NY(P)(H3) | 24 | 42 | 85 | 100 | 1/2/3 |
| 13DS1C-05D03NY(P)(H3) | ±3.3 | ±151 | 76 | ±1200 | 1/2/3 |
| 13DS1C-05D05NY(P)(H3) | ±5 | ±100 | 82 | ±1200 | 1/2/3 |
| 13DS1C-05D09NY(P)(H3) | ±9 | ±56 | 83 | ±470 | 1/2/3 |
| 13DS1C-05D12NY(P)(H3) | ±12 | ±42 | 84 | ±220 | 1/2/3 |
| 13DS1C-05D15NY(P)(H3) | ±15 | ±34 | 84 | ±1000 | 1/2/3 |
| 13DS1C-05D24NY(P)(H3) | ±24 | ±21 | 85 | ±47 | 1/2/3 |
| 13DS1C-XXS03NYP(H3) | 3.3 | 303 | 78 | 2400 | 1/2/3 |
| 13DS1C-XXS05NYP(H3) | 5 | 200 | 82 | 2400 | 1/2/3 |
| 13DS1C-XXS09NYP(H3) | 9 | 112 | 85 | 1000 | 1/2/3 |
| 13DS1C-XXS12NYP(H3) | 12 | 84 | 85 | 680 | 1/2/3 |
| 13DS1C-XXS15NYP(H3) | 15 | 67 | 87 | 330 | 1/2/3 |
| 13DS1C-XXS24NYP(H3) | 24 | 42 | 85 | 220 | 1/2/3 |
| 13DS1C-XXD03NYP(H3) | ±3.3 | ±151 | 78 | ±1200 | 1/2/3 |
| 13DS1C-XXD05NYP(H3) | ±5 | ±100 | 82 | ±1200 | 1/2/3 |
| 13DS1C-XXD09NYP(H3) | ±9 | ±56 | 85 | ±680 | 1/2/3 |
| 13DS1C-XXD12NYP(H3) | ±12 | ±42 | 85 | ±330 | 1/2/3 |
| 13DS1C-XXD15NYP(H3) | ±15 | ±34 | 87 | ±220 | 1/2/3 |
| 13DS1C-XXD24NYP(H3) | ±24 | ±21 | 85 | ±100 | 1/2/3 |
Note：
1:No suffix is standard isolation (1.5KVDC) e.g, 13DS1C-12S05NP,
*add suffix “H3” for 3KVDC isolation, e.g, 13DS1C-12S05NPH3, 13DS1C-15S12NPH3.
Y = 1 or 2 or 3 for package, No suffix Y package1,When Y=2, package2, and so on,
e.g,13DS1C-24S05N2P,13DS1C-15S12N3PH3.
2: No suffix P is No short circuit protection，e.g, 13DS1C-05S05N,
*add suffix “P” for short circuit protection, e.g, 13DS1C-05S05N2P, 13DS1C-05S12N3PH3.
3: ”XX” Is Input Voltage : 12=12Vdc,15=15Vdc, 24=24Vdc, e.g, 13DS1C-12S05N3P, 13DS1C-15S12NPH3.
Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Range | Vo,Io Nom @Vin:5V | ± 10 | % | ||
| Vo,Io Nom @Vin:12V,15V,24V | ± 20 | % | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | without suffix "P" | 1 | Sec | ||
| with suffix "P" | Continuous | ||||
| Line Regulation | For 1.0% OF Vin | 1.2 | % | ||
| Load Regulation | 3.3V(10% To 100% F.L) | 15 | 20 | % | |
| 5V(10% To 100% F.L) | 10 | 15 | % | ||
| 9V(10% To 100% F.L) | 8 | 10 | % | ||
| 12V(10% To 100% F.L) | 7 | 10 | % | ||
| 15V(10% To 100% F.L) | 6 | 10 | % | ||
| 24V(10% To 100% F.L) | 5 | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz @Vo:3.3V,5V,9V,12V,15V | 30 | 75 | mVp-p | |
| BW=DC To 20MHz @Vo:24V | 50 | 100 | mVp-p | ||
| Parameters | Cond itions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output,100KHz/0.1V | 20 | pF | ||
| Switching Frequency | Full load, nominal input @5V Vin | 370 | KHz | ||
| Full load, nominal input @other Vin | 250 | KHz | |||
| Operation Temperature | -40 | +105 | ℃ | ||
| Storage Temperature | -55 | +125 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 3500000 | Hours | ||
| Weight | Package 1/2/3 | 1.36 | g | ||

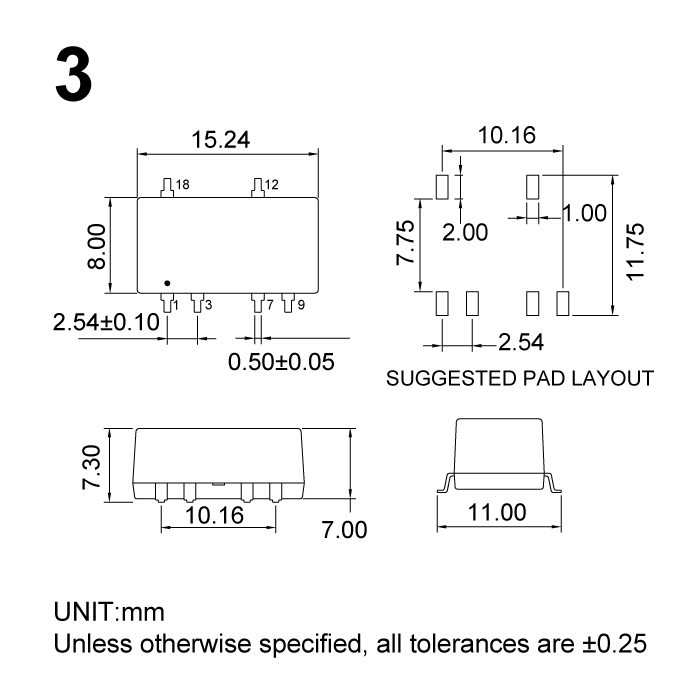

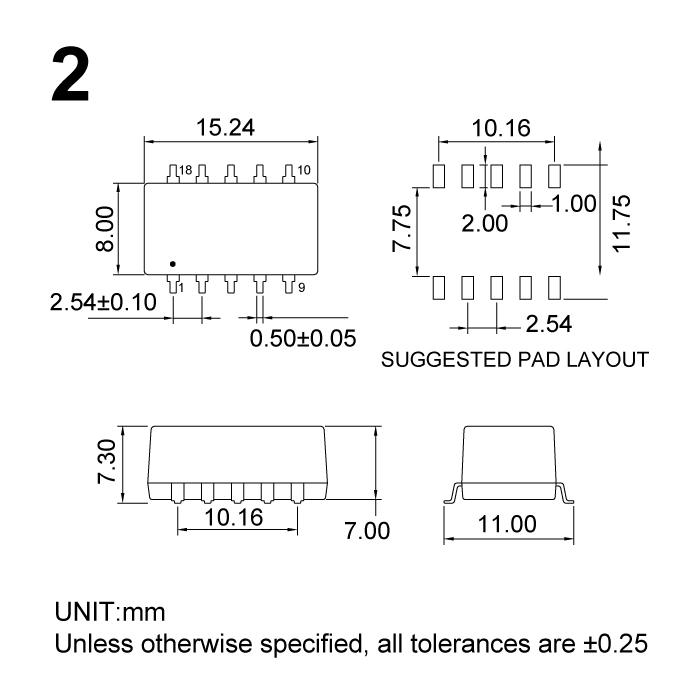

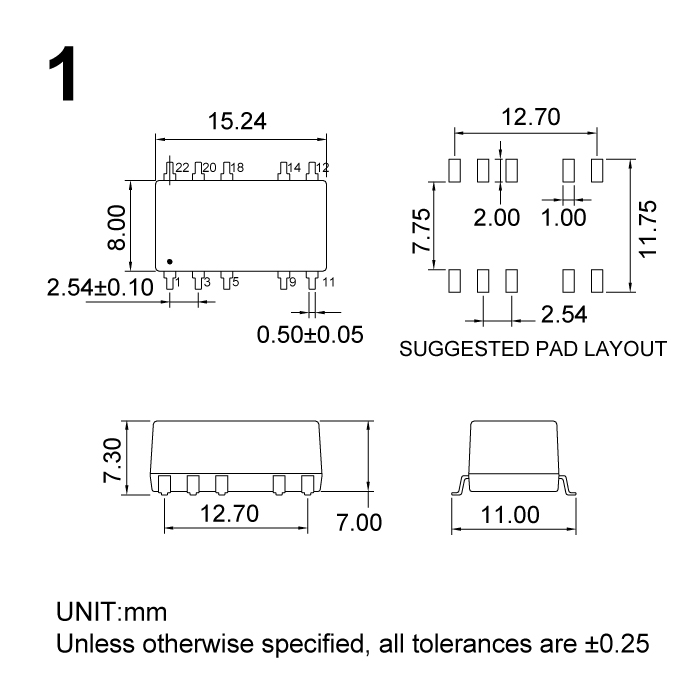

| Dimensions | Package 1/2/3 | 15.24X8.0X7.3 | mm | ||
Files Download
13DS1C Series.pdf
