1W 1KV Isolation 2:1 Wide Input Voltage Dual Output DC to DC Power Converter
2:1 wide input voltages range.
High efficiency up to 85%.
Regulated output types.
Low ripple and noise.
Internal SMD construction.
Operating temperature:-40°C to +85°C.
Industry standard pinout.
Continuous short circuit protection with current foldback.
| Part Number | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %Typ | |
| 16D-05D05RNL | 5-9 | ± 5 | ± 100 | 60 |
| 16D-05D09RNL | 5-9 | ± 9 | ± 56 | 70 |
| 16D-05D12RNL | 5-9 | ± 12 | ± 42 | 70 |
| 16D-05D15RNL | 5-9 | ± 15 | ± 34 | 70 |
| 16D-05D24RNL | 5-9 | ± 24 | ± 21 | 70 |
| 16D-12D05RNL | 9-18 | ± 5 | ± 100 | 70 |
| 16D-12D09RNL | 9-18 | ± 9 | ± 56 | 80 |
| 16D-12D12RNL | 9-18 | ± 12 | ± 42 | 80 |
| 16D-12D15RNL | 9-18 | ± 15 | ± 34 | 80 |
| 16D-12D24RNL | 9-18 | ± 24 | ± 21 | 80 |
| 16D-24D05RNL | 18-36 | ± 5 | ± 100 | 75 |
| 16D-24D09RNL | 18-36 | ± 9 | ± 56 | 80 |
| 16D-24D12RNL | 18-36 | ± 12 | ± 42 | 80 |
| 16D-24D15RNL | 18-36 | ± 15 | ± 34 | 80 |
| 16D-24D24RNL | 18-36 | ± 24 | ± 21 | 80 |
| 16D-48D05RNL | 36-72 | ± 5 | ± 100 | 70 |
| 16D-48D09RNL | 36-72 | ± 9 | ± 56 | 80 |
| 16D-48D12RNL | 36-72 | ± 12 | ± 42 | 80 |
| 16D-48D15RNL | 36-72 | ± 15 | ± 34 | 80 |
| 16D-48D24RNL | 36-72 | ± 24 | ± 21 | 80 |
Input Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Vo,Io Nom | 2:1 | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 3 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 0.8 | % | ||
| Ripple & Noise | Output:5-9V Types BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output:12-24V Types BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
General Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 1500000 | Hours | ||
| Weight | 4.5 | g | |||

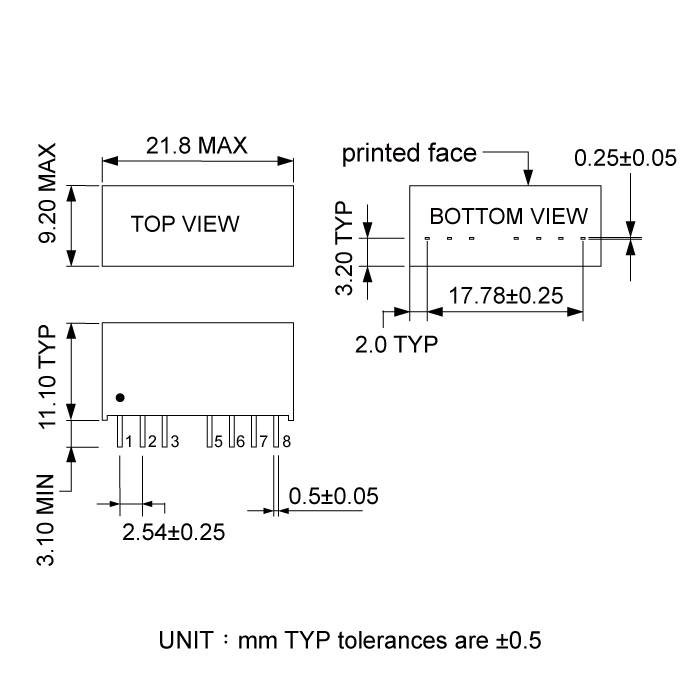

| Dimensions | 21.8 x 9.2 x 11.1 | mm | |||
Files Download
16D-Dual Series.pdf
Certification
