15TB Series
YDS
1.5KVrms Isolation T3/DS3/STS-1 Interface Telecom Transformer
Return loss meets requirements.
Through hole and surface mount packages available.
Models with 1500Vrms isolation reinforced insulation per BABT EN41003/EN60950.
Recognized by UL 1950.
Inductance----------------100KHz/0.1V.
Leakage Inductance----100KHz/0.1V.
| Part Number | Turns Ratio (± 3%) | OCL Primary (mH min.) | LL (uH max) | Cw/w (pF max) | Isolation Voltage (Vrms min) | Package Schematic | Primary Pins |
|---|---|---|---|---|---|---|---|
| 15TB-1011XENL | 1:1 | 100 | 0.11 | 10 | 1500 | E | 1-3 |
| 15TB-801XMNL | 1CT:1CT | 800 | 0.35 | 30 | 1500 | M | 1-3 |

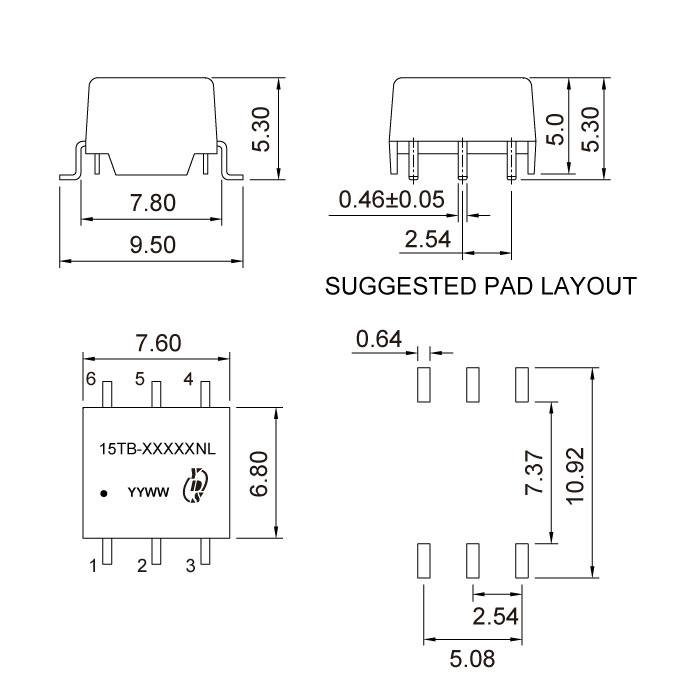

Dimension
15TB-Series.pdf
