15SEFD Series
YDS

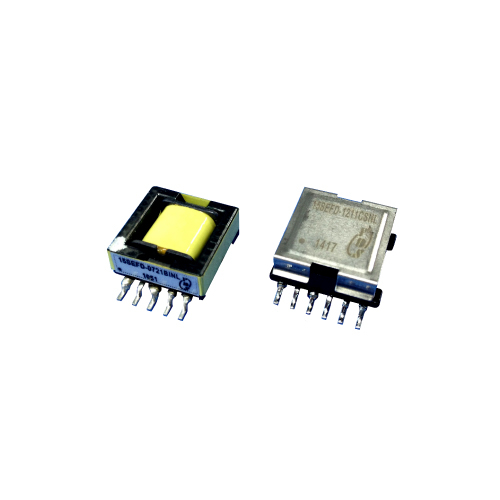

SMD PoE High Frequency Transformer
EFD15 Platforms-SMT.
Power range: Up to 60W
Height: 10mm MAX
Footprint: 22.5mm x 17.5mm
Topology: forward and flyback and so on
Custom designs available.
Operating temperature range: -40°C to +85°C
Storage temperature range: -55°C to +125°C

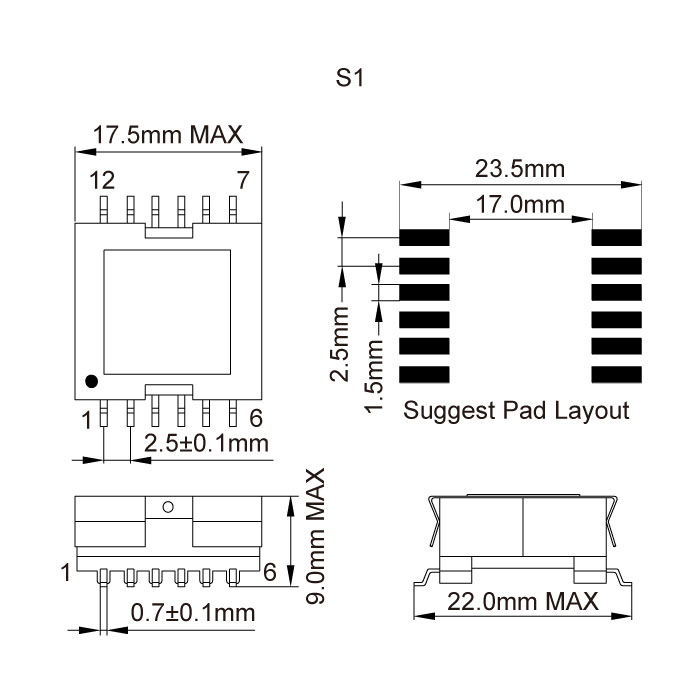

Part Number | Input | Output | Aux/bias | Oper. Freq | Turns ratio | |
---|---|---|---|---|---|---|
(KHZ) | Pri:sec | pri:sec: aux/bias | ||||
15SEFD-0461CGNL | 9~42V | 12V,0.3A 12V,0.3A 12V,0.3A | 12V, 0.3A | 300 | 1:1.43 1:1.43 1:1.43 | 1:1.43:1.43 |
15SEFD-0501CHNL | 9~40V | 12V/0.25A 12V/0.25A 7.5V/0.7A | 7.5V, 0.2A | 300 | 1:1.44 1:1.44 1:0.89 | 1:1.44:0.89 |
15SEFD-0721BINL | 9~36V | 5V,1.4A 3.3V,2.4A | 13V, 0.05A | 250 | 1:0.5 1:0.4 | 1:0.5:1.2 |
15SEFD-0801CDNL | 12~57V | 5V,1.9A 12V,1A | - | 200 | 1:0.75 1:1.58 | - |
15SEFD-1001CXNL | 12~48V | 48V,0.35A | - | - | - | 1:5:1.13 |
15SEFD-1011APNL | 29.5~60V | 3.3V,0.75A 3.3V,0.75A 3.3V,0.75A | 11V, 0.1A | 250 | 1:0.176 1:0.176 1:0.176 | 1:0.176:0.529 |
15SEFD-1011BCNL | 28~59V | 5V,2.4A | 12V, 15mA | 250 | - | 5:1:2.5 |
15SEFD-1011CPNL | 29.5~60V | 12V,0.3A 12V,0.3A | 11V, 0.1A | 250 | 1:0.588 1:0.588 | 1:0.588:0.529 |
15SEFD-1011DCNL | 36~57V | 12V,1.5A | 12V, 10mA | - | - | 1.8:1:1 |
15SEFD-1012APNL | 29.5~60V | 5V,0.5A 5V,0.5A 5V,0.5A | 11V, 0.1A | 250 | 1:0.265 1:0.265 1:0.265 | 1:0.265:0.529 |
15SEFD-1211APNL | 36~57V | 5V,0.9A 5V,0.9A 5V,0.9A | 5V, 50mA | - | 1:0.14 1:0.14 1:0.14 | 1:0.14:0.14 |
15SEFD-1211CSNL | 33~57V | 3.3V,3A 15V,0.1A -15,0.1A | 11V, 0.1A | 200~500 | 1:0.125 1:0.5 1:0.5 | 1:0.125:0.375 |
15SEFD-1213GNL | 30~60V | 12V,1.0A | 15V, 20mA | 275 | - | 1:0.457:0.571 |
15SEFD-1311BANL | 34~57V | 24V,200mA 5V,1A | 11.6V | - | 1:0.711 1:0.2 | 1:0.711:0.465 |
15SEFD-1311DENL | 48V | 12V,2.5A | 12V | - | - | 2.86:1:1 |
15SEFD-1411FNL | 35~56V | 3.3V,1.2A 6V,0.5A 21V,0.035A | 12V | 200 | 38:5 38:8 38:32 | 38:5:28 |
15SEFD-1511ZNL | 18~72V | 5V,2A 7.5V,10mA | 10V, 20mA | 500 | 5:1 3.2:1 | 1:0.2:0.44 |
15SEFD-1513ZNL | 36~57V | 5V,2A 7.5V,10mA | 10V, 20mA | - | 5:1 3.2:1 | 1: 0.2:0.44 |
15SEFD-1514ZNL | 24~57V | 12V,0.9A 7.8V,20mA | 10V, 20mA | - | 2.24:1 3.36:1 | 11:0.446:0.467 |
15SEFD-1611RNL | 36~57V | 3.3V,2A 12V,0.1A 12V,0.1A 5V,0.8A | 11V, 0.1A | 125 | 1:0.15 1:0.57 1:0.57 1:0.23 | 1:0.15:0.4 |
15SEFD-1611ZNL | 30~57V | 5V,2A 7.5V,10mA | 10V, 15mA | 100 | 5:1 5:1.5 | 5:1:2.2 |
15SEFD-1671ZNL | 36~57V | 12V,0.83A 6V,10mA | 12V, 20mA | - | 2:1 4:1 | 1:0.5:0.5 |
15SEFD-1672ZNL | 36~57V | 12V,1.09A 6V,10mA | 10V, 20mA | - | 2:1 4:1 (Hi-Pot: 1500V) | 1:0.5:0.5 |
15SEFD-1673ZNL | 36~57V | 12V,1.09A 6V,10mA | 10V, 20mA | - | 2:1 4:1 (Hi-Pot: 1800V) | 1:0.5:0.5 |
15SEFD-1711CANL | 28~60V | 3.3V,4A | - | 275 | 1:0.29 1:0.24 | 1:0.29:1.3 |
15SEFD-1711ZNL | 36~57V | 3.3V,3A 5.6V,10mA | 10V, 20mA | 125 | 6.5:1 3.7:1 | 1:0.154:0.5 |
15SEFD-1712ZNL | 18~72V | 12V,1A 12V,1A 6V,10mA | 10V, 20mA | 500 | 2:1 2:1 4:1 | 1:0.5:0.5 |
15SEFD-2011APNL | 29.5~60V | 3.3V,0.45A 3.3V,0.45A 3.3V,0.45A | 11V, 0.1A | 250 | - | 1:0.16:0.52 1:0.16:0.52 1:0.16:0.52 |
15SEFD-2011BBNL | 36~75V | 3.3V,5.7A 3.3V,5.7A 3.3V,5.7A | 30mA | 300~400 | 9:3 9:3 9:3 | 9:3:12 |
15SEFD-2501CGNL | 18~90V | 13V,0.2A 13V,0.2A 13V,0.2A | 13V/ 0.6A | 300 | 1:0.78 1:0.78 1:0.78 | - |
15SEFD-2511BBNL | 36~75V | 3.3V,7.5A 12V,30mA | - | 350 | - | 9:3:12 |
15SEFD-3501GNL | 36~72V | 12V,1.1A | 12V, 20mA | 1:0.35:0.35 | ||
15SEFD-3701BDNL | 11.6~19V. 6V | 6V,1.4A 6V,0.7A | - | 100 | 3:1 3:1 | - |
15SEFD-3701GNL | 36~72V | 24V,0.54A | 12V, 20mA | - | 1:0.67:0.33 | |
15SEFD-4001ABNL | 36~72V | 3.3V,6A | - | 250 | - | 8:1:3.67 |
15SEFD-4001CCNL | 10~57V | 5V,2.6A | 5V, 20mA | - | 1:0.36 | 1:0.36:0.43 |
15SEFD-5601DFNL | 36V | 14.5V,0.5A 18V,0.5A -12V,0.5A +8V,1A | - | - | 1:0.4 1:0.5 1:0.33 1:0.22 | - |
15SEFD-6001GNL | 36~72V | 12V,0.5A | 12V, 20mA | - | - | 1:0.35:0.35 |
15SEFD-6201MNL | 33~57V | 5V,1.5A 3.3V,2A 30V,0.05A | 12V, 20mA | 200 | 5.5:1.75 5.5:1.0 5.5:9.25 | 5.5:1.75:3.75 |
15SEFD-6401BYNL | 33~57V | 5V,0.01 12V,0.83A | 10V, 0.02A | 200 | 1:0.17 1:0.45 | 1:0.17:0.34 |
15SEFD-7001BMNL | 30~60V | 3.3V,6A 5.5V | 10V | 250 | 1:0.147 1:0.235 | 1:0.147:0.412 |
15SEFD-9501CWNL | 10~57V | 5V,5A | 12V, 20mA | 250 | 1.25:1 | 1:0.8:2 |
Part Number | L | DCR | Sch | Mech | ||
---|---|---|---|---|---|---|
(Ohms MAX) | ||||||
(uH) | Pri | sec | Aux / bia | |||
15SEFD-0461CGNL | 4.6 ± 12% | 0.01 | 0.173 0.173 0.173 | 0.095 | CG | S1 |
15SEFD-0501CHNL | 5 ± 10% | 0.03 | 0.23 0.23 0.06 | 0.18 | CH | S1 |
15SEFD-0721BINL | 7.2 ± 5% | 0.027 | 0.043 0.022 | 0.24 | BI | S2 |
15SEFD-0801CDNL | 8.04 ± 10% | 0.05 | 0.05 0.15 | - | CD | S1 |
15SEFD-1001CXNL | 10 ± 12% | 0.027 | 0.8 | 0.22 | CX | S1 |
15SEFD-1011APNL | 100 ± 10% | 0.275 | 0.03 0.03 0.03 | 1.00 | AP | S1 |
15SEFD-1011BCNL | 100.7 ± 8% | 0.485 | 0.025 | 1.15 | BC | S1 |
15SEFD-1011CPNL | 100 ± 10% | 0.275 | 0.25 | 1.00 | CP | S1 |
15SEFD-1011DCNL | 100 ± 10% | 0.22 | 0.068 | 0.57 | DC | S1 |
15SEFD-1012APNL | 100 ± 10% | 0.275 | 0.095 | 1.00 | AP | S1 |
15SEFD-1211APNL | 120 ± 10% | 0.35 | 0.025 0.025 0.025 | 0.19 | AP | S1 |
15SEFD-1211CSNL | 115.0 ± 13% | 0.25 | 0.007 0.65 0.65 | 0.57 | CS | S1 |
15SEFD-1213GNL | 117.5 ± 10% | 0.201 | 0.06 | 0.335 | G | S1 |
15SEFD-1311BANL | 125 ± 10% | 0.3 | 0.42 0.02 | 0.37 | BA | S1 |
15SEFD-1311DENL | 132.8 ± 10% | 0.73 | 0.033 | 0.36 | DE | S1 |
15SEFD-1411FNL | 144 ± 10% | 0.49 | 0.048 0.024 1.4 | 1.5 | F | S2 |
15SEFD-1511ZNL | 150 ± 10% | 0.515 | 0.023 0.57 | 0.88 | Z | S1 |
15SEFD-1513ZNL | 150 ± 10% | 0.52 | 0.0275 0.525 | 0.77 | Z | S1 |
15SEFD-1514ZNL | 150 ± 10% | 0.515 | 0.11 0.57 | 0.88 | Z | S1 |
15SEFD-1611RNL | 160 ± 15% | 0.62 | 0.015 1.1 1.1 0.24 | 0.95 | R | S1 |
15SEFD-1611ZNL | 157.5 ± 10% | 0.5 | 0.025 0.76 | 1.3 | Z | S1 |
15SEFD-1671ZNL | 166.5 ± 10% | 0.76 | 0.103 0.475 | 1.1 | Z | S1 |
15SEFD-1672ZNL | 166.5 ± 10% | 0.76 | 0.101 0.5 | 1.1 | Z | S1 |
15SEFD-1673ZNL | 166.5 ± 10% | 0.76 | 0.101 0.5 | 1.1 | Z | S1 |
15SEFD-1711CANL | 165MIN | 0.07 | 0.011 | 1.29 | CA | S1 |
15SEFD-1711ZNL | 166.5 ± 10% | 0.735 | 0.0225 0.51 | 0.985 | Z | S1 |
15SEFD-1712ZNL | 166.5 ± 10% | 0.76 | 0.26 0.26 0.5 | 1.1 | Z | S1 |
15SEFD-2011APNL | 200 ± 10% | 0.5 | 0.07 0.07 0.07 | 1.0 | AP | S1 |
15SEFD-2011BBNL | 200-20%/+30% | 0.1 | 0.006 0.006 0.006 | 1.0 | BB | S1 |
15SEFD-2501CGNL | 25 ± 10% | 0.11 | 0.25 0.25 0.25 | 0.1 | CG | S1 |
15SEFD-2511BBNL | 250 ± 30% | 0.087 | 0.0041 | 0.4 | BB | S1 |
15SEFD-3501GNL | 35.0 ± 10% | 0.095 | 0.017 | 0.15 | G | S1 |
15SEFD-3701BDNL | 37.1 ± 10% | 0.078 | 0.034 0.038 | - | BD | S1 |
15SEFD-3701GNL | 37.0 ± 10% | 0.086 | 0.049 | 0.37 | G | S1 |
15SEFD-4001ABNL | 40 ± 13% | 0.13 | 0.0035 | 0.315 | AB | S1 |
15SEFD-4001CCNL | 40.0 ± 10% | 0.14 | 0.024 | 0.23 | CC | S1 |
15SEFD-5601DFNL | 56 ± 10% | 0.16 | 0.12 0.16 0.11 0.045 | - | DF | S1 |
15SEFD-6001GNL | 55 ± 10% | 0.095 | 0.017 | 0.15 | G | S1 |
15SEFD-6201MNL | 62.0 ± 12% | 0.25 | 0.03 0.02 2.4 | 0.4 | M | S1 |
15SEFD-6401BYNL | 64 ± 10% | 0.32 | 0.33 0.08 | 0.5 | BY | S2 |
15SEFD-7001BMNL | 77.8 ± 10% | 0.155 | 0.008 0.215 | 0.382 | BM | S1 |
15SEFD-9501CWNL | 95 ± 28% | 0.014 | 0.015 | 0.5 | CW | S1 |
