15D Series
YDS
1W 1KV Isolation Single Output DC-DC Power Converter
7PIN SIP & 14PIN DIL package.
High efficiency up to 70%.
Output regulation < 1.5%.
Internal SMD construction.
No external component required.
Industry standard pinout.
Operating temperature: -40°C to +85°C.
| Part Number | Output Voltage | Output Current | Efficiency | Package Style |
|---|---|---|---|---|
| Vdc | mA | % TYP | ||
| 15D-XXS03RNL | 3.3 | 100 | 45 | 1 |
| 15D-XXS05RNL | 5 | 100 | 45 | 1 |
| 15D-XXS09RNL | 9 | 100 | 55 | 1 |
| 15D-XXS12RNL | 12 | 84 | 55 | 1 |
| 15D-XXS15RNL | 15 | 67 | 60 | 1 |
| 15D-XXS03R2NL | 3.3 | 100 | 45 | 2 |
| 15D-XXS05R2NL | 5 | 100 | 45 | 2 |
| 15D-XXS09R2NL | 9 | 100 | 55 | 2 |
| 15D-XXS12R2NL | 12 | 84 | 55 | 2 |
| 15D-XXS15R2NL | 15 | 67 | 60 | 2 |
| 15D-XXS24R2NL | 24 | 42 | 60 | 2 |
| 15D-XXS03R3NL | 3.3 | 100 | 45 | 3 |
| 15D-XXS05R3NL | 5 | 100 | 45 | 3 |
| 15D-XXS09R3NL | 9 | 100 | 55 | 3 |
| 15D-XXS12R3NL | 12 | 84 | 55 | 3 |
| 15D-XXS15R3NL | 15 | 67 | 60 | 3 |
| 15D-XXS03R4NL | 3.3 | 100 | 45 | 4 |
| 15D-XXS05R4NL | 5 | 100 | 45 | 4 |
| 15D-XXS09R4NL | 9 | 100 | 55 | 4 |
| 15D-XXS12R4NL | 12 | 84 | 55 | 4 |
| 15D-XXS15R4NL | 15 | 67 | 60 | 4 |
| 15D-XXS24R4NL | 24 | 42 | 60 | 4 |
Note:
1. "XX" Is Input Voltage: 05 = 5Vdc, 09 = 9Vdc, 12 = 12Vdc, 15 = 15Vdc, 24 = 24Vdc.
2. Over 24Vdc input voltage, using the 2nd or 4nd package.
3. The input voltage increases, there will be an increase in efficiency.
4. Input 3.3V, then output will be 12V MAX Output 3.3V, then input will be 12V MAX.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | ± 5 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | For 1.0% OF Vin | 0.25 | % | ||
| Load Regulation | 10% To 100% F.L | 1.5 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient Response Setting Time | 50% load step change | 350 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominalinput | 100 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 1500000 | Hours | ||
| Weight | Package 1 / 2 / 3 / 4 | 2.1 / 2.7 / 2.3 / 3.0 | g | ||

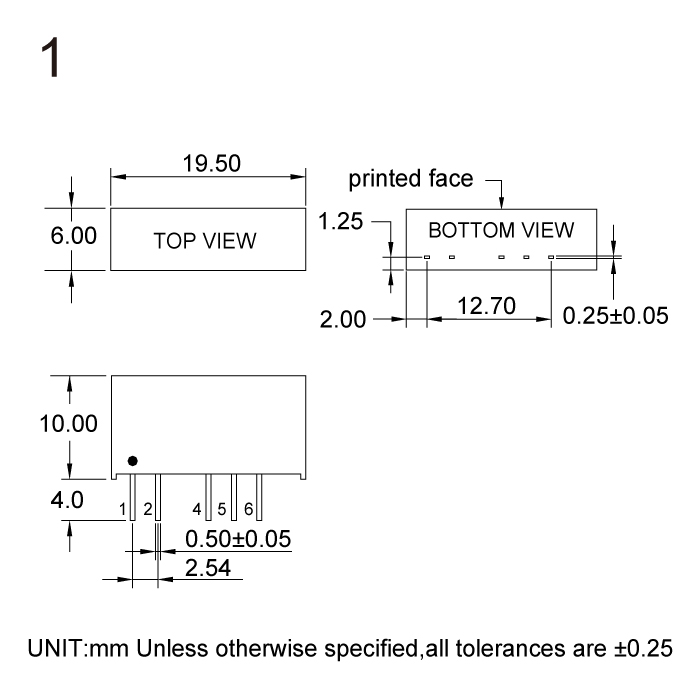

| Dimensions | Package 1 | 19.50 x 6.00 x 10.00 | mm | ||
| Dimensions | Package 2 | 19.5 x 7.10 x 10.00 | mm | ||
| Dimensions | Package 3 | 20.32 x 10.16 x 6.80 | mm | ||

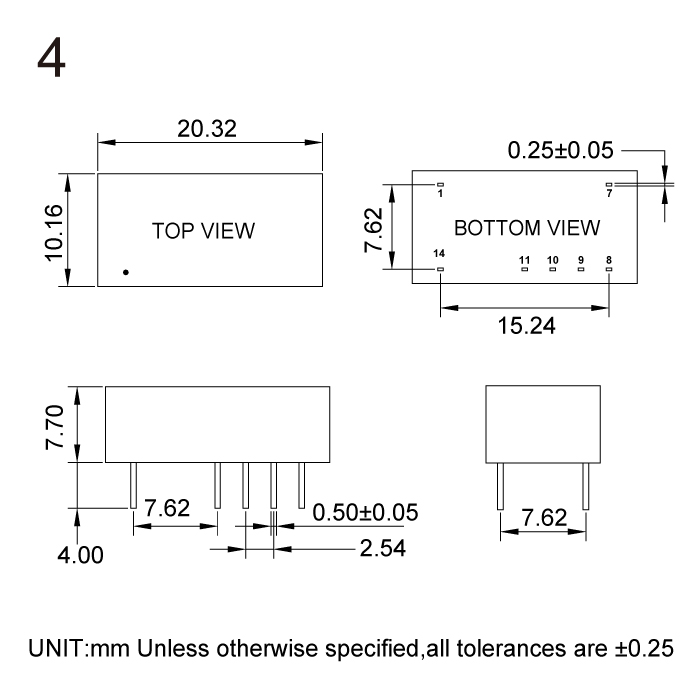

| Dimensions | Package 4 | 20.32 x 10.16 x 7.70 | mm | ||
Files Download
15D-Series.pdf
