14T/16T Series
YDS

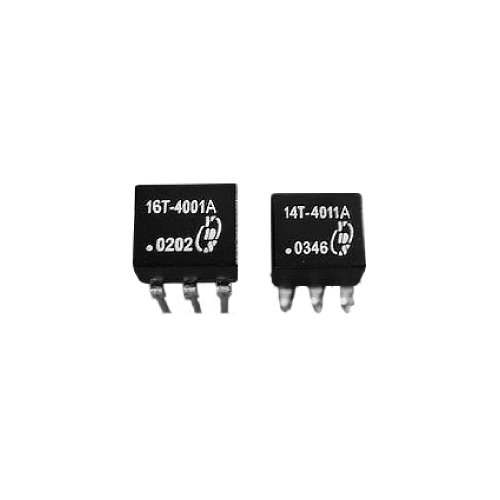

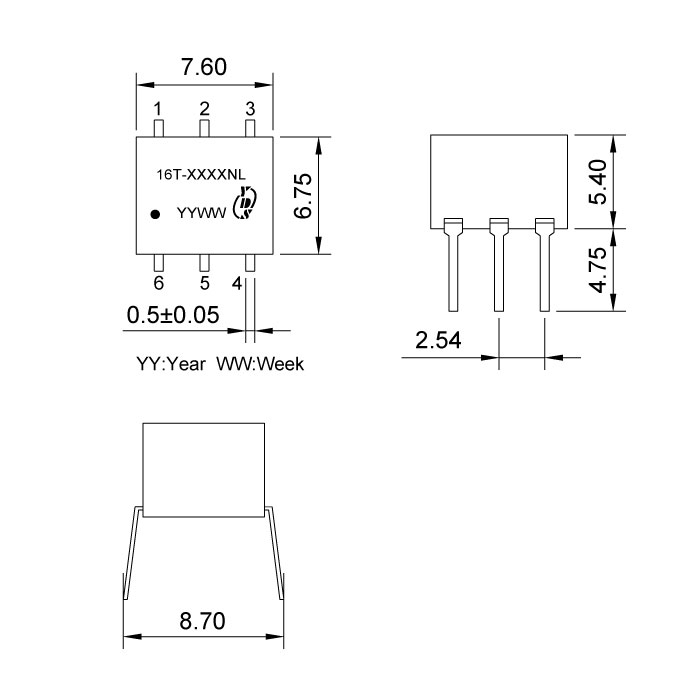

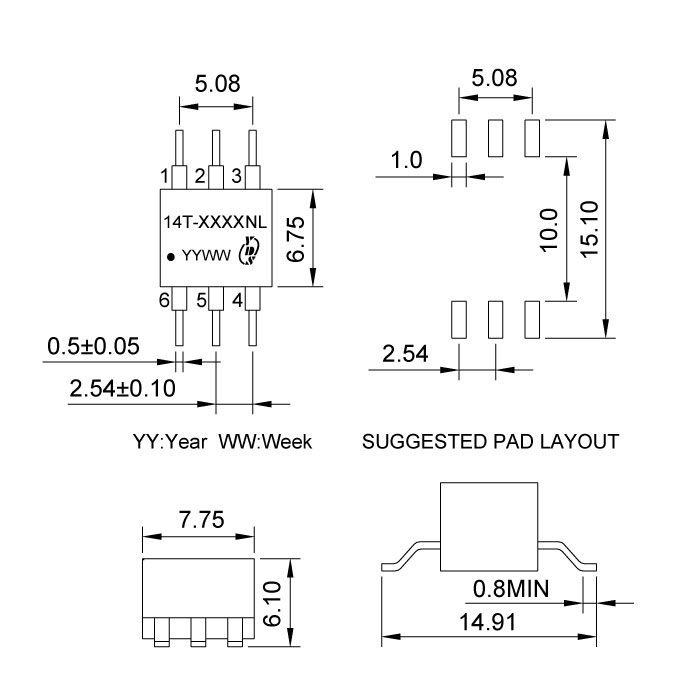

Surface Mount and Through Hole RF electronic Transformer
Operating bandwidth of 0.8 MHz to 400 MHz.
Peak IR reflow temperature rating of 235°C.
Excellent insertion loss and return loss.
Various impedance ratios available.
Recognized by UL 60950-1.
| Part Number | Pri Inductance (uH Min) | Turns Ratio | Bandwidth* (-3dB,MHz) | Schematic | Primary Pins |
|---|---|---|---|---|---|
| 14T-4011ANL | 110 | 1:1 | .15-400 | A | 4-6 |
| 14T-2012BNL | 200 | 1:1CT | .30-200 | B | 4-6 |
| 14T-3513BNL | 80 | 1:2CT | .20-350 | B | 4-6 |
| 16T-3513BNL | 80 | 1:2CT | .20-350 | B | 4-6 |
*Bandwidth is referenced to midband loss.
Files Download
14T-16T-Series.pdf
