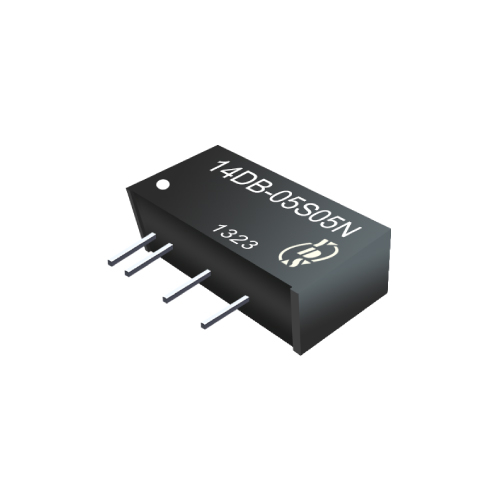

1W 1KV&1.5KV Isolation Continuous Protection DC DC Converter
7PIN SIP package.
High efficiency up to 82%.
Output continuous short circuit protection.
Unregulated output types.
Internal SMD construction.
1KVdc & 1.5KVdc isolation.
Industry standard pinout.
Operating temperature: -40°C to +105°C.
| Part Number | Output Voltage | Output Current | Ripple & Noise | Efficiency | Package Style | |
|---|---|---|---|---|---|---|
| Vdc | mA | Typ (mVp-p) | Max (mVp-p) | % TYP | ||
| 14DB-05S05N (1.5KV) | 5 | 200 | 60 | 100 | 80 | 1 |
| 14DB-05S09N (1.5KV) | 9 | 112 | 60 | 100 | 80 | 1 |
| 14DB-05S12N (1.5KV) | 12 | 84 | 60 | 100 | 80 | 1 |
| 14DB-05S15N (1.5KV) | 15 | 67 | 60 | 100 | 80 | 1 |
| 14DB-12S05N (1.5KV) | 5 | 200 | 60 | 100 | 80 | 1 |
| 14DB-12S09N (1.5KV) | 9 | 112 | 60 | 100 | 80 | 1 |
| 14DB-12S12N (1.5KV) | 12 | 84 | 60 | 100 | 82 | 1 |
| 14DB-12S15N (1.5KV) | 15 | 67 | 60 | 100 | 81 | 1 |
| 14DB-15S05N2 (1.5KV) | 5 | 200 | 60 | 100 | 78 | 2 |
| 14DB-15S09N2 (1.5KV) | 9 | 112 | 60 | 100 | 79 | 2 |
| 14DB-15S12N2 (1.5KV) | 12 | 84 | 60 | 100 | 79 | 2 |
| 14DB-15S15N2 (1.5KV) | 15 | 67 | 60 | 100 | 79 | 2 |
| 14DB-24S05N2 (1.5KV) | 5 | 200 | 60 | 100 | 77 | 2 |
| 14DB-24S09N2 (1.5KV) | 9 | 112 | 60 | 100 | 79 | 2 |
| 14DB-24S12N2 (1.5KV) | 12 | 84 | 60 | 100 | 79 | 2 |
| 14DB-24S15N2 (1.5KV) | 15 | 67 | 60 | 100 | 79 | 2 |
| 14DB-24S24N2 (1.5KV) | 24 | 42 | 60 | 100 | 81 | 2 |
| 14DB-05D05N (1.5KV) | ± 5 | ± 100 | 60 | 120 | 80 | 1 |
| 14DB-05D09N (1.5KV) | ± 9 | ± 56 | 60 | 120 | 80 | 1 |
| 14DB-05D12N (1.5KV) | ± 12 | ± 42 | 60 | 120 | 80 | 1 |
| 14DB-05D15N (1.5KV) | ± 15 | ± 34 | 60 | 120 | 80 | 1 |
| 14DB-12D05N (1.5KV) | ± 5 | ± 100 | 60 | 120 | 80 | 1 |
| 14DB-12D09N (1.5KV) | ± 9 | ± 56 | 60 | 120 | 80 | 1 |
| 14DB-12D12N (1.5KV) | ± 12 | ± 42 | 60 | 120 | 82 | 1 |
| 14DB-12D15N (1.5KV) | ± 15 | ± 34 | 60 | 120 | 81 | 1 |
| 14DB-15D05N2 (1.5KV) | ± 5 | ± 100 | 60 | 120 | 78 | 2 |
| 14DB-15D09N2 (1.5KV) | ± 9 | ± 56 | 60 | 120 | 78 | 2 |
| 14DB-15D12N2 (1.5KV) | ± 12 | ± 42 | 60 | 120 | 78 | 2 |
| 14DB-15D15N2 (1.5KV) | ± 15 | ± 34 | 60 | 120 | 78 | 2 |
| 14DB-24D05N2 (1.5KV) | ± 5 | ± 100 | 60 | 120 | 78 | 2 |
| 14DB-24D09N2 (1.5KV) | ± 9 | ± 56 | 60 | 120 | 79 | 2 |
| 14DB-24D12N2 (1.5KV) | ± 12 | ± 42 | 60 | 120 | 79 | 2 |
| 14DB-24D15N2 (1.5KV) | ± 15 | ± 34 | 60 | 120 | 78 | 2 |
NOTE:
No suffix is standard isolation (1KVDC) e.g, 14DB-05S05N, 14DB-15S05N2
*add suffix / 1.5KV for 1.5KVDC isolation, e.g, 14DB-05S05N1.5KV, 14DB-15S05N21.5KV
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | ± 10 | % | ||
| Filter | Capacitor |
Output Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | For 1.0% OF Vin | 1.2 | % | ||
| Load Regulation | 5V, 9V (10% To 100% F.L) | 15 | % | ||
| Load Regulation | 12 ~ 24V (10% To 100% F.L) | 10 | % | ||
| Load Regulation | ± 5V, ± 9V (10% To 100% F.L) | 15 | % | ||
| Load Regulation | ± 12V ~ ± 24V (10% To 100% F.L) | 10 | % |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +105 | ℃ | ||
| Storage Temperature | -55 | +125 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 3500000 | Hours | ||
| Weight | Package1 or Package2 | 2.1 or 2.7 | g | ||
| Dimensions | Package1 or Package2 | 19.5 x 6.0 x 10.0 or 19.5 x 7.1 x 10.0 | mm | ||
Files Download
14DB-Series.pdf
