13F-6X Series
YDS
Single Port 10/100 Base-T TAB Down RJ45 Connector
Features
Magnetic designs to support every PHY.
Meet or exceed IEEE 802.3 and ANSI X3.263 standards.
including 350uH min OCL with 8mA bias.
Minimum 2250VDC isolation per IEEE 802.3 requirement.
Designed for 100 base transmission over UTP-5 cable.
Size same as RJ-45 modular jack to save PCB board Space.
Recognized by UL 60950-1.
| Part Number | Turns Ratio ±5% | EMI Fingers | LED (L/R) | Insertion Loss (dB max) | Return Loss (dB min @100Ω ± 15Ω) | ||||
|---|---|---|---|---|---|---|---|---|---|
| TX | RX | 0.3-100 MHz | 1-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | |||

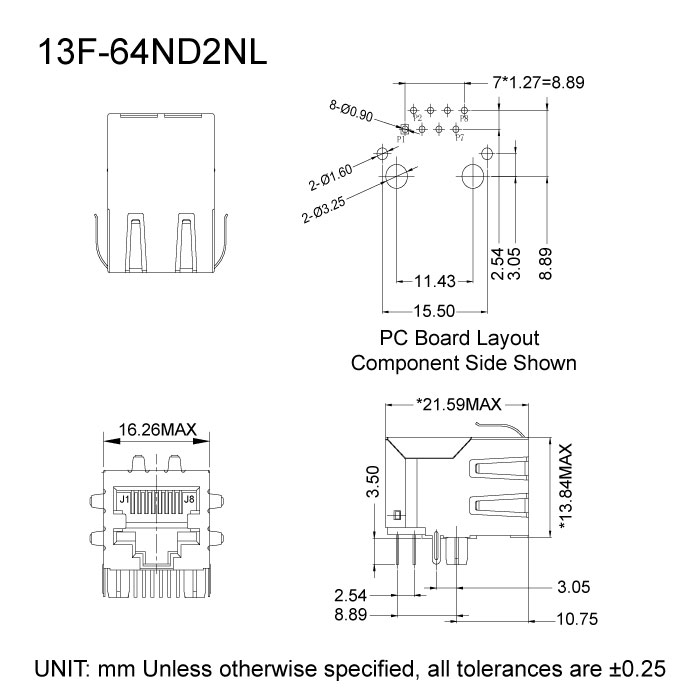

| 13F-64ND2NL | 1CT: 1CT | 1CT: 1CT | YES | N/A | -1 | -18 | -16 | -12 | -10 |

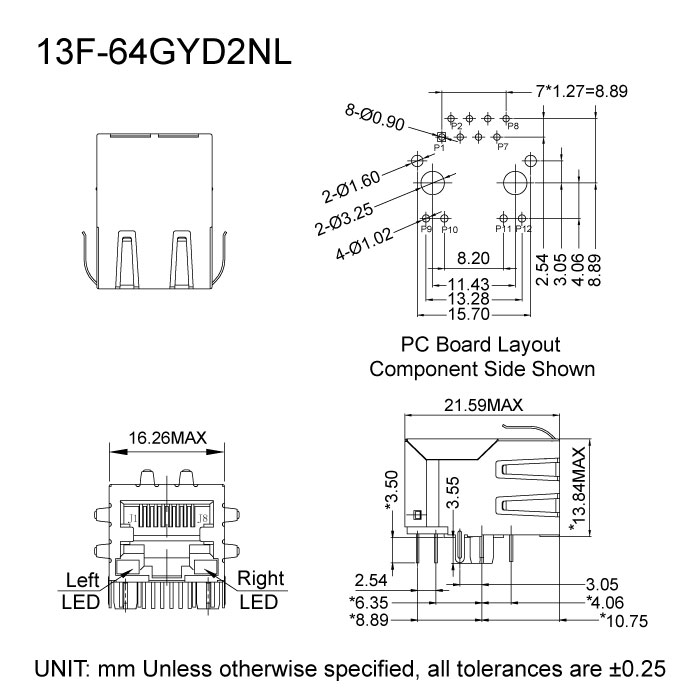

| 13F-64GYD2NL | 1CT: 1CT | 1CT: 1CT | YES | G/Y | -1 | -18 | -16 | -12 | -10 |
| 13F-64GYD2PLNW2NL | 1CT: 1CT | 1CT: 1CT | N/A | G/Y | -1 | -18 | -16 | -12 | -10 |
| Part Number | Crosstalk (dB min) | Common Mode Rejection (dB min) | Hipot (VDC) | ||||
|---|---|---|---|---|---|---|---|
| 30 MHz | 60 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 13F-64ND2NL | -40 | -35 | -30 | -30 | -20 | -20 | 2250 |
| 13F-64GYD2NL | -40 | -35 | -30 | -30 | -20 | -20 | 2250 |
| 13F-64GYD2PLNW2NL | -40 | -35 | -30 | -30 | -20 | -20 | 2250 |
Files Download
13F-6X-Series.pdf
