PoE/PoE+ Applications 10/100 Base-TX Single Port RJ45 Connector
Magnetic designs to support every PHY.
Meet or exceed IEEE 802.3af and ANSI X3.263 standards.
Meet IEEE 802.3at standards.
including 350uH min OCL with 8mA bias.
Minimum 2250VDC isolation per IEEE 802.3 requirement.
Designed for 100 base transmission over UTP-5 cable.
Size same as RJ-45 modular jack to save PCB board Space.
Recognized by UL 60950-1.
| Part Number | Turns Ratio Pri: Sec. ±3% | EMI Fingers | LED (L/R) | Insertion Loss (dB max) | Return Loss (dB min @100Ω) | ||||
|---|---|---|---|---|---|---|---|---|---|
| TX | RX | 0.3-100 MHz | 0.5-30 MHz | 40 MHz | 50 MHz | 60-80 MHz | |||

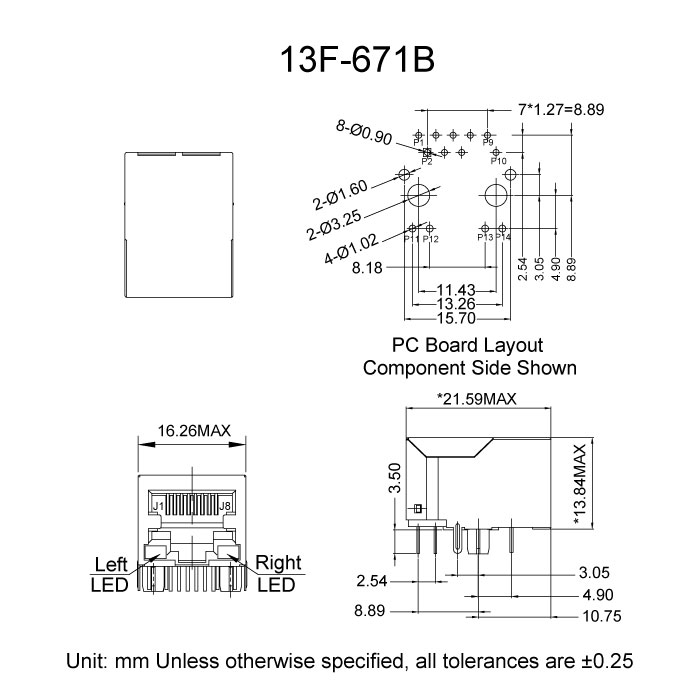

| 13F-671BYGDNW2NL | 1CT: 1CT | 1CT: 1CT | YES | Y/G | -1.1 | -18 | -15.5 | -13.6 | -12 |

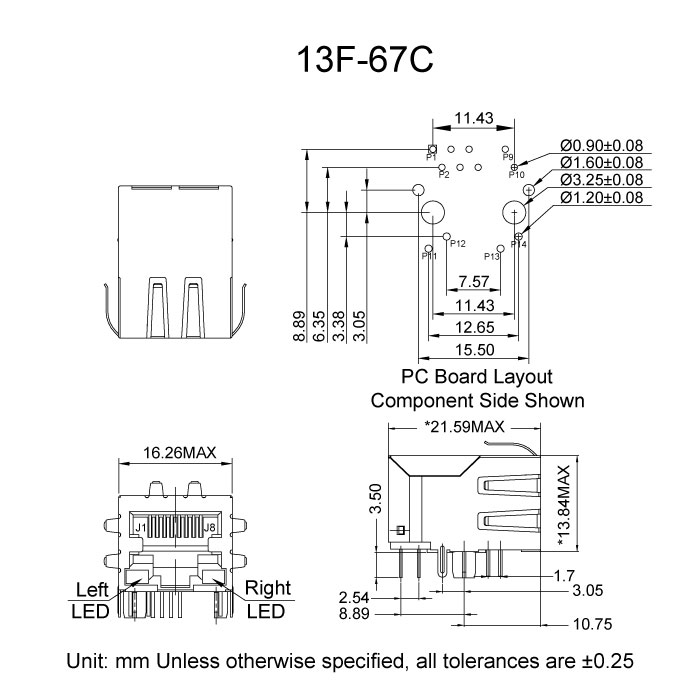

| 13F-67CGYDS2NL | 1CT: 1CT | 1CT: 1CT | YES | G/Y | -1.1 | -18 | -15.5 | -13.6 | -12 |
| Part Number | Crosstalk (dB TYP.) | Common Mode Rejection (dB TYP.) | POE Current | Hipot (VDC) | ||
|---|---|---|---|---|---|---|
| 0.3-100 MHz | 0.3-30 MHz | 30-60 MHz | 60-100 MHz | |||
| 13F-671BYGDNW2NL | -38 | -50 | -40 | -30 | 700mA | 2250 |
| 13F-67CGYDS2NL | -38 | -50 | -40 | -30 | 350mA | 2250 |
Files Download
13F-67-Series.pdf
