13F-3X series
YDS

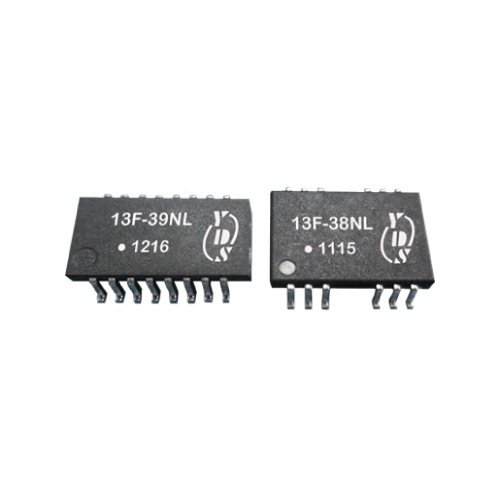

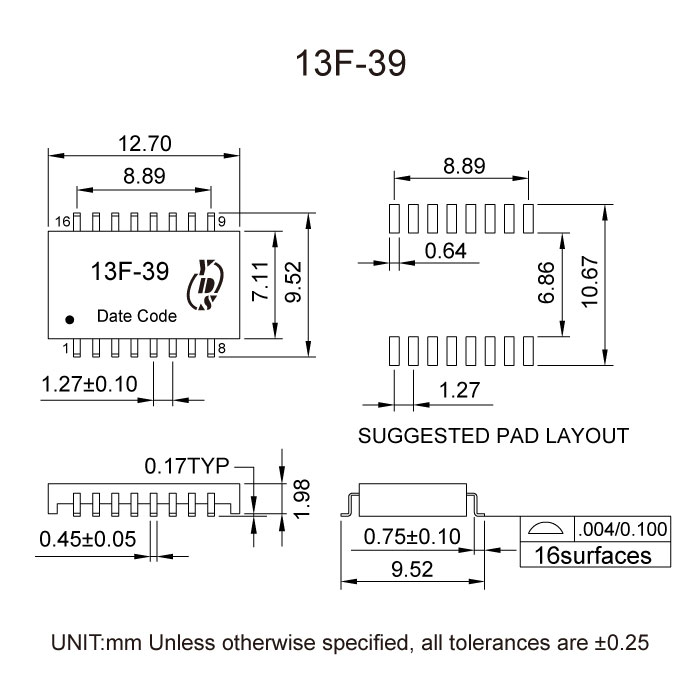

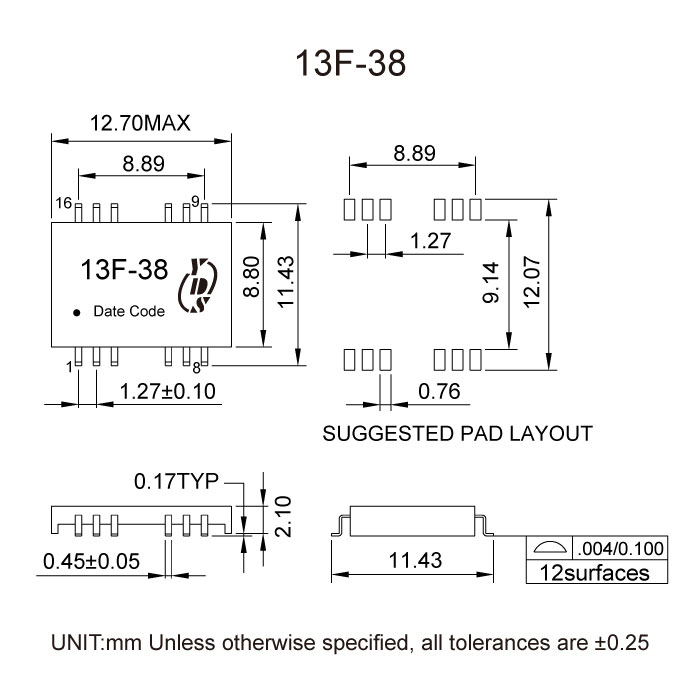

10/100 Base-T PC Card Network Filters
Features
Half port and single port designs for maximum layout flexibility.
Low profile packages from 0.094” (2.39 mm) to 0.078” (1.98 mm) for PC Card.
Recognized by UL 60950-1.
| Part Number | Turns Ratio(±5%) | Insertion Loss (dB MAX.) | Return Loss (dB MIN) | Differential to Common Mode Rejection (dB MIN) | Crosstalk (dB MIN) | Hipot (Vrms) MIN | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Transmit | Receive | 0.3-100 MHz | 30 MHz | 60 MHz | 80 MHz | 30 MHz | 50 MHz | 100 MHz | 30 MHz | 62 MHz | 100 MHz | ||
| 13F-38NL | 1CT:1CT | 1CT:1CT | -1.0 | -17 | -12 | -10 | -30 | -30 | -30 | -40 | -35 | -30 | 1500 |
| 13F-39NL | 1CT:1CT | 1CT:1CT | -0.9 | -16 | -12 | -11 | -35 | -33 | -20 | -50 | -45 | -40 | 1500 |
Files Download
13F-3X-Series.pdf
10/100 Base-T PC Card Network Filters
Features
Half port and single port designs for maximum layout flexibility.
Low profile packages from 0.094” (2.39 mm) to 0.078” (1.98 mm) for PC Card.
Recognized by UL 60950-1.
| Part Number | Turns Ratio(±5%) | Insertion Loss (dB MAX.) | Return Loss (dB MIN) | Differential to Common Mode Rejection (dB MIN) | Crosstalk (dB MIN) | Hipot (Vrms) MIN | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Transmit | Receive | 0.3-100 MHz | 30 MHz | 60 MHz | 80 MHz | 30 MHz | 50 MHz | 100 MHz | 30 MHz | 62 MHz | 100 MHz | ||
| 13F-38NL | 1CT:1CT | 1CT:1CT | -1.0 | -17 | -12 | -10 | -30 | -30 | -30 | -40 | -35 | -30 | 1500 |
| 13F-39NL | 1CT:1CT | 1CT:1CT | -0.9 | -16 | -12 | -11 | -35 | -33 | -20 | -50 | -45 | -40 | 1500 |
Files Download
13F-3X-Series.pdf
