13DS Series
YDS

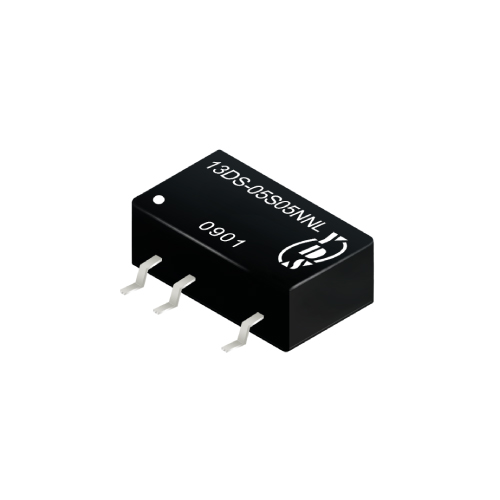

1Watt 1KV Isolation Single Output Surface Mount DC-DC Converter
Features
Small footprint.
14PIN SMD package.
High efficiency up to 80%.
Unregulated output types.
High power density.
No external component required.
Operating temperature: -40°C to +85°C
Industry standard pinout.
| Part Number | Output Voltage | Output Current | Efficiency | Package Style |
|---|---|---|---|---|
| Vdc | (mA) | %TYP | ||
| 13DS-XXS03NNL | 3.3 | 303 | 65 | 1 |
| 13DS-XXS05NNL | 5 | 200 | 70 | 1 |
| 13DS-XXS09NNL | 9 | 110 | 75 | 1 |
| 13DS-XXS03N2NL | 3.3 | 303 | 65 | 2 |
| 13DS-XXS05N2NL | 5 | 200 | 70 | 2 |
| 13DS-XXS09N2NL | 9 | 110 | 75 | 2 |
| 13DS-XXS12N2NL | 12 | 84 | 78 | 2 |
| 13DS-XXS15N2NL | 15 | 67 | 80 | 2 |
| 13DS-XXS24N2NL | 24 | 42 | 80 | 2 |
| Note 1.”XX” Is Input Voltage:03=3.3Vdc,05=5Vdc,09=9Vdc,12=12Vdc,15=15Vdc. 24=24Vdc 2. 12Vdc/15Vdc/24Vdc input voltage, using the 2nd package. 3. The input voltage increases, there will be an increase in efficiency. | ||||
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Short Term | 1 | Sec | ||
| Line Regulation | For 1.0% OF Vin | 1.2 | % | ||
| Load Regulation | 3.3V (10% To 100% F.L) | 15 | % | ||
| Load Regulation | 5V, 9V (10% To 100% F.L) | 15 & 9.0 | % | ||
| Load Regulation | 12V, 15V, 24V (10% To 100% F.L) | 7.5 & 7.0 | % | ||
| Ripple & Noise | BW = DC To 20MHz | 100 | mVp-p | ||
| Transient Response Setting Time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 3500000 | Hours | ||
| Weight | Package 1/2 | 1.2/1.28 | g | ||
| Dimensions | 12.7 x 7.6 x 6.25 | mm | |||
| Dimensions | 12.8 x 10.8 x 6.9 | mm | |||
Files Download
13DS-Series.pdf
