12DZ Series
YDS
1W 3KV Isolation 2:1 Wide Input Voltage SIP-7 DC to DC Power Converter
2:1 wide input voltages range.
7PIN SIP package.
High efficiency up to 80%.
Regulated output types.
Internal SMD construction.
No external component required.
Operating temperature:-40°C to +85°C.
Industry standard pinout.
| Part Number | Input Voltage | Output Voltage | Output Current | Efficiency |
|---|---|---|---|---|
| Vdc | Vdc | mA | %Typ | |
| 12DZ-05S05R | 4.5-9 | 5 | 200 | 65 |
| 12DZ-05S09R | 4.5-9 | 9 | 112 | 70 |
| 12DZ-05S12R | 4.5-9 | 12 | 84 | 70 |
| 12DZ-05S15R | 4.5-9 | 15 | 67 | 70 |
| 12DZ-05S24R | 4.5-9 | 24 | 42 | 75 |
| 12DZ-12S05R | 9-18 | 5 | 200 | 70 |
| 12DZ-12S09R | 9-18 | 9 | 112 | 72 |
| 12DZ-12S12R | 9-18 | 12 | 84 | 73 |
| 12DZ-12S15R | 9-18 | 15 | 67 | 75 |
| 12DZ-12S24R | 9-18 | 24 | 42 | 80 |
| 12DZ-24S05R | 18-36 | 5 | 200 | 75 |
| 12DZ-24S09R | 18-36 | 9 | 112 | 75 |
| 12DZ-24S12R | 18-36 | 12 | 84 | 78 |
| 12DZ-24S15R | 18-36 | 15 | 67 | 78 |
| 12DZ-24S24R | 18-36 | 24 | 42 | 80 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Vo,Io Nom | 2:1 | |||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 1.5 | % | ||
| Ripple & Noise | Output:5V,9V Types BW=DC To 20MHz | 100 | mAp-p | ||
| Ripple & Noise | Output:12-24V Types BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 1500000 | Hours | ||
| Weight | 2.7 | g | |||

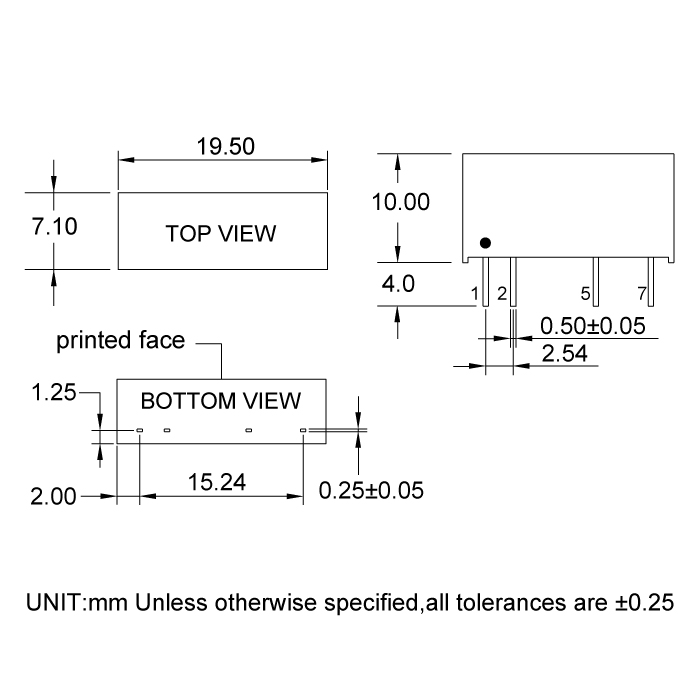

| Dimensions | 19.5 x 7.1 x 10.0 | mm | |||
Files Download
12DZ-Series.pdf
