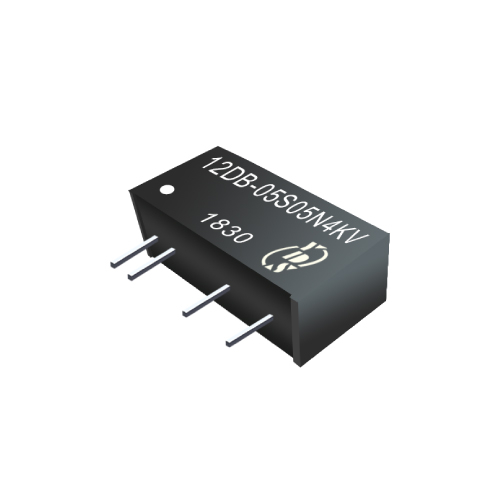

1W 4KV SIP Continuous Protection DC to DC Power Converter
7PIN SIP package.
High efficiency up to 82%.
Output continuous short circuit protection.
Unregulated output types.
Internal SMD construction.
Industry standard pinout.
Operating temperature: -40°C to +105°C.
Specifications Typical At TA = 25°C, Nominal Input Voltage And Rated Output Current Unless Otherwise Specified
| Part Number | Output Voltage | Output Current | Ripple & Noise | Efficiency | |
|---|---|---|---|---|---|
| Vdc | mA | Typ (mVp-p) | Max (mVp-p) | % TYP | |
| 12DB-05S05N4KV | 5 | 200 | 60 | 100 | 80 |
| 12DB-05S09N4KV | 9 | 112 | 60 | 100 | 80 |
| 12DB-05S12N4KV | 12 | 84 | 60 | 100 | 80 |
| 12DB-05S15N4KV | 15 | 67 | 60 | 100 | 80 |
| 12DB-12S05N4KV | 5 | 200 | 60 | 100 | 80 |
| 12DB-12S09N4KV | 9 | 112 | 60 | 100 | 80 |
| 12DB-12S12N4KV | 12 | 84 | 60 | 100 | 82 |
| 12DB-12S15N4KV | 15 | 67 | 60 | 100 | 81 |
| 12DB-15S05N4KV | 5 | 200 | 60 | 100 | 78 |
| 12DB-15S09N4KV | 9 | 112 | 60 | 100 | 79 |
| 12DB-15S12N4KV | 12 | 84 | 60 | 100 | 79 |
| 12DB-15S15N4KV | 15 | 67 | 60 | 100 | 79 |
| 12DB-24S05N4KV | 5 | 200 | 60 | 100 | 77 |
| 12DB-24S09N4KV | 9 | 112 | 60 | 100 | 79 |
| 12DB-24S12N4KV | 12 | 84 | 60 | 100 | 79 |
| 12DB-24S15N4KV | 15 | 67 | 60 | 100 | 79 |
| 12DB-24S24N4KV | 24 | 42 | 60 | 100 | 81 |
| 12DB-05D05N4KV | ± 5 | ± 100 | 60 | 100 | 80 |
| 12DB-05D09N4KV | ± 9 | ± 56 | 60 | 100 | 80 |
| 12DB-05D12N4KV | ± 12 | ± 42 | 60 | 100 | 80 |
| 12DB-05D15N4KV | ± 15 | ± 34 | 60 | 100 | 80 |
| 12DB-12D05N4KV | ± 5 | ± 100 | 60 | 100 | 80 |
| 12DB-12D09N4KV | ± 9 | ± 56 | 60 | 100 | 80 |
| 12DB-12D12N4KV | ± 12 | ± 42 | 60 | 100 | 82 |
| 12DB-12D15N4KV | ± 15 | ± 34 | 60 | 100 | 81 |
| 12DB-15D05N4KV | ± 5 | ± 100 | 60 | 100 | 78 |
| 12DB-15D09N4KV | ± 9 | ± 56 | 60 | 100 | 78 |
| 12DB-15D12N4KV | ± 12 | ± 42 | 60 | 100 | 78 |
| 12DB-15D15N4KV | ± 15 | ± 34 | 60 | 100 | 78 |
| 12DB-24D05N4KV | ± 5 | ± 100 | 60 | 100 | 78 |
| 12DB-24D09N4KV | ± 9 | ± 56 | 60 | 100 | 79 |
| 12DB-24D12N4KV | ± 12 | ± 42 | 60 | 100 | 79 |
| 12DB-24D15N4KV | ± 15 | ± 34 | 60 | 100 | 78 |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 5V, 9V (10% To 100% F.L) | 15 | % | ||
| Load Regulation | 12 ~ 24V (10% To 100% F.L) | 10 | % | ||
| Load Regulation | ± 5V, ± 9V (10% To 100% F.L) | 15 | % | ||
| Load Regulation | ± 12V ~ ± 24V (10% To 100% F.L) | 10 | % |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +105 | ℃ | ||
| Storage Temperature | -55 | +125 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 3500000 | Hours | ||
| Weight | 2.7 | g | |||
| Dimensions | 19.5 x 7.1 x 10.0 | mm | |||
Files Download
12DB-4KV Series.pdf
