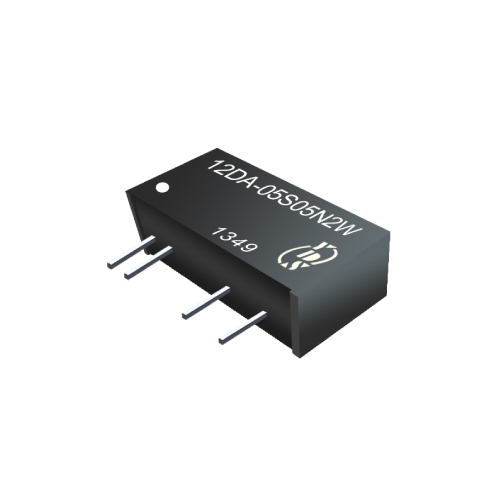

High Efficiency 2W 3KV Isolation SIP Package DC to DC Power Conversion
Features
7PIN SIP package.
High efficiency up to 88%.
Unregulated output types.
Internal SMD construction.
Industry standard pinout.
Operating temperature: -40°C to +85°C.
| Part Number | Output Voltage | Output Current | Ripple & Noise | Efficiency | |
|---|---|---|---|---|---|
| Vdc | mA | Typ (mVp-p) | Max (mVp-p) | % TYP | |
| 12DA-05S05N2W | 5 | 400 | 40 | 60 | 82 |
| 12DA-05S09N2W | 9 | 222 | 40 | 60 | 86 |
| 12DA-05S12N2W | 12 | 167 | 50 | 80 | 87 |
| 12DA-05S15N2W | 15 | 133 | 50 | 80 | 86 |
| 12DA-12S05N2W | 5 | 400 | 40 | 60 | 83 |
| 12DA-12S09N2W | 9 | 222 | 40 | 60 | 87 |
| 12DA-12S12N2W | 12 | 167 | 50 | 80 | 88 |
| 12DA-12S15N2W | 15 | 133 | 50 | 80 | 87 |
| 12DA-15S05N2W | 5 | 400 | 40 | 60 | 84 |
| 12DA-15S09N2W | 9 | 222 | 40 | 60 | 86 |
| 12DA-15S12N2W | 12 | 167 | 50 | 80 | 87 |
| 12DA-15S15N2W | 15 | 133 | 50 | 80 | 88 |
| 12DA-24S05N2W | 5 | 400 | 40 | 60 | 84 |
| 12DA-24S09N2W | 9 | 222 | 40 | 60 | 87 |
| 12DA-24S12N2W | 12 | 167 | 50 | 80 | 87 |
| 12DA-24S15N2W | 15 | 133 | 50 | 80 | 88 |
| 12DA-05D05N2W | ± 5 | ± 200 | 40 | 60 | 82 |
| 12DA-05D09N2W | ± 9 | ± 111 | 40 | 60 | 85 |
| 12DA-05D12N2W | ± 12 | ± 84 | 50 | 80 | 86 |
| 12DA-05D15N2W | ± 15 | ± 67 | 50 | 80 | 86 |
| 12DA-12D05N2W | ± 5 | ± 200 | 40 | 60 | 84 |
| 12DA-12D09N2W | ± 9 | ± 111 | 40 | 60 | 87 |
| 12DA-12D12N2W | ± 12 | ± 84 | 50 | 80 | 87 |
| 12DA-12D15N2W | ± 15 | ± 67 | 50 | 80 | 87 |
| 12DA-15D05N2W | ± 5 | ± 200 | 40 | 60 | 84 |
| 12DA-15D09N2W | ± 9 | ± 111 | 40 | 60 | 86 |
| 12DA-15D12N2W | ± 12 | ± 84 | 50 | 80 | 88 |
| 12DA-15D15N2W | ± 15 | ± 67 | 50 | 80 | 88 |
| 12DA-24D05N2W | ± 5 | ± 200 | 40 | 60 | 85 |
| 12DA-24D09N2W | ± 9 | ± 111 | 40 | 60 | 87 |
| 12DA-24D12N2W | ± 12 | ± 84 | 50 | 80 | 88 |
| 12DA-24D15N2W | ± 15 | ± 67 | 50 | 80 | 88 |
Input Specifications
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Short Term | 1 | Sec | ||
| Line Regulation | For 1.0% OF Vin | 1.2 | % | ||
| Load Regulation | 5V, 9V (10% To 100% F.L) | 10 | % | ||
| Load Regulation | 12V, 15V (10% To 100% F.L) | 7 | % | ||
| Load Regulation | ± 5V, ± 9V (10% To 100% F.L) | 9 | % | ||
| Load Regulation | ± 12V, ± 15V (10% To 100% F.L) | 6 | % |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 3500000 | Hours | ||
| Weight | 2.7 | g | |||
| Dimensions | 19.5 x 7.1 x 10.0 | mm | |||
Files Download
12DA-2W-Series.pdf
Certification
