12D1M-2W Series
YDS
7PIN SIP package.
High efficiency up to 84%.
Reinforced insulation.
The patient leakage current: Max 2μA.
Unregulated output types.
Internal SMD construction.
Industry standard pinout.
Operating temperature:-40°C to +85°C.
Medical EMC standard of EMI EN 60601-1:2006+A1:2013 approved.
Medical EMC standard of EMS EN 60601-1-2:2015 approved.
| Part Number | Output Voltage | Output Current | Efficiency | Max. Capacitive Load(Note) |
|---|---|---|---|---|
| Vdc | mA | %Min/Typ | uF | |
| 12D1M-05S05N2W | 5 | 400 | 73/77 | 1000 |
| 12D1M-05S12N2W | 12 | 167 | 75/79 | 470 |
| 12D1M-05S15N2W | 15 | 133 | 75/79 | 470 |
| 12D1M-12S05N2W | 5 | 400 | 73/77 | 1000 |
| 12D1M-12S12N2W | 12 | 167 | 76/80 | 470 |
| 12D1M-12S15N2W | 15 | 133 | 78/82 | 470 |
| 12D1M-24S05N2W | 5 | 400 | 75/79 | 1000 |
| 12D1M-24S12N2W | 12 | 167 | 78/82 | 470 |
| 12D1M-24S15N2W | 15 | 133 | 80/84 | 470 |
| 12D1M-05D05N2W | ± 5 | ± 200 | 74/78 | 470 |
| 12D1M-05D09N2W | ± 9 | ± 111 | 74/78 | 470 |
| 12D1M-05D12N2W | ± 12 | ± 84 | 74/78 | 220 |
| 12D1M-05D15N2W | ± 15 | ± 67 | 76/80 | 220 |
| 12D1M-12D05N2W | ± 5 | ± 200 | 74/78 | 470 |
| 12D1M-12D09N2W | ± 9 | ± 111 | 78/82 | 470 |
| 12D1M-12D12N2W | ± 12 | ± 84 | 78/82 | 220 |
| 12D1M-12D15N2W | ± 15 | ± 67 | 76/80 | 220 |
| 12D1M-24D05N2W | ± 5 | ± 200 | 75/79 | 470 |
| 12D1M-24D09N2W | ± 9 | ± 111 | 77/81 | 470 |
| 12D1M-24D12N2W | ± 12 | ± 84 | 78/82 | 220 |
| 12D1M-24D15N2W | ± 15 | ± 67 | 77/81 | 220 |
Note:
The capacitive loads of positive and negative outputs are identical.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Types | Vo, Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Line Regulation | For 1.0% OF Vin | 1.2 | % | ||
| Load Regulation | 5V (10% To 100% F.L) | 20 | % | ||
| Load Regulation | 9V(10% To 100% F.L) | 15 | % | ||
| Load Regulation | 12V (10% To 100% F.L) | 15 | % | ||
| Load Regulation | 15V(10% To 100% F.L) | 15 | % | ||
| Ripple & Noise | 20MHz bandwidth | 100 | 150 | mVp-p | |
| Output Short Circuit | (NOTE) | 3 | s |
Note:
Supply voltage must be discontinued at the end of short circuit duration which less than 3s.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Isolation Capacitance | Input-output, 100KHz/0.1V | 5 | pF | ||
| Switching Frequency | Full load,nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Storage Temperature | -55 | +125 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Transformer Creepage | 5 | mm | |||
| Transformer Clearance | 5 | mm | |||
| PCB Creepage & Clearance | 5.5 | mm | |||
| Case material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 3500000 | Hours | ||
| Weight | 4.0 | g | |||

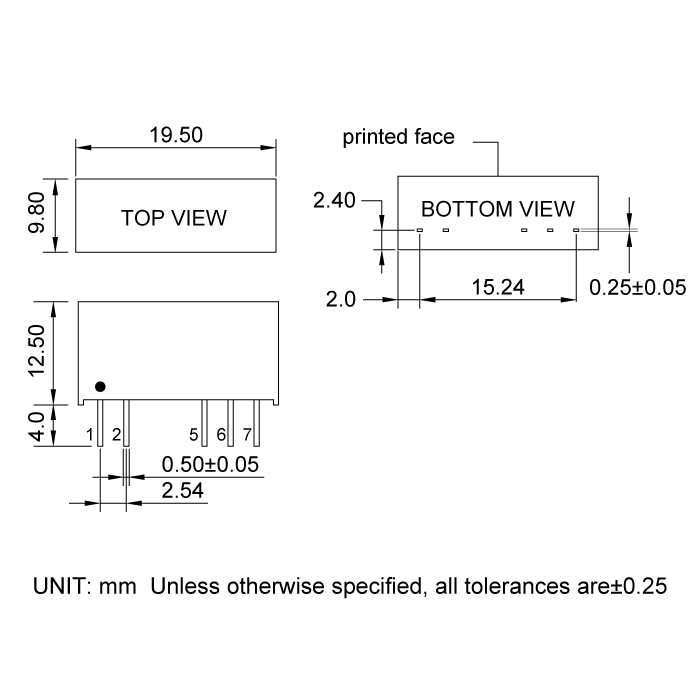

| Dimensions | 19.5 x 9.8 x 12.5 | mm | |||
Files Download
12D1M-2W-Series.pdf
