12D-R Series
YDS
1W 3KV Isolation SIP Regulated Output DC-DC Converter
7PIN SIP package.
High efficiency up to 80%.
Regulated output types.
Internal SMD construction.
No external component required.
Industry standard pinout.
Operating temperature:-40°C to +85°C.
| Part Number | Output Voltage | Output Current | Efficiency |
|---|---|---|---|
| Vdc | mA | % TYP | |
| 12D-XXS03RNL | 3.3 | 303 | 65 |
| 12D-XXS05RNL | 5 | 200 | 65 |
| 12D-XXS09RNL | 9 | 112 | 70 |
| 12D-XXS12RNL | 12 | 84 | 70 |
| 12D-XXS15RNL | 15 | 67 | 70 |
| 12D-XXS24RNL | 24 | 42 | 70 |
Note:
1. ”XX” Is Input Voltage:03=3.3Vdc, 05=5Vdc, 09=9Vdc 12=12Vdc,15=15Vdc,24=24Vdc.
2. The input voltage increases, there will be an increase in efficiency.
3. Input 3.3V, then output will be 12V MAX;Output 3.3V, then input will be 12V MAX.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo, Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Continuous | ||||
| Line Regulation | Regulated | ± 0.5 | % | ||
| Load Regulation | Regulated | ± 1.5 | % | ||
| Ripple & Noise | Output:5V,9V Types BW=DC To 20MHz | 100 | mVp-p | ||
| Ripple & Noise | Output:12-24V Types BW=DC To 20MHz | 1% of Vout | mVp-p | ||
| Transient Response Setting Time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| align="center" Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 100 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 1500000 | Hours | ||
| Weight | 2.7 | g | |||

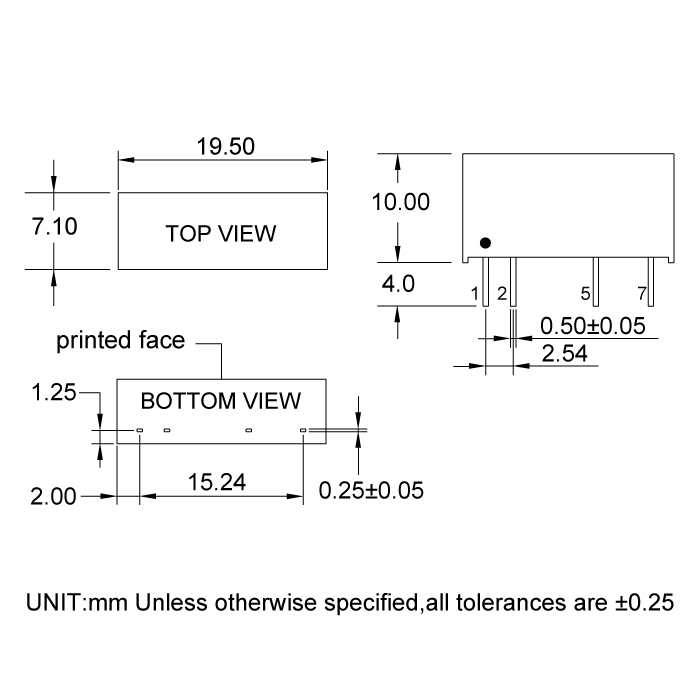

| Dimensions | 19.5 x 7.1 x 10.0 | mm | |||
Files Download
12D-R-Series.pdf
