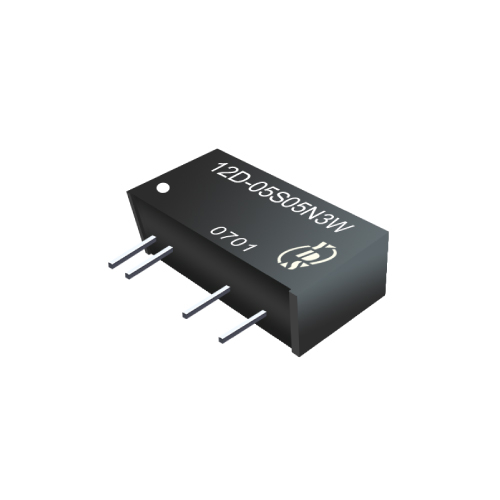

3W 3KV Isolation SIP-7 DC to DC Power Converter
Features
7PIN SIP package.
High efficiency up to 87%.
Unregulated output types.
Internal SMD construction.
No external component required.
Industry standard pinout.
Operating temperature:-40°C to +85°C.
Recognized by UL 60950-1.
| Part Number | Output Voltage | Output Current | Efficiency |
|---|---|---|---|
| Vdc | mA | %Typ | |
| 12D-XXS05N3W | 5 | 600 | 82 |
| 12D-XXS09N3W | 9 | 333 | 85 |
| 12D-XXS12N3W | 12 | 250 | 85 |
| 12D-XXS15N3W | 15 | 200 | 85 |
| 12D-XXD05N3W | ±5 | ±300 | 82 |
| 12D-XXD09N3W | ±9 | ±167 | 85 |
| 12D-XXD12N3W | ±12 | ±125 | 82 |
| 12D-XXD15N3W | ±15 | ±100 | 85 |
Note:
1.”XX” Is Input Voltage: 05=5Vdc,12=12Vdc,15=15Vdc,24=24Vdc.
2. The input voltage increases, there will be an increase in efficiency.
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | Vo,Io Nom | ± 10 | % | ||
| Filter | Capacitor |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Voltage Tolerance | 100% full load | ± 5 | % | ||
| Short Circuit Protection | Short Term | 1 | Sec | ||
| Line Regulation | For 1.0% of Vin | 1.2 | % | ||
| Load Regulation | 5V (10% To 100% F.L) | 15 | % | ||
| Load Regulation | 9V,12V,15V (10% To 100% F.L) | 10 | % | ||
| Ripple & Noise | BW=DC To 20MHz | 100 | mVp-p | ||
| Transient response setting time | 50% load step change | 350 | us |
| Parameters | Conditions | Min | Typ | Max | Units |
|---|---|---|---|---|---|
| Isolation Resistance | 500Vdc | 1000 | MΩ | ||
| Switching Frequency | Full load, nominal input | 60 | KHz | ||
| Operating Temperature | -40 | +85 | ℃ | ||
| Humidity | Non Condensing | 95 | % | ||
| Cooling | Free air Convection | ||||
| Case Material | DAP | ||||
| MTBF | MIL-HDBK-217F @25℃ | 3500000 | Hours | ||
| Weight | 2.7 | g | |||
| Dimensions | 19.5 x 7.1 x 10.0 | mm | |||
Files Download
12D-3W-Series.pdf
Certification
