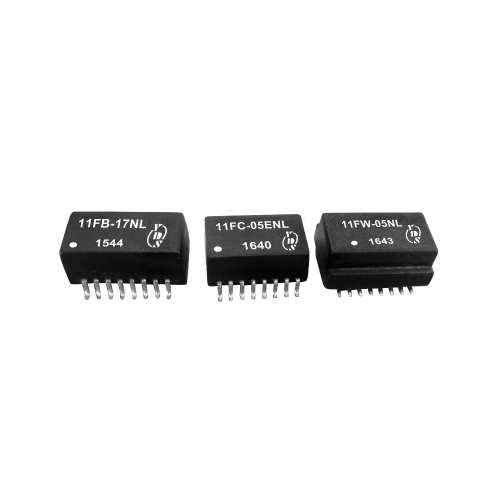

11FB series
YDS
10/100 Base-T Single Port Internet Filter
Meet IEEE 802.3 and ANSI X3.263 standards including 350 uH OCL with 8mA Bias.
Designed to withstand IR reflow temperatures up to 240°C.
Compact footprint use in the most space restrictive applications.

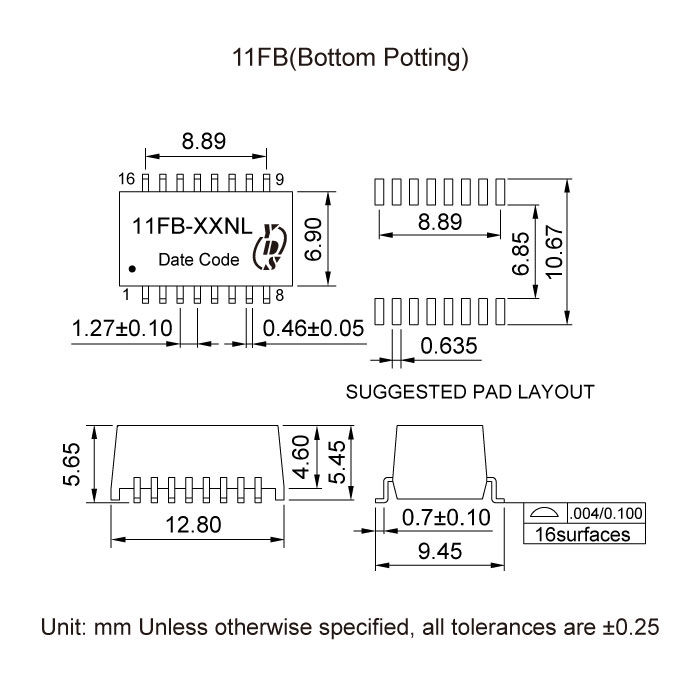

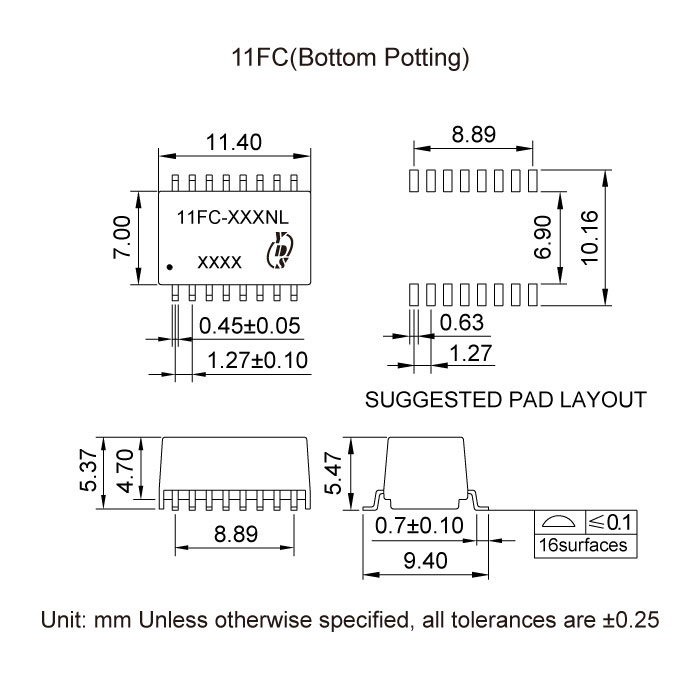

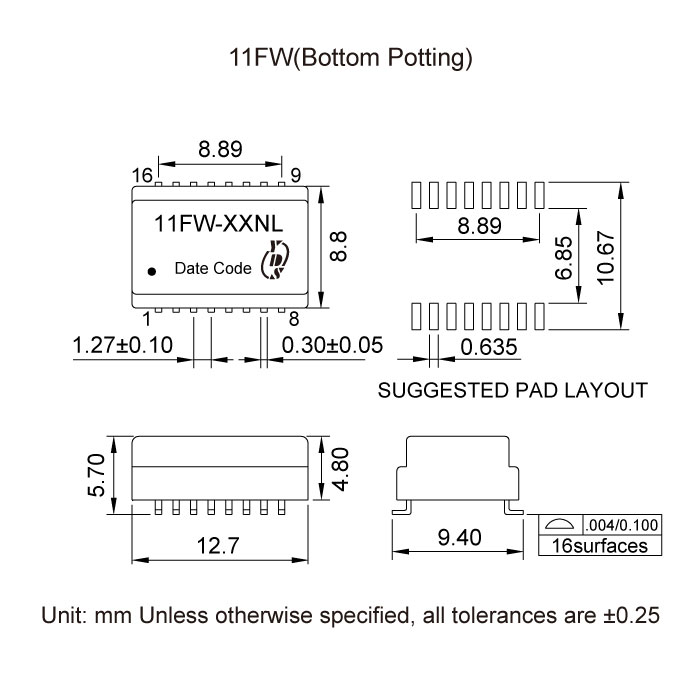

| Part Number | Turns Ratio (±5%) | Insertion Loss (dB MAX) | Return Loss (dB TYP) | Differential to Common Mode Rejection (dB MIN) | Crosstalk (dB TYP) | Hipot (Vrms) MIN | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TX | RX | 1-100 MHz | 30 MHz | 60 MHz | 80 MHz | 30 MHz | 50 MHz | 100 MHz | 30 MHz | 60 MHz | 100 MHz | ||
| 11FB-05NL | 1CT:1CT | 1CT:1CT | -1.0 | -16 | -10 | -10 | -40 | -37 | -33 | -45 | -40 | -30 | 1500 |
| 11FC-09NL | 1CT:1CT | 1CT:1CT | -1.0 | -18 | -14 | -12 | -40 | -40 | -40 | -35 | -35 | -35 | 1500 |
| 11FW-05NL | 1CT:1CT | 1CT:1CT | -1.1 | -18 | -15 | -13 | - | - | - | - | - | -35 | 1500 |
