500mW Pulse General Purpose Electronic Transformer
Recognized by UL 60950-1.
Inductance ----------------- 100KHz/20mV.
Leakage Inductance --------- 100KHz/0.2V.
Interwinding Capacitance --- 100KHz/0.2V.

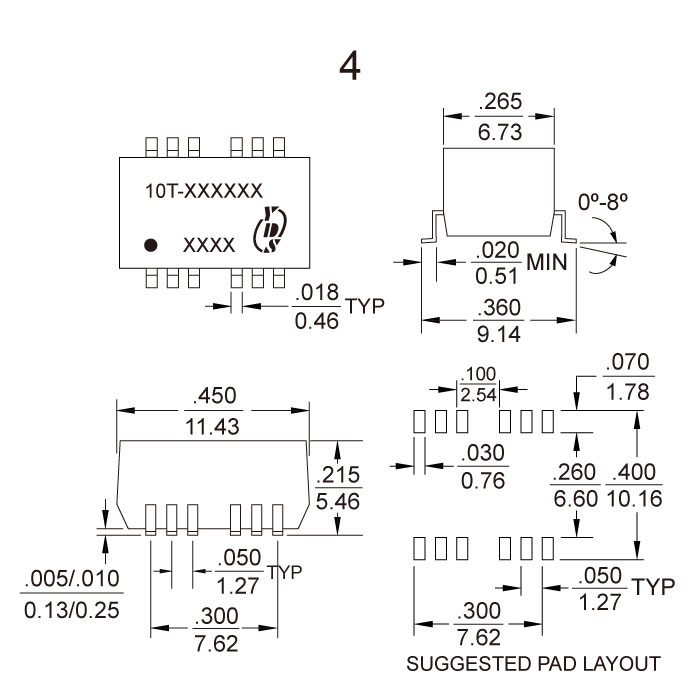

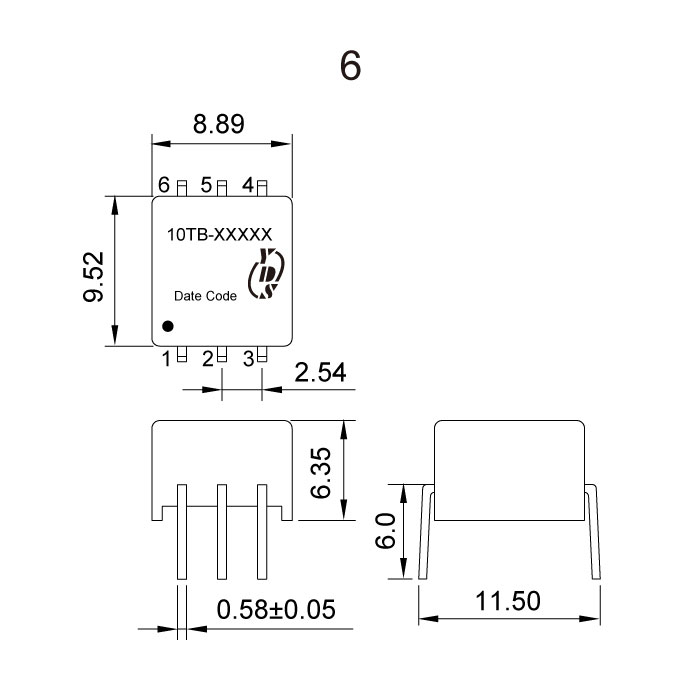

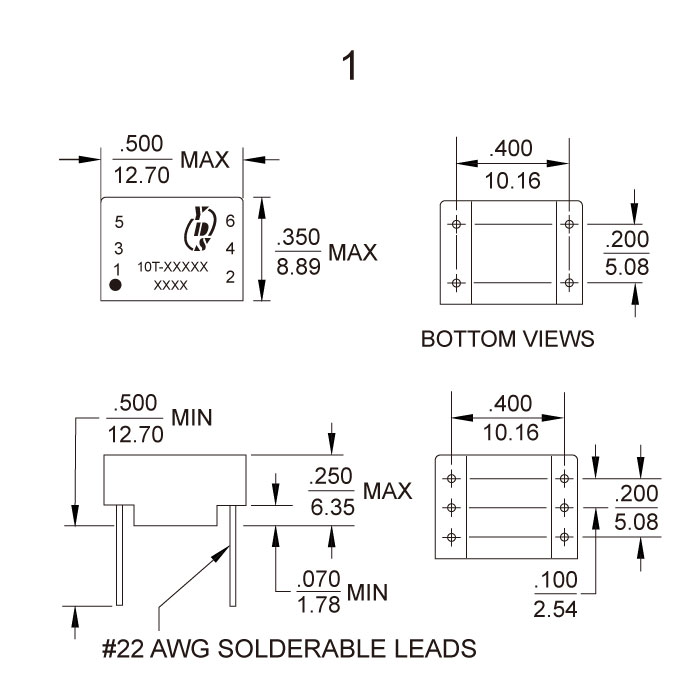

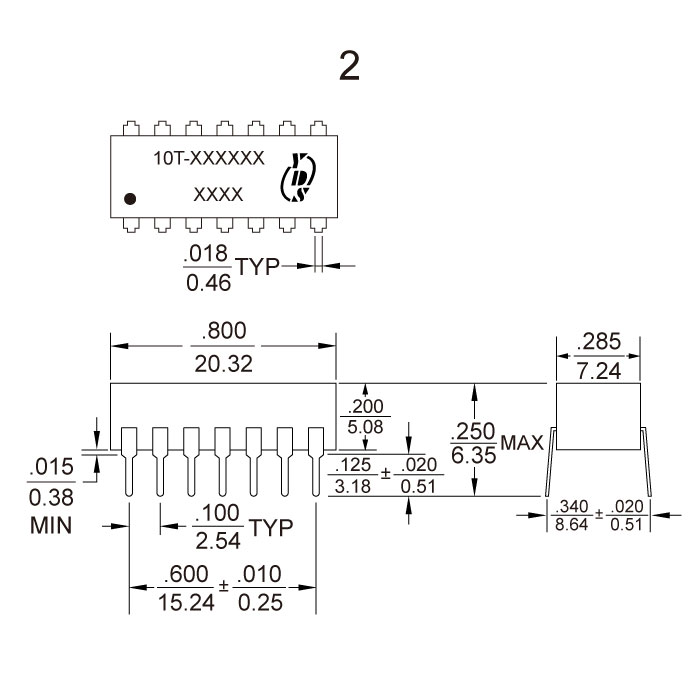

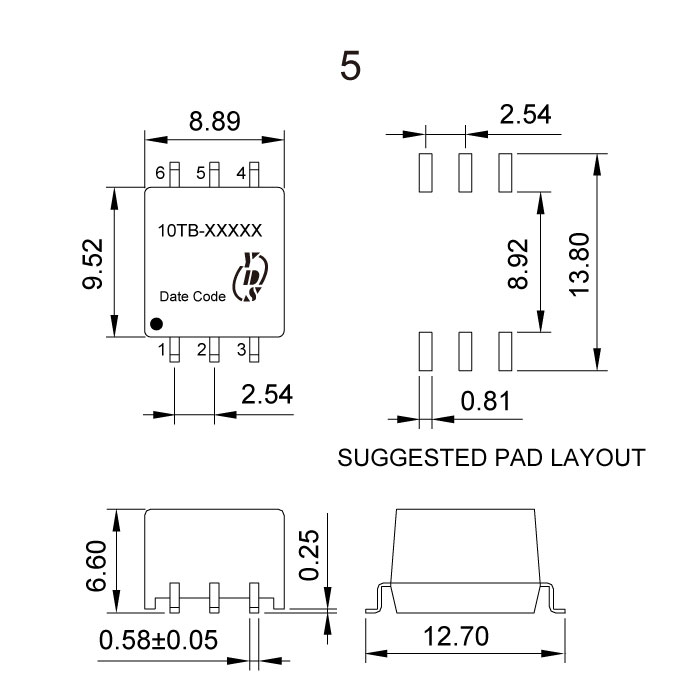

| Part Number | Turns Ratio (±5%) | Primary Sine Wave OCL (mH Min) | Primary ET-Constant (V-μsec) min | Rise Time (nsec) max | Pri/Sec Cww (pF Max) | Leakage Inductance Pri/Sec (μH Max) |
|---|---|---|---|---|---|---|
| 10T-50211ANL | 1:1:1 | 5.0 | 25.0 | 10.5 | 70 | 1.3 |
| 10T-20211ANL | 1:1:1 | 2.0 | 16.0 | 8.2 | 37 | 0.8 |
| 10T-85012DNL | 1:1:1 dual | .085 | 2.5 | 3.0 | 9.5 | 0.2 |
| 10T-50221ANL | 1:1:1 | 5.0 | 25.0 | 10.5 | 60 | 1.3 |
| 10T-20221ANL | 1:1:1 | 2.0 | 16.0 | 11.0 | 19 | 1.8 |
| Part Number | DCR Primary (Ω Max) | DCR Secondary (Ω Max) | DCR Tertiary (Ω Max) | Hi Pot Vrms |
|---|---|---|---|---|
| 10T-50211ANL | 3.9 | 3.9 | 3.9 | 500 |
| 10T-20211ANL | 2.5 | 2.5 | 2.5 | 500 |
| 10T-85012DNL | 0.20 | - | - | 500 |
| 10T-50221ANL | 3.9 | 3.9 | 3.9 | 500 |
| 10T-20221ANL | 2.5 | 1.4 | 1.4 | 500 |
Files Download
10T Series.pdf
Certification
